JST XA Series Right Angle Through Hole PCB Header, 2 Contacts, 2.5 mm Pitch, 1 Row, Shrouded S02B-XASS-1 (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

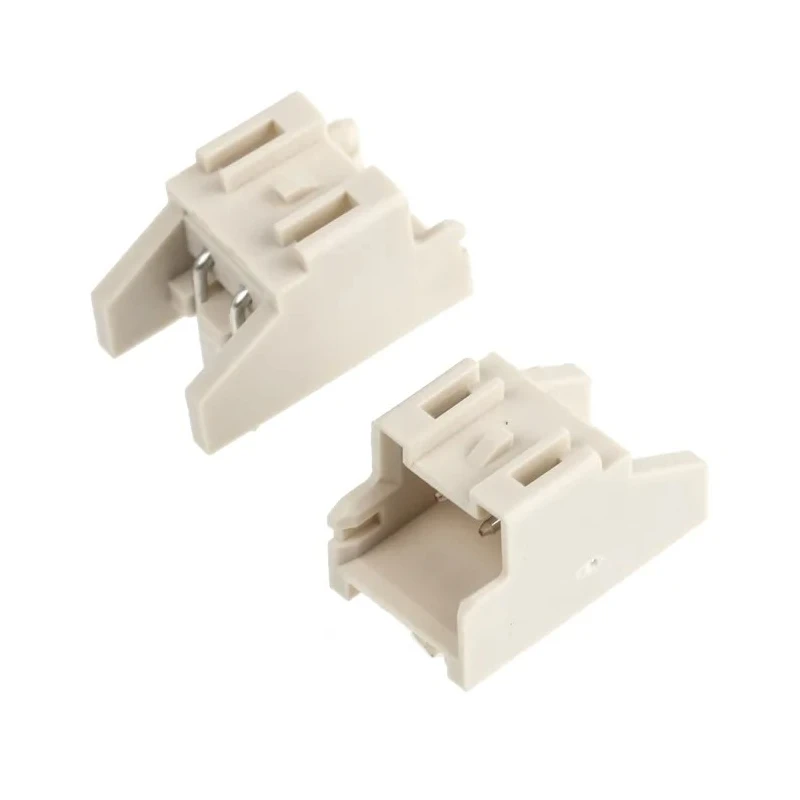

JST XA Series Right Angle Through Hole PCB Header, 2 Contacts, 2.5 mm Pitch, 1 Row, Shrouded S02B-XASS-1 (LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S02B-XASS-1 (LF)(SN)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	XA
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.2mm

Key Features

Constructed from glass filled PA66 nylon housing to prevent solder cracking.
Features locking ramp device for secure connection and vibration resistance.
Incorporates insertion guides and polarization bosses for easy insertion and accurate alignment.
Contact material is copper alloy with tin plating for reliable electrical performance.
Rated for 3A current and 250V operating voltage up to 85°C maximum temperature.
Tail pin length measures 3.2mm ensuring proper solder connection.
Connector type is male with through hole mount for PCB applications.
Designed for industrial, electronic assembly, and manufacturing applications.

Product Description

JST S02B-XASS-1 (LF)(SN) Right Angle Through Hole PCB Header is a high-quality, shrouded 2 contact wire-to-board connector with a 2.5 mm pitch and single row configuration. It is manufactured with a glass filled PA66 nylon housing that effectively reduces solder cracking issues during PCB assembly.

This XA series 90° side-entry header includes a locking ramp device that provides a secure connection to the mating connector and prevents disconnection caused by vibrations or handling during assembly processes. The housing also features insertion guides and polarization bosses to facilitate easy, accurate insertion and alignment on the PCB.

The contacts are made from copper alloy with tin plating ensuring consistent electrical conductivity and durability. This connector is rated for a current of 3A and a maximum operating voltage of 250V, and it operates reliably within a temperature range from -25°C to 85°C.

The through hole mount type and male contact gender, combined with a 3.2 mm tail pin length, are optimized for solder termination on printed circuit boards. The shrouded design offers additional protection and improves connector reliability in demanding industrial, electronic manufacturing, and assembly environments.

Constructed from glass filled PA66 nylon housing to prevent solder cracking. Features locking ramp device for secure connection and vibration resistance. Incorporates insertion guides and polarization bosses for easy insertion and alignment.

Contact material is copper alloy with tin plating for enhanced conductivity. Rated for 3A current and 250V voltage up to 85°C. Tail pin length of 3.2 mm for stable solder connections. Through hole mount type with male contact gender suitable for PCB applications.

Ideal for industrial, electronic assembly, and manufacturing use cases.

Originating from Japan, this component maintains quality standards suitable for complex electronics, construction, and manufacturing industries. Explore EnvMart's collection of PCB Headers and electronic components for comprehensive solutions.
