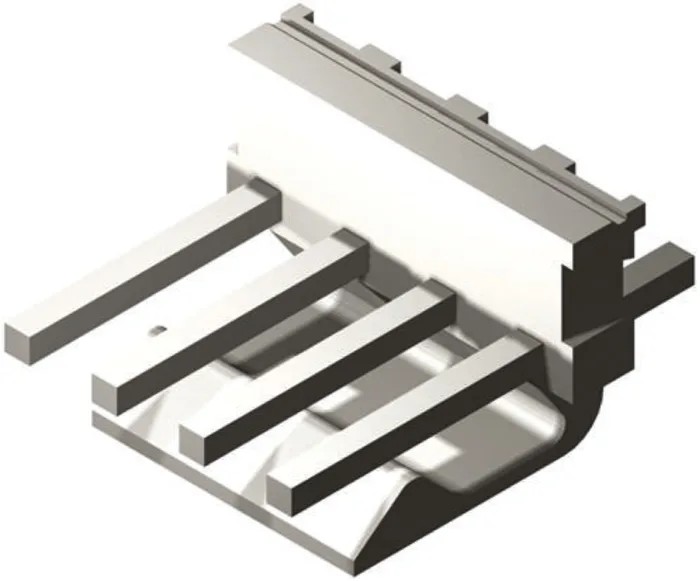

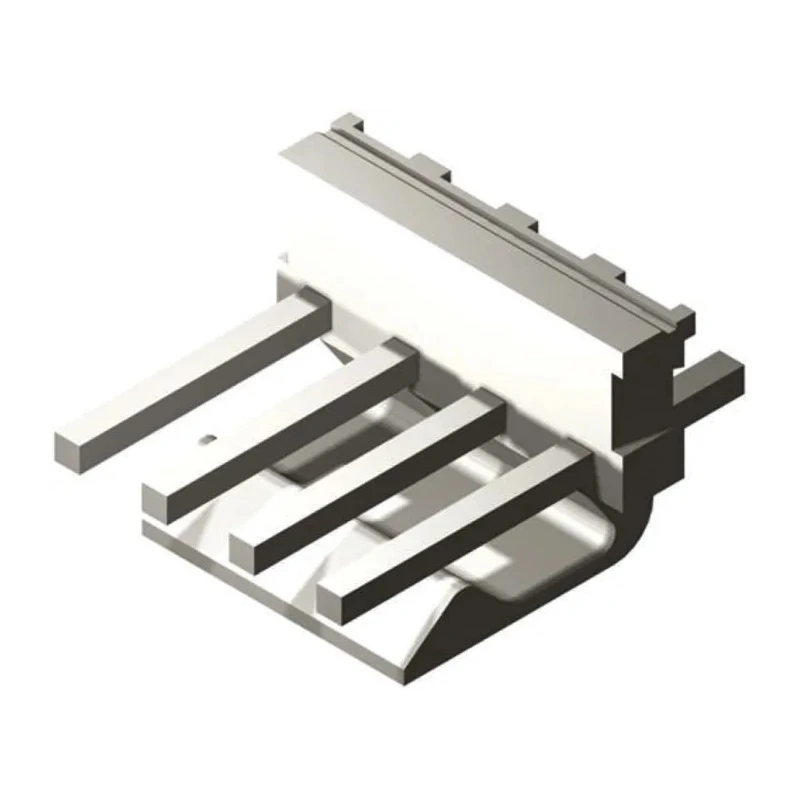

Molex KK 396 Series Straight Through Hole Pin Header, 3 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 26-61-4030
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | KK 396 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.56mm |
Key Features
- The connector features brass contacts plated with tin for reliable conductivity.
- It has a pitch and row spacing of 3.96 mm suited for precision PCB mounting.
- The housing is molded from durable polyester material to withstand industrial use.
- The pin header supports a current rating of 7 Amperes and operates up to 250 Volts.
- The termination type is solder with straight orientation and a tail pin length of 3.56 mm.
- It is designed for through-hole mounting to ensure a strong mechanical and electrical bond.
- The product operates reliably from -40°C to a maximum of 105°C.
- This unshrouded header mates with Molex 2139, 3069, 6442, and 41695 Series housings and 2145 and 41815 Series PCB connectors.
Product Description
Molex 26-61-4030 KK 396 Series Straight Through Hole Pin Header is a precision 3-contact pin header with a 3.96 mm pitch and a single row of contacts. It features brass contacts with tin plating, offering high conductivity and resistance to corrosion, embedded in a sturdy polyester housing that ensures durability in industrial environments.
The pin header is designed for wire-to-board connections using through-hole mounting technology, providing a secure mechanical lock and reliable solder termination. With a current rating of 7 Amperes and a voltage rating of 250 Volts, it is suitable for a wide range of electronic applications requiring robust power delivery and signal integrity.
The tail pin length of 3.56 mm allows easy insertion into PCB boards, and the straight orientation assists in streamlined assembly and integration. Its operating temperature range from -40°C to 105°C makes it fit for various conditions encountered in manufacturing, industrial controls, and automation.
This unshrouded header is compatible with several Molex series housings, including 2139, 3069, 6442, and 41695, as well as 2145 and 41815 Series PCB connectors, providing versatile assembly options in electronic systems.
The component is manufactured in Mexico and designed to meet demanding industrial standards to ensure dependable performance in electronic connectors and interfaces. The connector features brass contacts plated with tin for reliable conductivity.
It has a pitch and row spacing of 3.96 mm suited for precision PCB mounting. The housing is molded from durable polyester material to withstand industrial use. The pin header supports a current rating of 7 Amperes and operates up to 250 Volts.
The termination type is solder with straight orientation and a tail pin length of 3.56 mm. It is designed for through-hole mounting to ensure a strong mechanical and electrical bond. The product operates reliably from -40°C to a maximum of 105°C.
This unshrouded header mates with Molex 2139, 3069, 6442, and 41695 Series housings and 2145 and 41815 Series PCB connectors. Manufactured in Mexico, it meets typical industrial quality standards though no formal certifications are specified.
This Molex KK 396 Series pin header is ideal for industrial, manufacturing, electronic assembly, and PCB fabrication applications requiring dependable wire-to-board connectivity. Explore further related PCB Headers and connectors in EnvMart’s Electronics & Electricals category for comprehensive component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 7 Amperes.
It operates at a voltage rating of up to 250 Volts.
The contact pitch is 3.96 mm, suitable for precision PCB mounting.
This unit is designed for through-hole mounting, ensuring a strong mechanical and electrical bond.
The contacts are made of brass with tin plating, and the housing is molded from durable polyester material.
The tail pin length is 3.56 mm, allowing for easy insertion into PCB boards.
It operates reliably within a temperature range of -40°C to 105°C.
This unshrouded header mates with Molex 2139, 3069, 6442, and 41695 Series housings, as well as 2145 and 41815 Series PCB connectors.
It features 3 contacts in a single row configuration.
The termination type is solder with a straight orientation.
It is manufactured in Mexico.
This model supports a wire-to-board connector system.
