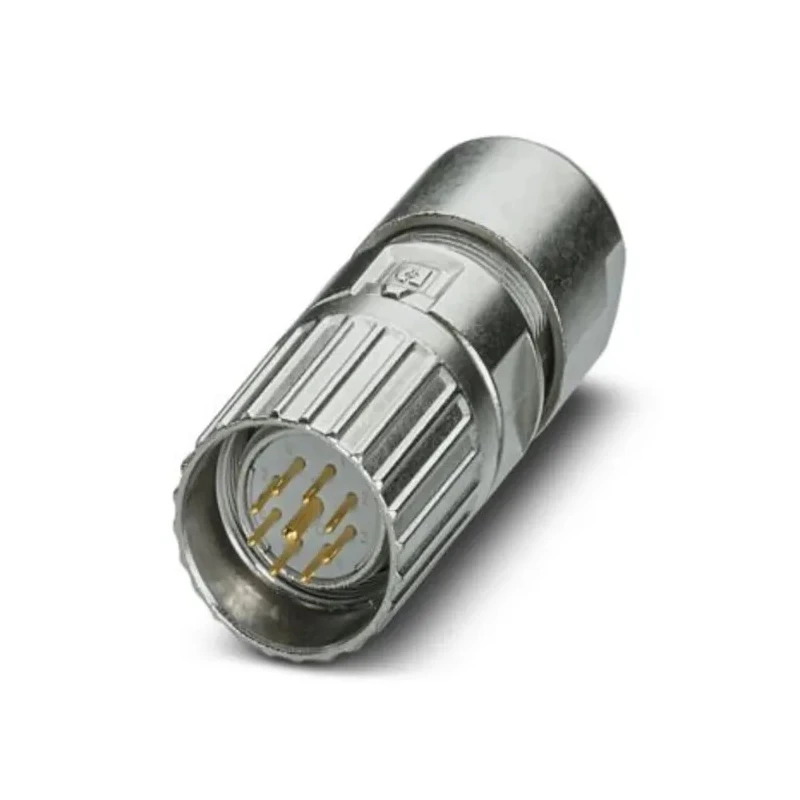

Phoenix Contact Circular Connector, Cable Mount, 9 Contacts, M23 Male Plug, IP66/IP68/IP69K, 20A, 300V, Crimp 1629216

Phoenix Contact model 1629216 is a high-performance circular connector engineered for cable mounting in industrial automation and electrical systems. This connector utilizes the M23 interface, offering 9 contact positions and a robust design optimized for both mechanical and environmental reliability.

The connector is rated for a maximum current of 20A and voltage of 300V, making it suitable for connection of power circuits, sensors, and actuators in challenging environments. The crimp termination ensures stable electrical contact, while the straight plug layout facilitates easy integration with cable harnesses.

Its male plug configuration is compatible with corresponding socket interfaces, supporting a variety of cable diameter ranges. High-level ingress protection - IP66, IP68, and IP69K - guarantees operation in outdoor or wet areas and ensures resistance to water jets, dust, and temporary immersion.

Constructed from gadolinium zinc alloy, the housing delivers mechanical strength and corrosion resistance. The connector operates reliably across extreme temperature variations, from -40°C up to 105°C, allowing deployment in both indoor and outdoor industrial settings.

Additional features include shielded construction to minimize EMI/RFI interference, a secure screw lock mechanism, and compliance to RoHS standards for environmental safety.

Typical applications encompass automation control systems, electrical and mechanical equipment, and industrial machinery requiring secure, high-current connections. This connector is ideal for environments exposed to water, dust, or other harsh elements, and is widely used in manufacturing, process control, and outdoor electrical installations.

Cable-mounted M23 connector with straight orientation and crimp termination. Features 9 contact pins with male gender for versatile industrial applications. Supports high currents up to 20A and voltages up to 300V. Provides robust protection against water and dust with IP66, IP68, and IP69K ratings.

Constructed from gadolinium zinc alloy for enhanced durability and resistance. Operates across a wide temperature range from -40°C to 105°C. Shielded design reduces signal interference for secure connectivity. Screw lock mechanism ensures firm and reliable cable attachment.

Compliant with RoHS standards, featuring lead-free components.
