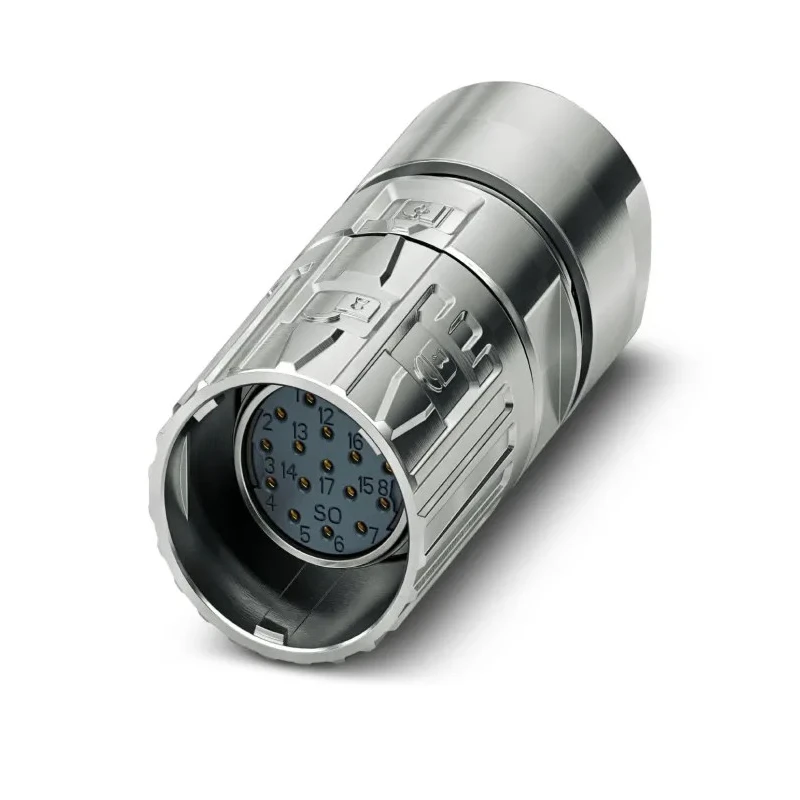

Phoenix Contact M23 Circular Cable Connector, Socket, Female, 17 Contacts, 8A, IP66/IP68, Crimp, 125V, 27mm, Zinc 1629156
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125.0V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 8A |
| Model | 1629156 |
| IP Rating | IP66, IP68 |
| Mount Type | Cable |
| Housing Material | Zinc |
| Series | M23 PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Locking system | ONECLICK Fast Locking |
| Standards/Approvals | None stated |
| Pole Format | 17 |
| Number of Contacts | 17 |
| Contact Gender | Female |
| Shell Size | 27 mm |
| Mating Type | Lock |
| Connector Size | M23 |
| Plug/Socket | Socket |
| Coding | N |
| Cable connector, straight, shielded | yes, ONECLICK fast locking system, M23, No. of pos.: 17, type of contact: Socket, Crimp connection, cable diameter range: 3 mm ... 15 mm |
Key Features
- Features 17 female contacts for versatile multi-wire connections.
- Supports crimp termination for reliable wire attachment.
- Offers a straight orientation and M23 socket format for streamlined cable installations.
- Withstands harsh environments with IP66 and IP68 protection ratings.
- Durable zinc housing ensures mechanical robustness and longevity.
- Rated for up to 8A current and 125V voltage, suitable for demanding automation and power applications.
- ONECLICK fast locking mechanism for secure and repeatable assembly.
- Accommodates a wide cable diameter range from 3 mm to 15 mm.
Product Description
The Phoenix Contact 1629156 M23 PRO series circular connector is a high-performance socket connector specifically designed for demanding industrial, automation, and power distribution environments. This connector is engineered with 17 contacts in a female socket configuration, enabling dense multi-wire terminations for complex wiring systems.
Constructed with a robust zinc housing and a shielded, straight body format, the 1629156 model delivers excellent durability and resistance to mechanical stress. It incorporates a crimp termination style to ensure reliable and secure wire connections, while the M23 PRO series' ONECLICK fast locking system facilitates quick, repeatable, and secure mating, reducing installation time and improving serviceability.
The connector accommodates cable diameters from 3 mm to 15 mm, making it adaptable to a wide range of industrial cabling requirements. Its IP66 and IP68 protection ratings provide exceptional resistance against dust ingress and prolonged water immersion, making it suitable for both indoor factory automation and outdoor environments exposed to challenging weather conditions.
Rated to handle currents up to 8 amperes and operating voltages up to 125 volts, this connector can be confidently used in power supply, signal transmission, robotics, motor controls, and process automation systems. The straight form factor provides streamlined routing, and the female crimp contacts are suitable for standard industrial wiring practices.
With an operating temperature range from -40°C to 105°C, the Phoenix Contact 1629156 model is designed for reliable performance in environments subject to considerable thermal variation. The 27 mm shell size ensures compatibility with standard M23 panel cutouts and mating connectors within the M23 PRO series.
Typical industry applications include factory automation, robotics, industrial machinery, power distribution boxes, and process control panels. Its German engineering and compliance with high protection ratings ensure long-term reliability, even under rigorous use in harsh or vibration-prone locations.
For professionals seeking a field-proven circular connector with flexible installation options, robust mechanical performance, and secure environmental sealing, the Phoenix Contact 1629156 offers a dependable solution for critical connectivity tasks.
Browse more connectors and industrial connectivity solutions from Phoenix Contact in the EnvMart electronics category.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 8A and a voltage of 125V, making it suitable for various power and automation applications.
It has an IP66 and IP68 rating, providing excellent protection against dust ingress and prolonged water immersion.
It accommodates cable diameters ranging from 3 mm to 15 mm, allowing for flexibility in installation.
This connector utilizes a crimp termination style, ensuring reliable and secure wire connections.
It operates effectively within a temperature range of -40°C to 105°C, suitable for environments with significant thermal variation.
The shell size of this connector is 27 mm, ensuring compatibility with standard M23 panel cutouts and mating connectors.
It features 17 female contacts, allowing for versatile multi-wire connections in complex wiring systems.
It incorporates the ONECLICK fast locking system, which facilitates quick and secure mating, enhancing serviceability.
The housing is made of zinc, providing mechanical robustness and longevity in demanding environments.
Typical applications include factory automation, robotics, industrial machinery, power distribution boxes, and process control panels.
There are no specific standards or approvals stated for this model.
This connector has a straight orientation, which aids in streamlined cable installations.
