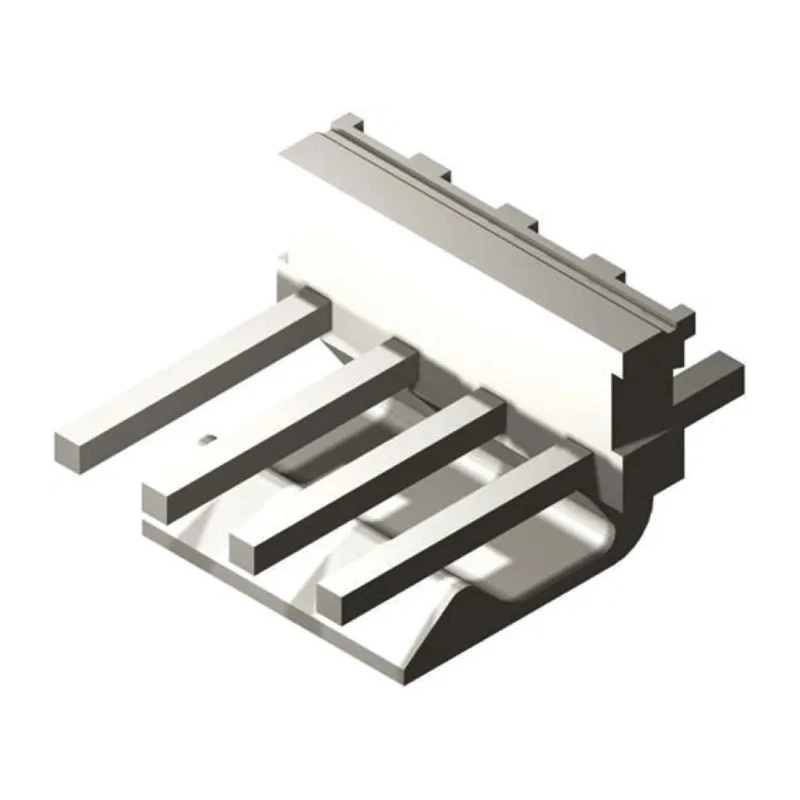

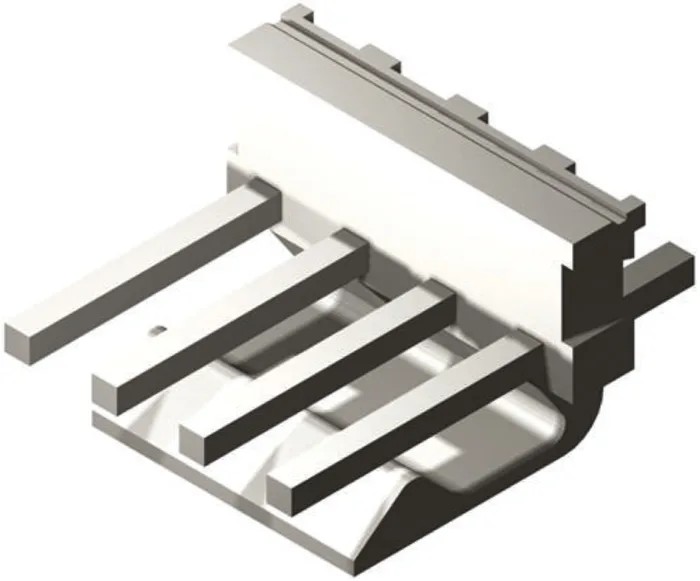

Molex KK 396 Series Straight Through Hole Pin Header 5 Contacts 3.96 mm Pitch 1 Row Unshrouded 26-61-4050
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | KK 396 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.56mm |
Key Features
- The pin header features 5 male brass contacts plated with tin for reliable electrical connectivity.
- Utilizes a wire-to-board connector system mounted through hole for PCB integration.
- Constructed with a polyester housing material providing durability and temperature resistance.
- Rated for 7A current and 250V voltage with operating temperatures ranging from -40°C to 105°C.
- Offers a tail pin length of 3.56 mm suitable for solder termination.
- Designed with a straight orientation and unshrouded for versatile PCB housing compatibility.
- Compatible with multiple Molex series housings and PC board connectors ensuring system flexibility.
- Ideal for use in electronic assemblies requiring precise and durable pin header connections.
Product Description
Molex 26-61-4050 KK 396 Series Straight Through Hole Pin Header is a wire-to-board connector designed for electronic and electrical applications. This component features 5 male pins arranged in a single row with a 3.96 mm pitch, optimized for PCB integration through a through-hole mount type.
The contacts are made of brass with tin plating, ensuring high conductivity and corrosion resistance under demanding conditions. The polyester housing supports operational stability within a temperature range of -40°C to 105°C, suitable for industrial and commercial electronic assemblies.
Rated for 7A current and 250V voltage, this pin header is engineered to maintain reliable signal integrity and power transmission. The 3.56 mm tail pin length allows for secure solder termination on PCBs, facilitating efficient manufacturing processes.
This unshrouded header is compatible with various Molex housing and connector series, including 2139, 3069, 6442, and 41695 as well as PC board connectors 2145 and 41815. This compatibility enables flexibility when designing and repairing electronic circuits.
The straight orientation and wire-to-board connector system make it ideal for vertical header applications in industrial controls, consumer electronics, telecommunications, and automotive electronics where durable, easy-to-install connectors are necessary.
The pin header features 5 male brass contacts plated with tin for reliable electrical connectivity. Utilizes a wire-to-board connector system mounted through hole for PCB integration. Constructed with a polyester housing material providing durability and temperature resistance.
Rated for 7A current and 250V voltage with operating temperatures ranging from -40°C to 105°C. Offers a tail pin length of 3.56 mm suitable for solder termination. Designed with a straight orientation and unshrouded for versatile PCB housing compatibility.
Compatible with multiple Molex series housings and PC board connectors ensuring system flexibility. Ideal for use in electronic assemblies requiring precise and durable pin header connections.
This Molex KK 396 Series pin header delivers high performance and reliability, making it suitable for manufacturing electronic assemblies, industrial control systems, and repair applications.
Explore our PCB Headers category to find compatible connectors and accessories for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 3.96 mm.
It is rated for a maximum voltage of 250V.
This pin header is rated for a maximum current of 7A.
The connector utilizes a through-hole mounting type for PCB integration.
The housing is constructed from polyester, providing durability and temperature resistance.
This model features 5 male contacts arranged in a single row.
The tail pin length is 3.56 mm, suitable for secure solder termination.
It operates within a temperature range of -40°C to 105°C.
This pin header is designed as unshrouded, allowing for versatile PCB housing compatibility.
It utilizes a wire-to-board connector system, suitable for various applications.
It is compatible with multiple Molex series housings, including 2139, 3069, 6442, and 41695, as well as PC board connectors 2145 and 41815.
The contacts are made of brass and plated with tin for reliable electrical connectivity.
