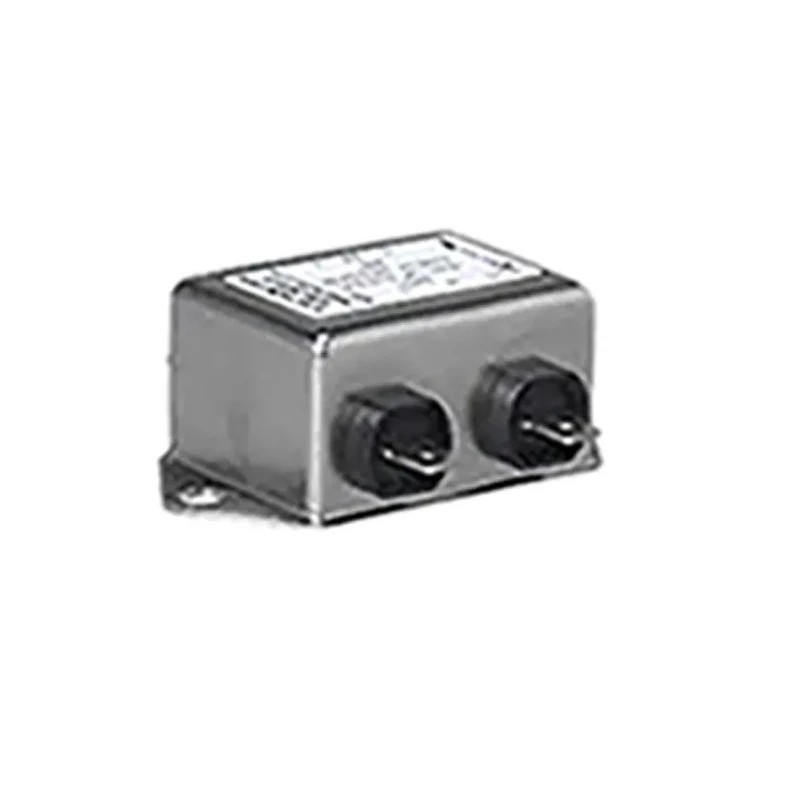

Schurter Single Phase RFI Filter 20A 250V AC 50Hz 60Hz Screw Mount Quick Connect FMBB NEO 5500.2638.01

Free Delivery in India | Lowest Global Shipping Charges

Schurter Single Phase RFI Filter 20A 250V AC 50Hz 60Hz Screw Mount Quick Connect FMBB NEO 5500.2638.01

Name: Schurter Single Phase RFI Filter 20A 250V AC 50Hz 60Hz Screw Mount Quick Connect FMBB NEO 5500.2638.01
Brand: Schurter
SKU: 135776



Category Power Line Filters Brand Schurter Condition New

Specifications

Country of Origin	China
Brand	Schurter
Height	24.8mm
Length	64mm
Depth	44mm
Mount Type	Screw
Operating Frequency	50, 60Hz
Series	FMBB NEO
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	6mΩ
Minimum Operating Temperature	-25°C
Maximum Current	20A
Number of Phases	1
Leakage Current	1mA
Maximum Voltage	250V ac
Standards/Approvals	UL1283
Termination Style	Quick Connect
Power Loss	4.8W

Key Features

Suitable for industrial, household, and medical applications requiring interference suppression.
Operates at frequencies of 50Hz and 60Hz to accommodate common AC power systems.
Compact metal housing design ensures durability and ease of installation.
Rated operating temperature ranges from -25°C to 100°C for varied environments.
Leakage current is limited to 1mA for safety and efficiency.
Power loss is 4.8W, enabling reliable performance with minimal energy waste.
Resistance is low at 6 milliohms to ensure minimal voltage drop.
Certified to UL1283 standards, ensuring compliance with recognized safety norms.

Product Description

Schurter 5500.2638.01 is a professional single phase RFI filter from the FMBB NEO series designed to provide excellent symmetrical attenuation of electromagnetic interference (EMI). It supports a maximum current of 20A and operates at 250V AC across standard frequencies of 50Hz and 60Hz. The filter features a sturdy full metal housing that provides robustness suitable for industrial, household, and medical equipment applications requiring high performance EMI suppression.

This filter is screw-mounted and terminated via quick connect style for fast assembly and secure connections. Its operating temperature range from -25°C up to 100°C allows it to withstand a variety of environmental conditions. A leakage current of just 1mA keeps it efficient and safe during operation.

The compact dimensions of 64mm length, 44mm depth, and 24.8mm height make it suitable for integration in limited space installations. With a low resistance of 6 milliohms and power loss of 4.8 watts, it maintains electrical efficiency while conforming to UL1283 safety standards.

This filter is ideal for use in industrial machinery, household appliances, and medical devices where reduction of high symmetrical interference is crucial to prevent malfunction or degradation of other electronic components.

Suitable for industrial, household, and medical applications requiring interference suppression. Operates at frequencies of 50Hz and 60Hz to accommodate common AC power systems. Compact metal housing design ensures durability and ease of installation.

Rated operating temperature ranges from -25°C to 100°C for varied environments. Leakage current is limited to 1mA for safety and efficiency. Power loss is 4.8W, enabling reliable performance with minimal energy waste. Resistance is low at 6 milliohms to ensure minimal voltage drop.

Certified to UL1283 standards, ensuring compliance with recognized safety norms. Dimensions: Length 64mm, Depth 44mm, Height 24.8mm for space-conscious integration. Chassis-mounted with screw fixings for secure attachment.
