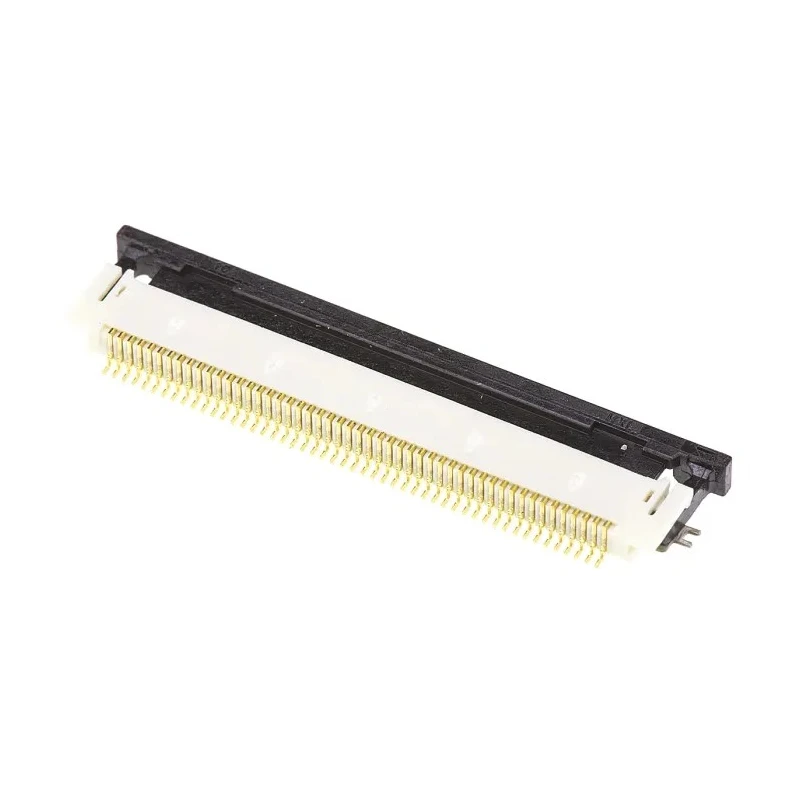

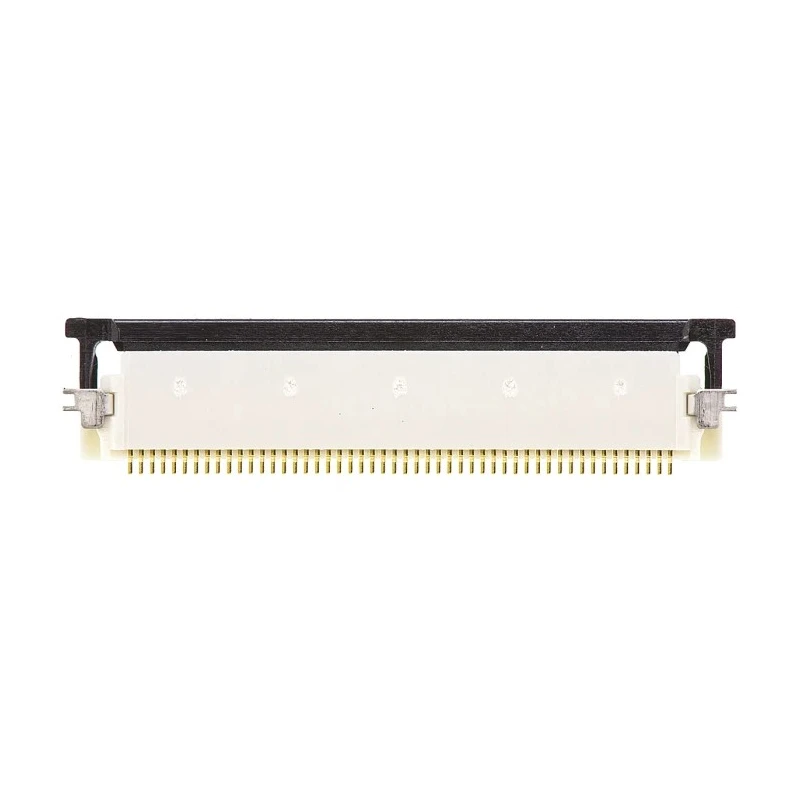

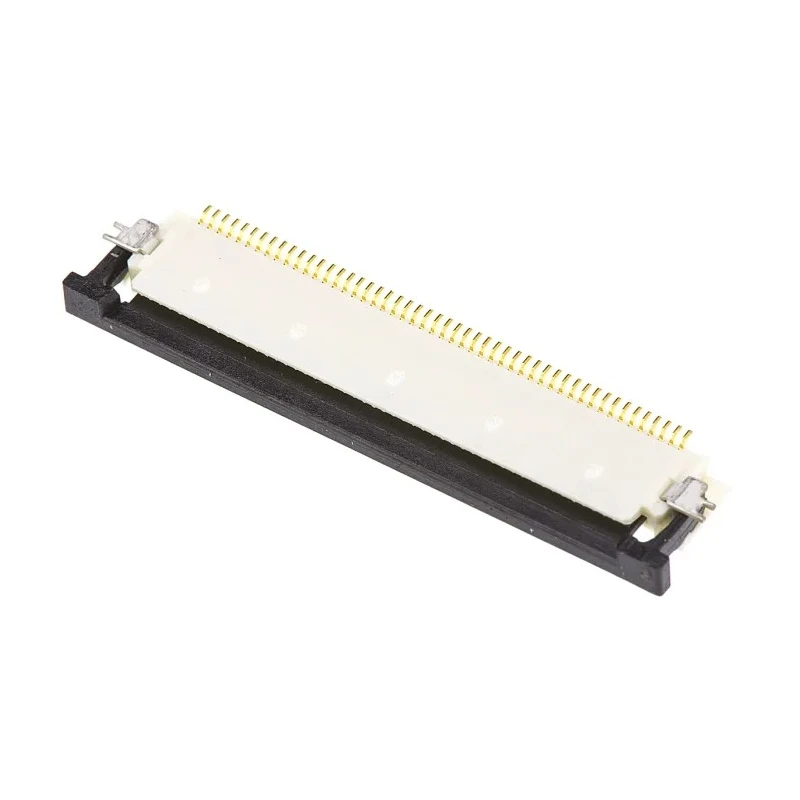

Molex 0.5 mm Pitch 50 Way Right Angle Female FPC Easy-On Connector, Solder Termination 54132-5062

Molex 54132-5062 is a high-density FPC (Flexible Printed Circuit) connector featuring a 0.5 mm pitch and 50 female contacts arranged in a right angle orientation. This Easy-On connector utilizes a zero insertion force (ZIF) slide actuator to facilitate effortless and reliable mating with FPC cables, minimizing wear and enhancing repeat cycling capability. It uses phosphor bronze contacts with gold over nickel plating for excellent conductivity and corrosion resistance, housed in a robust nylon body for mechanical durability.

The connector is designed for surface mount solder termination, ensuring secure mechanical and electrical connections to the PCB. Its solder tabs provide additional retention strength and strain relief to protect solder joints from mechanical stresses.

Operating temperature range spans from -20°C to 85°C, making this connector suitable for diverse industrial and commercial environments. Rated for 500mA current and 50V voltage, it efficiently serves signal and data transmission applications requiring compact, reliable interconnections.

This connector's space-saving right angle design makes it ideal for equipment with stringent space constraints, such as automotive navigation systems, consumer electronics devices including digital cameras and smartphones, medical monitoring equipment, and telecommunication devices. The bottom contact position and locking mechanism ensure consistent contact retention and connection security.

The connector features a space-saving design ideal for tight packaging applications. Zero Insertion Force operation via slide-type actuator minimizes connector wear during repeated mating cycles. Movable phosphor bronze contacts maintain secure electrical retention despite cable movement.

Solder tabs provide strong PCB retention and strain relief. Gold over nickel plating enhances contact reliability and corrosion resistance. Nylon housing offers mechanical protection and durability. Operates safely within -20°C to 85°C temperature range.

Supports current rating of 500mA and voltage rating of 50V. One row with 50 female contacts at 0.5 mm pitch. Right angle female connector suitable for compact board designs.

This Molex 54132-5062 connector is a trusted component for industrial, automotive, medical, and consumer electronics applications requiring high-density, reliable FPC connections. Its proven durability and space-efficient design ensure excellent performance in a variety of demanding environments.
