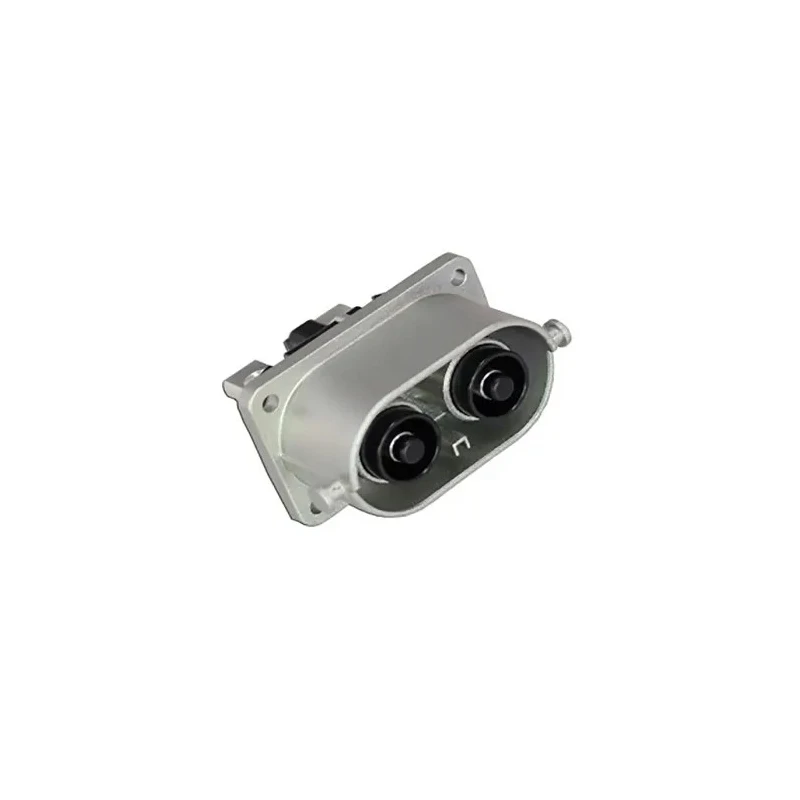

Amphenol Industrial ECTA 544 Type EV EV Connector Male 120A 1000V Screw Termination HVSLS600022A1H6
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 120A |
| Height | 35mm |
| Model | HVSLS600022A1H6 |
| Depth | 50.1mm |
| IP Rating | IP69K, IP67 |
| Connector Type | Type EV |
| Width | 60mm |
| Mount Type | Box Mount |
| Housing Material | Zinc Alloy |
| Contact Material | Copper Alloy |
| Series | ECTA 544 |
| Termination Type | Screw |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 6mm |
| Number of Rows | 1 |
| Operating Voltage | 1000V |
| For Use With | High Power Connector System |
| Standards/Approvals | EN 60664-1 |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
| Key Type | Type A |
| Amphenol Industrial, ECTA 544 Type EV EV Connector Male, 120ABrand | Amphenol Industrial |
Key Features
- Supports high current up to 120A for reliable power delivery.
- Operates at voltage rating of 1000V suitable for EV systems.
- Features screw termination for secure cable connections.
- Connector is male type with straight orientation for ease of installation.
- Durable zinc alloy housing and copper alloy contacts ensure long service life.
- IP69K and IP67 rated for protection against water and dust ingress.
- Designed with integrated internal HVIL and touch-proof safety features.
- Operates in temperatures from -40°C to 125°C for harsh environments.
Product Description
Amphenol Industrial HVSLS600022A1H6 is a high-performance EV connector from the ECTA 544 series, designed specifically for electric vehicle power and signal interconnection.
This male connector supports a current rating of 120A and an operating voltage of up to 1000V, making it suitable for high power automotive and other xEV applications. The connector features a screw termination type which provides secure and reliable cable fixing without the need for special tools.
The durable construction includes a zinc alloy housing and copper alloy contacts, ensuring excellent electrical conductivity and mechanical strength. It has a straight orientation and comes in a compact size with dimensions 60mm in width, 50.1mm in depth, and 35mm in height, enabling easy integration into battery packs, power distribution boxes, inverters, and junction boxes.
The connector is rated for protection against harsh environmental conditions with IP69K and IP67 ratings, allowing use in wet and dusty conditions. It safely operates in temperature ranges from -40°C to 125°C and meets the EN 60664-1 electrical safety standards.
Additional design features include an integrated internal high voltage interlock loop (HVIL) and touch-proof coding positions for enhanced safety during mating and unmating operations. The pin diameter measures 6mm and it is compatible with high power connector systems which require a two-contact configuration.
Overall, the HVSLS600022A1H6 connector is an ideal solution for reliable and safe electrical connections in electric vehicle and renewable energy applications, supporting sustainability through its robust and efficient design.
Supports high current up to 120A for reliable power delivery. Operates at voltage rating of 1000V suitable for EV systems. Features screw termination for secure cable connections. Connector is male type with straight orientation for ease of installation.
Durable zinc alloy housing and copper alloy contacts ensure long service life. IP69K and IP67 rated for protection against water and dust ingress. Designed with integrated internal HVIL and touch-proof safety features. Compact dimensions: 60mm width, 50.1mm depth, and 35mm height.
Operates in temperatures from -40°C to 125°C for harsh environments. Compliant with EN 60664-1 standards for electrical safety. Explore more high quality industrial connectors in the EV Connector category at EnvMart for your automotive and power electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 120A, making it suitable for high power applications in electric vehicles.
The maximum operating voltage for this connector is 1000V, which is appropriate for electric vehicle systems.
The housing is made from zinc alloy, while the contacts are constructed from copper alloy, ensuring good electrical conductivity.
It has compact dimensions of 60mm in width, 50.1mm in depth, and 35mm in height, facilitating easy integration into various applications.
This connector features a screw termination type, which provides secure and reliable cable connections without the need for special tools.
It is rated IP69K and IP67, providing protection against water and dust ingress, suitable for harsh environments.
The connector operates effectively in temperatures ranging from -40°C to 125°C, making it suitable for extreme conditions.
This model has 2 contacts, designed for high power connector systems that require a two-contact configuration.
It is designed with an integrated internal high voltage interlock loop (HVIL) and touch-proof safety features for enhanced safety during use.
This connector is a Type EV with a straight orientation, facilitating easier installation in various setups.
The HVSLS600022A1H6 complies with EN 60664-1 standards for electrical safety, ensuring reliable performance in applications.
It is suitable for electric vehicle power and signal interconnection, as well as renewable energy applications.
