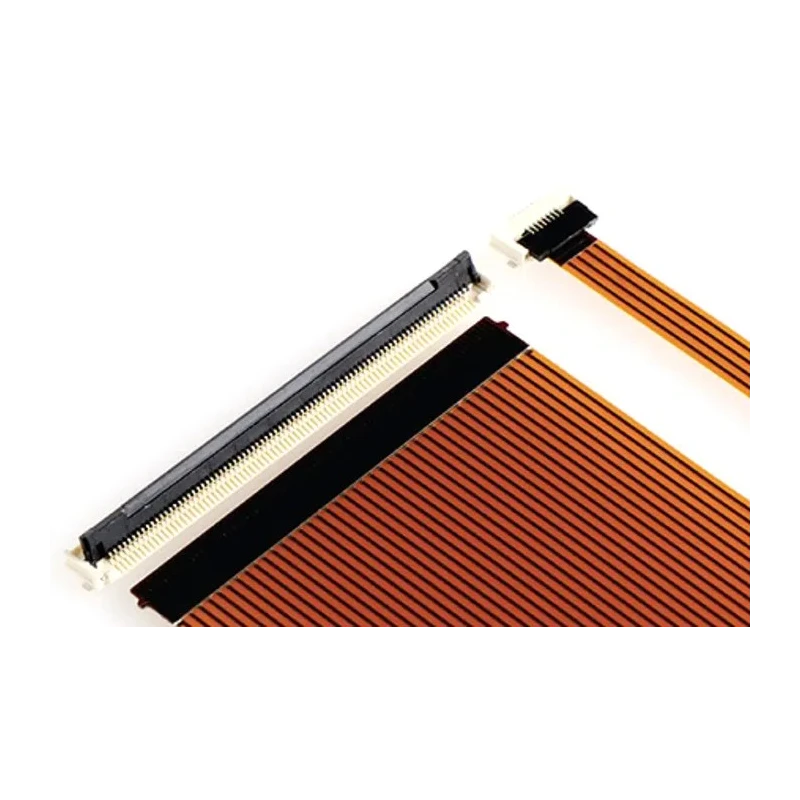

Molex 0.5 mm Pitch 6 Way Right Angle Male Easy-On FPC Connector, Solder 505110-0692

Molex 505110-0692 is an Easy-On 0.50 mm pitch FPC connector featuring 6 way right angle male configuration designed with double bottom contacts for high contact reliability and minimal contamination. This compact connector has a low 1.9 mm mating height ideal for applications requiring tight packaging.

The double bottom contact design provides two contacts per circuit, improving contact stability and providing a clean mating interface by removing dust and contaminants. Cable ear-tab locking features provide proper cable seating, alignment, and high retention force, complemented by a locking mechanism for secure connections.

These connectors employ Zero Insertion Force (ZIF) technology that facilitates easy cable insertion and facilitates repeat cycling with minimal wear. The robust solder tabs ensure secure PCB retention and provide strain relief for solder joints. The housing is designed with liquid crystal polymer to ensure durability.

Additional engineering features include a vacuum pick and place area on top of the housing to facilitate cost-effective and efficient board assembly in manufacturing environments.

This connector operates safely with a rated voltage of 50 volts and current rating of 500 mA, functioning within temperature ranges from -40°C to 105°C, making it suitable for demanding industrial, automotive, consumer electronics, data communication, and manufacturing applications. Its right angle orientation and surface mount configuration provide flexible PCB design integration.

Double bottom contacts provide reliable electrical connection and reduce contamination risks. Cable ear-tab locking ensures precise cable alignment and retention force. Compact low profile design with 1.9 mm mating height enables use in tight packaging environments.

Zero Insertion Force technology reduces wear and enables easy cable insertion. Robust solder tabs enhance PCB retention and strain relief for durable solder joints. Vacuum pick and place area on housing assists efficient automated assembly.

Gold over nickel plating on contacts ensures corrosion resistance and conductivity. Liquid crystal polymer housing for high durability and stability. Voltage rating of 50 V and current rating of 500 mA for reliable performance.

Wide operating temperature range from -40°C to 105°C suits diverse applications.

Applications include automotive displays, audio systems, navigation devices, flat panel TVs, portable gaming consoles, personal navigation equipment, optical disk drives, notebook PCs, printers, and copiers. The 505110 series connectors are ideal for electronics requiring high reliability in compact, low-profile connectors.
