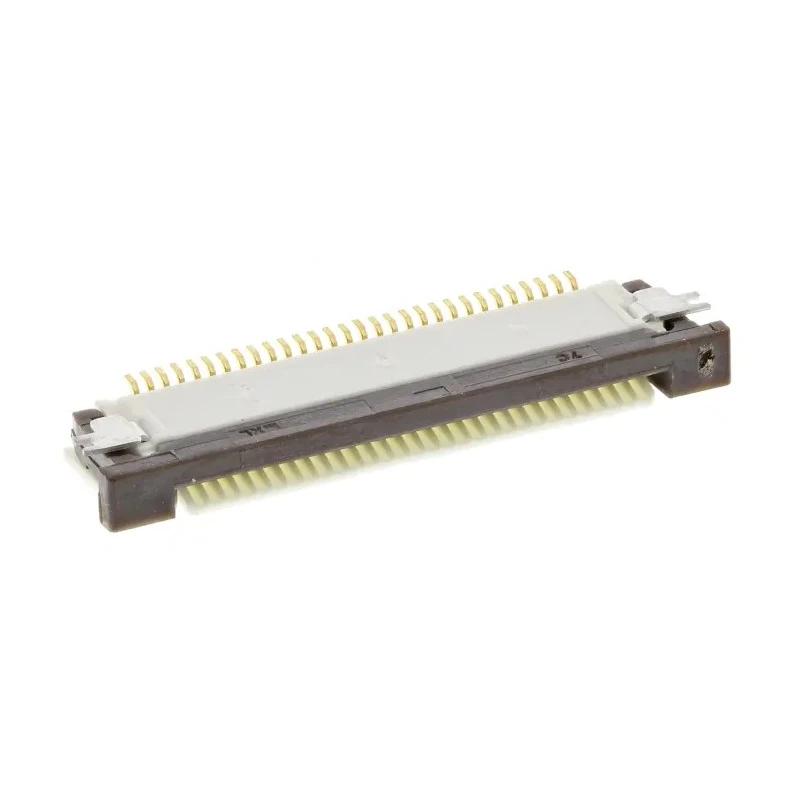

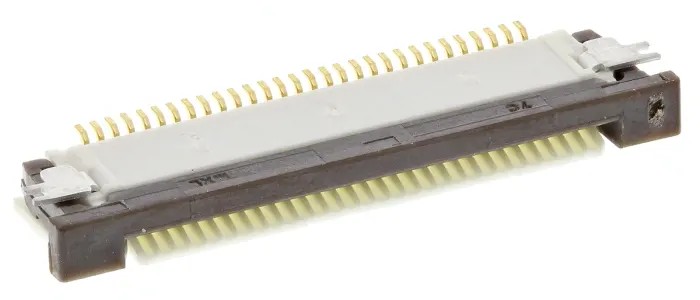

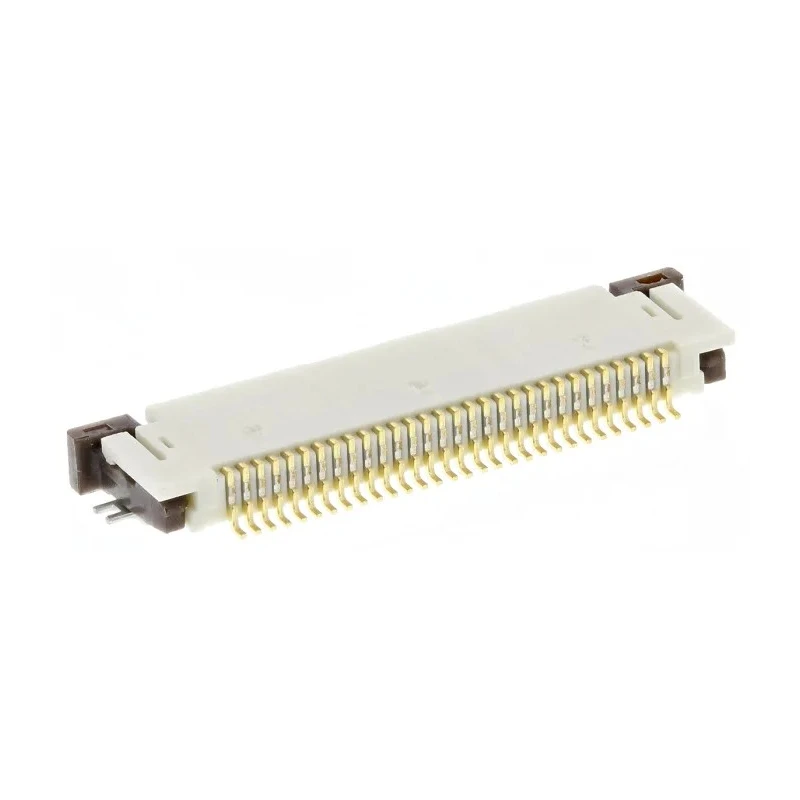

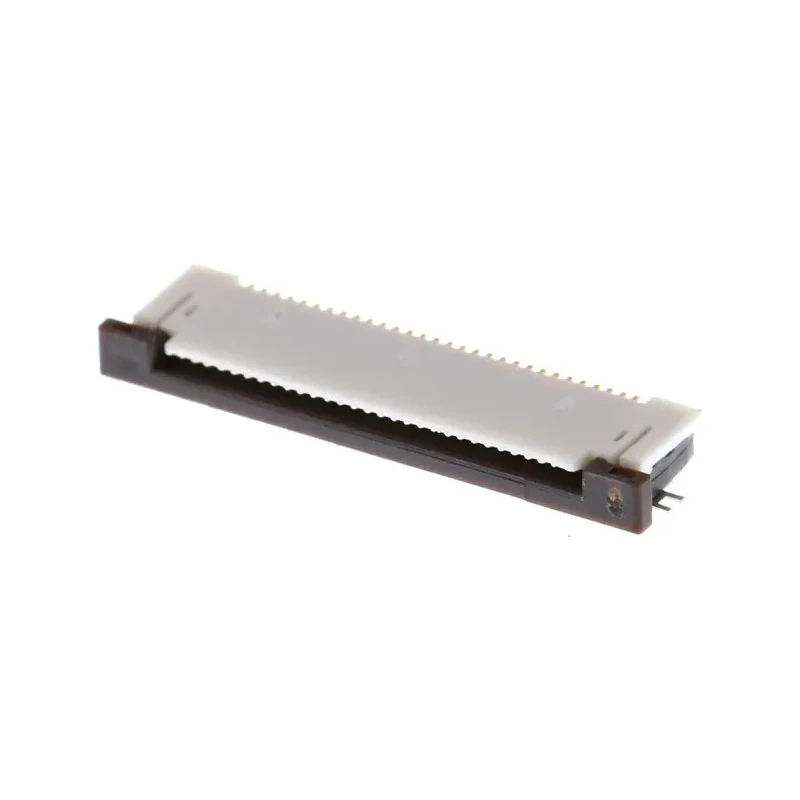

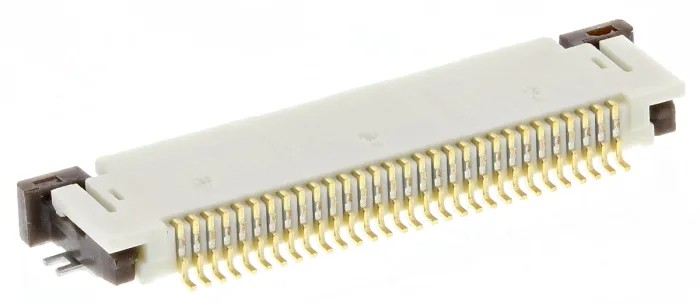

Molex 0.5 mm Pitch 30 Way Right Angle Female FPC Connector, Surface Mount, Solder Termination 54104-3031

Molex 54104-3031 is a 0.5 mm pitch 30 way right angle female FPC connector designed for surface mount with solder termination. The Easy-On series zinc-free design includes a corrosion-resistant nylon housing and gold-plated phosphor bronze contacts for reliable electrical connection and durability. This connector features a locking mechanism and a slide-type actuator to maintain a secure and precise attachment to flexible printed circuit cables.

Operating within a voltage rating of 50V and a temperature range of -20°C to 85°C, the connector is well-suited for applications in automotive systems, medical devices, tablets, notebooks, and streaming media equipment. The right angle orientation saves board space in compact electronic designs.

The connector's contact design aligns on top and incorporates solder tabs that provide strain relief and secure PCB retention. Its Zero Insertion Force (ZIF) characteristic allows for repeat cycling with minimal wear, enhancing connector longevity in demanding usage scenarios.

This product is manufactured in Malaysia, meeting rigorous quality standards and is part of the Molex 54104 series. Corrosion-resistant nylon housing provides safety in moist environments. Gold over nickel plating on contacts ensures optimal electrical flow.

Slide-type actuator enables easy insertion and secure contact retention. Strain relief solder tabs aid in mechanical stability on PCB. ZIF design supports repeatable cycles with minimal connector wear. Polarized configuration prevents incorrect mating.

Compact design suitable for automotive, medical, and consumer electronics. Rated for 500mA current and 50V voltage. Single row with 30 contacts for dense circuit packing.
