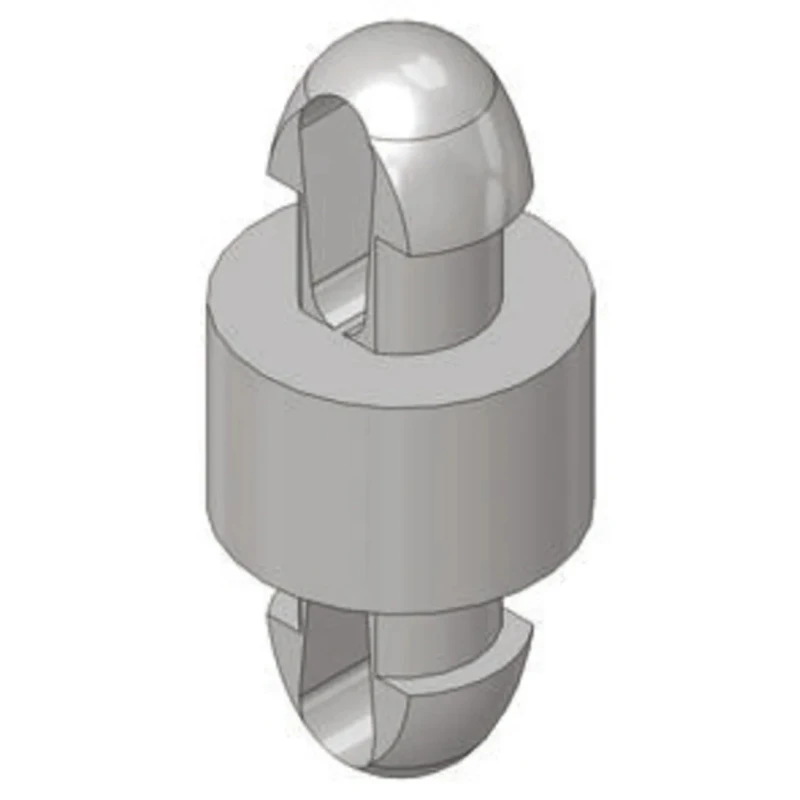

Essentra Nylon PCB Post 4 mm Height 8 mm Overall Height 2.5 mm PCB Hole MDLSP-1-100-04M-01

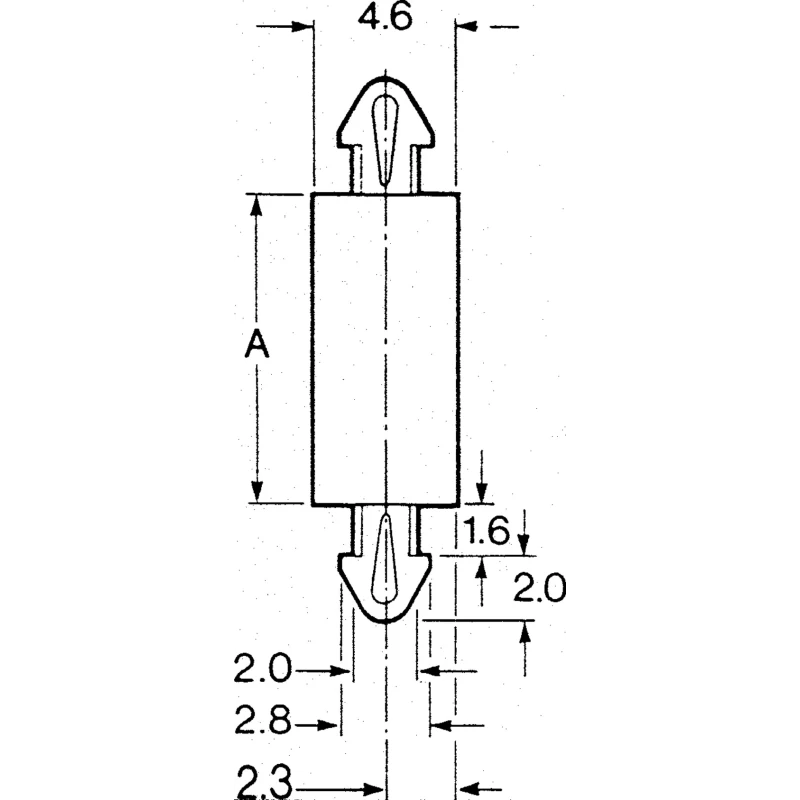

Essentra MDLSP-1-100-04M-01 is a precision-engineered Nylon PCB Post designed for secure and reliable support of printed circuit boards in various electronic assemblies. Featuring a 4 mm post height with an 8 mm overall height, it fits PCB hole diameters of 2.5 mm, accommodating board thicknesses up to 1.65 mm.

The Nylon construction provides excellent electrical insulation and durability, making it suitable for industrial and commercial electronic applications. The support base width of 4.6 mm ensures a stable base for mounting. This product is RoHS compliant, adhering to stringent environmental and safety regulations.

Typical applications include LCD display mounting, where accurate and secure PCB positioning is critical. The mounting system is identical on both the board side and chassis side, allowing for manual installation with ease.

Essentra's MDLSP-1-100-04M-01 offers dependable performance in electronics manufacturing, testing, and prototyping environments. Constructed from durable Nylon material ensuring electrical insulation. Designed for 2.5 mm PCB hole diameter compatibility.

Supports PCB thickness up to 1.65 mm for stable mounting. Support base width measures 4.6 mm providing firm attachment. RoHS compliant for environmental safety. Ideal for LCD display mounting applications. Manual installation with symmetrical mounting on board and chassis sides.
