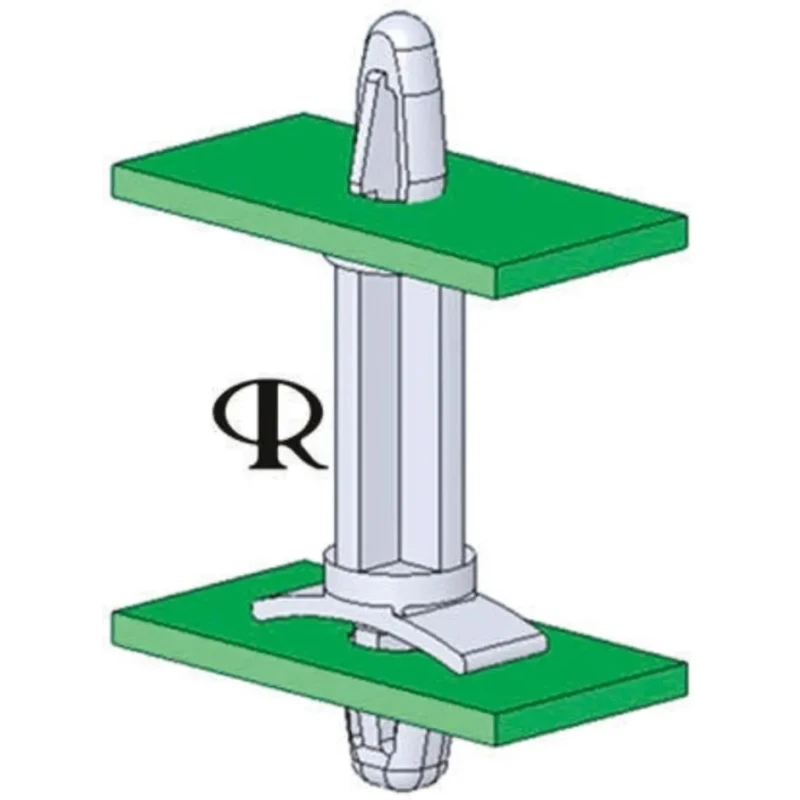

Essentra Nylon PCB Support Pillar for 3.18 mm PCB Hole LCBSM-8-01
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Essentra |
| Material | Nylon |
| Colour | Natural |
| Model | LCBSM-8-01 |
| Standards/Approvals | RoHS |
| Chassis Hole Diameter | 3.18mm |
| Chassis Thickness | 1.57mm |
Key Features
- Made of durable Nylon 66 material ensuring electrical insulation and strength.
- Natural color finish suitable for various PCB applications.
- Designed for chassis and PCB holes of 3.18 mm diameter for compatibility.
- Chassis thickness support of 1.57 mm provides stable mounting.
- Miniature locking design snaps into place, requiring no fixing screws.
- Can be released by hand, allowing easy adjustments and removals.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Essentra LCBSM-8-01 Nylon PCB Support Pillar is a high-quality electronic component designed to provide reliable and secure support for printed circuit boards (PCBs) with 3.18 mm holes. Manufactured from Nylon 66, this support pillar combines excellent mechanical strength with electrical insulation, making it suitable for diverse industrial and commercial electronics assembly applications.
The miniature locking PCB pillar design enables quick installation by snapping into place on both the chassis and the PCB without the need for screws or additional fixing hardware. The support pillar accommodates chassis thicknesses up to 1.57 mm, ensuring stable mounting and vibration resistance during device operation.
With a natural color finish and compliance to RoHS environmental standards, this product supports environmentally responsible manufacturing. It is particularly suited for use in industrial electronic assembly lines, laboratory prototypes, research and development projects, and commercial electronic products requiring robust PCB mounting solutions.
Constructed from Nylon 66 material for durability and electrical insulation. Supports PCB and chassis hole diameters of 3.18 mm for high compatibility. Snap-lock feature allows simple tool-free installation and removal. Designed for chassis thickness up to 1.57 mm providing strong support.
RoHS compliant, ensuring restriction of hazardous substances. Natural color finish blends with most PCB assemblies.
This Essentra PCB Support Pillar is an essential component for electronics manufacturing, testing, and repair, supporting long-term reliability and simplifying assembly. Browse the Electronics Components and PCB Support categories on EnvMart for more professional-grade PCB mounting solutions from trusted brands including Essentra.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is made of Nylon 66, which provides both mechanical strength and electrical insulation.
This support pillar is designed for chassis and PCB holes with a diameter of 3.18 mm.
It accommodates a maximum chassis thickness of 1.57 mm, ensuring stable mounting.
Yes, it complies with RoHS standards, ensuring the restriction of hazardous substances.
The miniature locking design allows it to snap into place without the need for screws, making installation quick and tool-free.
It features a natural color finish, which blends well with most PCB assemblies.
It is particularly suited for industrial electronic assembly lines, laboratory prototypes, and commercial electronic products requiring robust PCB mounting solutions.
The specific dimensions are not provided, but it is designed for a chassis hole diameter of 3.18 mm and supports chassis thicknesses up to 1.57 mm.
The locking mechanism is designed to snap into place and can be released by hand for easy adjustments and removals.
It is manufactured in the United Kingdom.
The model number is LCBSM-8-01.
Its primary purpose is to provide reliable and secure support for printed circuit boards (PCBs) with 3.18 mm holes.
