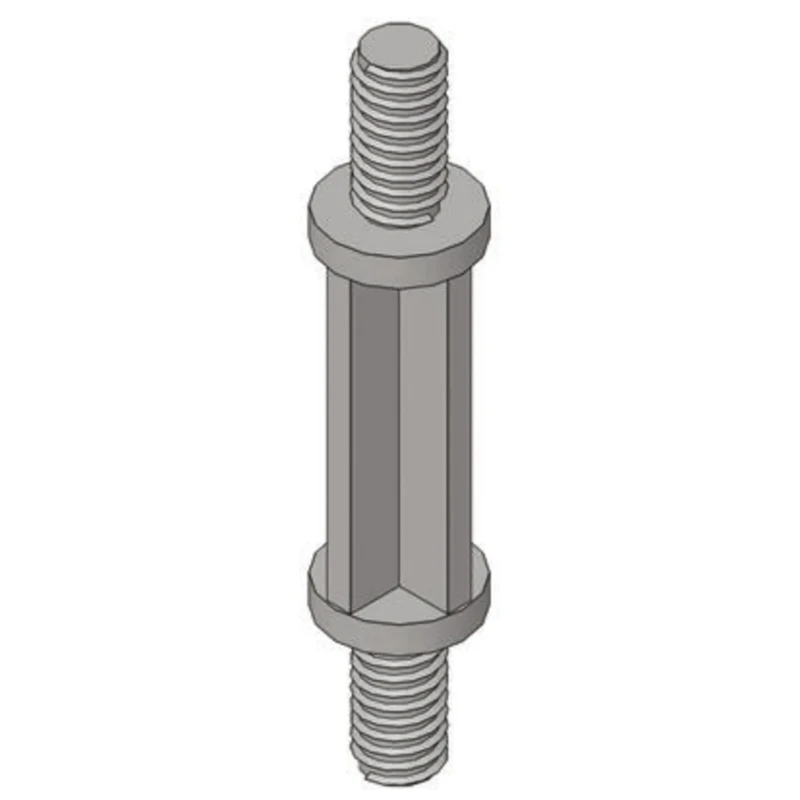

Essentra Nylon PCB Support Pillar 9.5 mm Height, 24.7 mm Overall Height, 4 mm PCB Hole, 7.1 mm Support Base CBS-TMM-M4-06-01
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Essentra |
| Material | Nylon |
| Height | 9.5mm |
| Model | CBS-TMM-M4-06-01 |
| Overall height | 24.7mm |
| Standards/Approvals | RoHS, RMS-01, UL 94 V-2 |
| PCB Hole Diameter | 4mm |
| Support Base Width | 7.1mm |
Key Features
- Constructed from durable Nylon material for insulation and strength.
- Designed with a 4 mm PCB hole diameter suitable for standard mounting screws.
- Support base width of 7.1 mm ensures stable and reliable PCB support.
- Complies with RoHS, RMS-01, and UL 94 V-2 standards for safety and quality.
- Manufactured in the United Kingdom ensuring high-quality production.
Product Description
Essentra CBS-TMM-M4-06-01 is a high-quality Nylon PCB Support Pillar engineered to provide reliable support and precise separation for printed circuit boards. With a height of 9.5 mm and an overall height of 24.7 mm, this support pillar allows effective spacing and alignment in complex electronic assemblies. The 4 mm PCB hole diameter facilitates secure fixing with standard hardware, while the 7.1 mm support base width ensures stable mounting and mechanical integrity.
Manufactured from durable Nylon material, this pillar offers excellent electrical insulation and mechanical robustness, meeting stringent electronic component requirements. It complies with important industry standards including RoHS, RMS-01, and UL 94 V-2 flame retardancy, guaranteeing safe use in various electronic and electrical applications.
This support pillar is suitable for use in industrial electronics assembly, laboratory equipment, commercial electronic devices, and prototyping tasks. Its precise dimensions and quality construction enhance reliability and durability of PCB installations, critical in sectors such as manufacturing, telecommunications, automation, and power electronics.

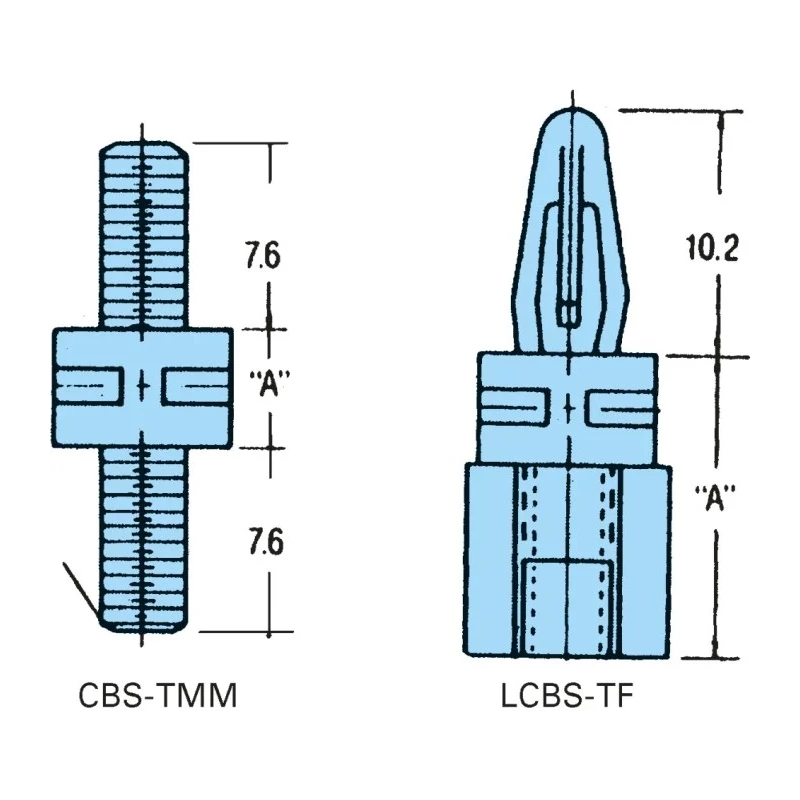

Essentra’s CBS-TMM-M4-06-01 integrates seamlessly with the LCBS-TF and CBS-TMM series spacers, offering flexible solutions for various PCB mounting needs. Whether for prototype development or mass production, this support pillar ensures stable and compliant PCB support.
Constructed from durable Nylon material for insulation and strength. Height of 9.5 mm and an overall height of 24.7 mm for optimal component spacing. Designed with a 4 mm PCB hole diameter suitable for standard mounting screws.
Support base width of 7.1 mm ensures stable and reliable PCB support. Complies with RoHS, RMS-01, and UL 94 V-2 standards for safety and quality. Manufactured in the United Kingdom ensuring high-quality production. Explore the full range of Essentra PCB Support hardware and related electronic components at EnvMart for comprehensive electronics assembly and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The height of the support pillar is 9.5 mm, with an overall height of 24.7 mm.
The PCB hole diameter is 4 mm, which is suitable for standard mounting screws.
The support base width is 7.1 mm, providing stable and reliable PCB support.
It is constructed from durable Nylon material, which offers electrical insulation and strength.
This support pillar complies with RoHS, RMS-01, and UL 94 V-2 standards for safety and quality.
It is manufactured in the United Kingdom, ensuring high-quality production.
It is suitable for industrial electronics assembly, laboratory equipment, commercial electronic devices, and prototyping tasks.
It integrates seamlessly with the LCBS-TF and CBS-TMM series spacers, offering flexible solutions for various PCB mounting needs.
The overall height of the support pillar is 24.7 mm.
Key features include a 4 mm PCB hole diameter, 7.1 mm support base width, and compliance with important safety standards.
It provides reliable support and precise separation for printed circuit boards in electronic assemblies.
The model number of this product is CBS-TMM-M4-06-01.
