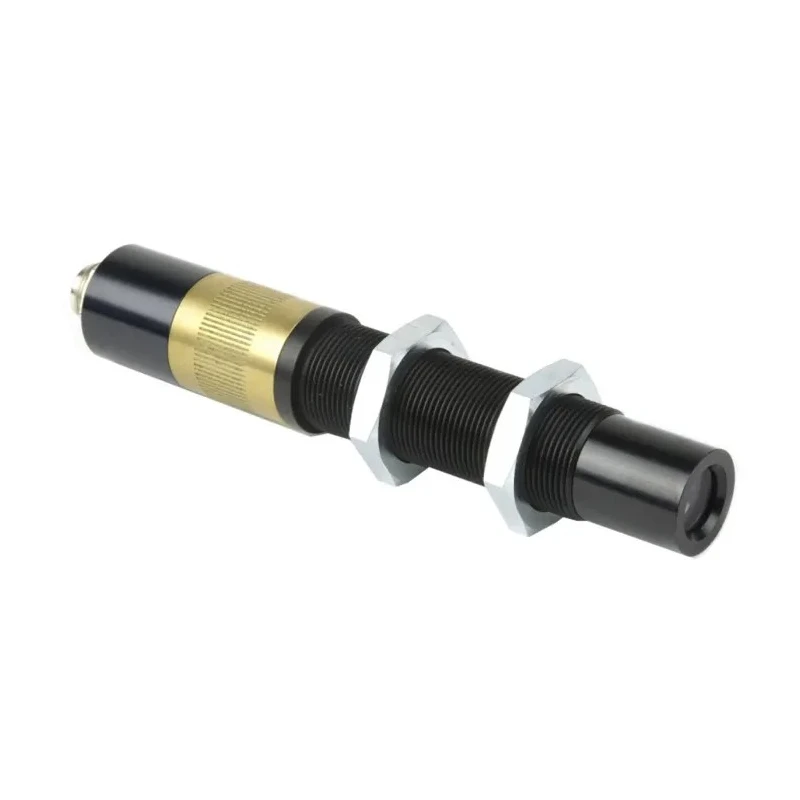

Global Laser GuideLine 2 Continuous Wave Red Laser Module 635 nm 10 mW 5-30 V 1549-01-000

Global Laser 1549-01-000 is a GuideLine 2 series industrial continuous wave laser module designed for accurate alignment tasks requiring a red laser emission at 635 nm wavelength and 10 mW optical power output. This laser module operates safely within supply voltages from 5 to 30 Vdc and draws a current of 60 mA. Its line pattern emission and laser class 1M rating make it suitable for precise, safe industrial applications.

Constructed to IP67 standard, this module offers robust protection against dust and water and features an electrically isolated case with reverse polarity protection for secure operation. The M18 threaded barrel with mounting nuts allows easy and secure installation in alignment tools, machines, and industrial setups.

User focus adjustment is facilitated through an external ring, enabling precise beam tuning in diverse scenarios. The module measures 115 mm in length and 19 mm in diameter, fitting compactly into assemblies. Operation is reliable across a temperature range of -10°C to 45°C, accommodating various industrial environments.

This module complies with laser safety norms BS (EN) 60825 and is intended for safe industrial use when precautions against direct eye exposure are followed. IP67 protection rating for extreme industrial conditions. Continuous wave laser type for stable beam output.

User-adjustable focus for versatile alignment needs. M18 mounting thread ensures easy installation. Compact size supports integration into existing equipment. Red laser emission with 635 nm wavelength for clear visibility.

Operating voltage range of 5 to 30 V with 60 mA current draw. Complies with laser safety class 1M standards.

This laser module is ideal for industrial, manufacturing, electronics, and laboratory alignment applications requiring a robust, reliable, and precise laser source. It serves well in environments demanding high accuracy and rugged performance.
