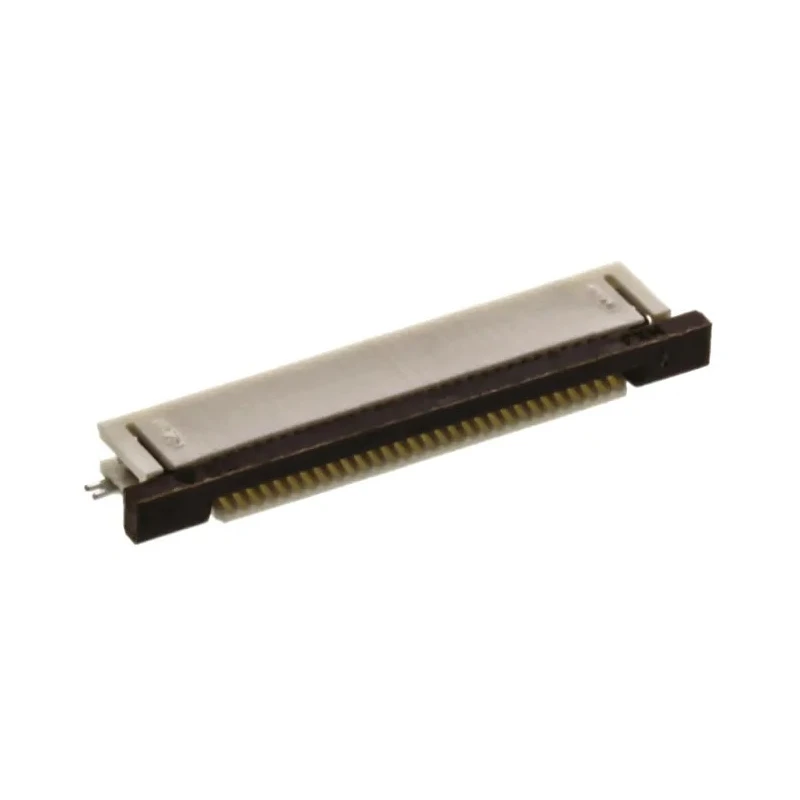

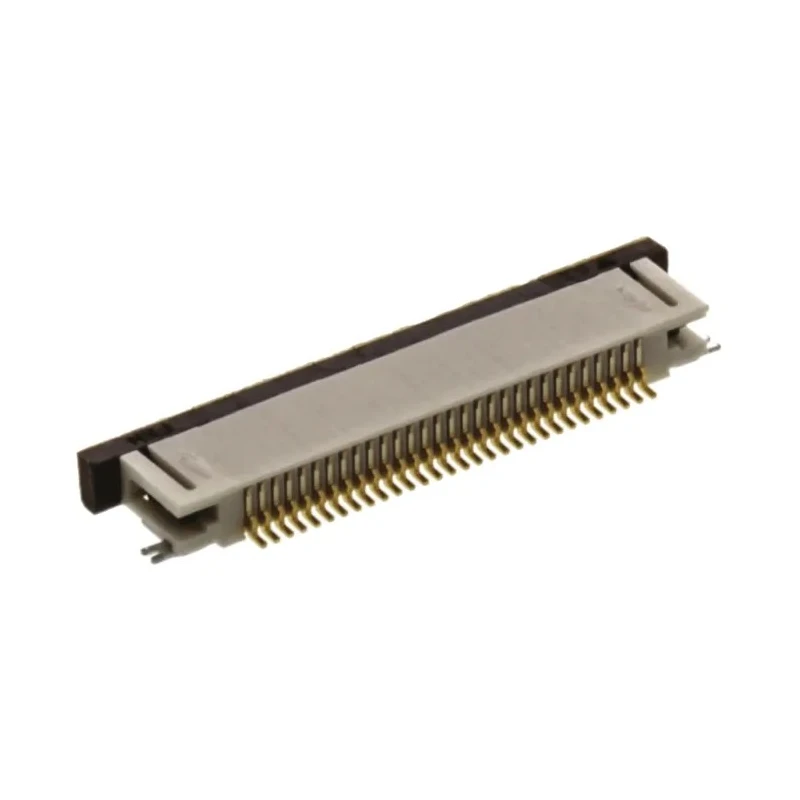

Molex 0.5 mm Pitch 30 Way Right Angle Female FPC Connector, Solder 52437-3071

Molex 52437-3071 is a precision-engineered 0.5 mm pitch, 30 way right angle female FPC connector designed for solder termination surface mount applications. It features an Easy-On slide type actuator providing a secure connection with zero insertion force, enabling multiple insertion cycles with minimal wear and reliable electrical contact retention.

The connector uses phosphor bronze contacts with gold plating to ensure excellent conductivity and corrosion resistance, while the nylon housing offers durable insulation and mechanical stability. Its right angle orientation and bottom-aligned contacts allow space-saving placement on printed circuit boards, ideal for compact and densely packed electronic assemblies.

Rated at 50 volts and supporting 500mA current, this connector is suitable for various electronic applications, including automotive navigation and audio systems, digital cameras, home security devices, tablets, notebooks, patient monitoring equipment, GPS units, smartphones, and more. It is engineered to operate reliably within a temperature range of -40°C to 85°C, making it compatible with diverse environmental conditions.

The solder tabs on the base of the connector enhance PCB retention and provide strain relief, increasing mechanical robustness and reliability during use and assembly. The locking mechanism offers secure retention of the flat flexible cable (FFC), preventing accidental disconnections in demanding environments.

This connector belongs to the Molex 52437 series, manufactured in Japan, known for high-quality and dependable interconnect solutions. The product is well-suited for industrial, automotive, medical, telecommunications, and consumer electronics sectors requiring compact, reliable, and durable interconnection components.

Easy-On ZIF slide actuator ensures minimal insertion force and secure connection. Phosphor bronze contacts with gold plating provide optimal electrical performance. Space-saving right angle design for compact PCB layouts.

Wide operating temperature range from -40°C to 85°C for diverse applications. Solder tabs provide strong PCB retention and strain relief. Nylon housing ensures electrical insulation and mechanical durability. Supports up to 50 volts and 500mA current for signal and low-power applications.

Single row, 30 contact design for high-density FPC interconnection. Suitable for automotive, consumer electronics, medical, and telecom industries. Manufactured in Japan with stringent quality standards. Explore the Molex FPC Connector category on EnvMart for more precision interconnect solutions suitable for your industrial and commercial electronic assembly needs.
