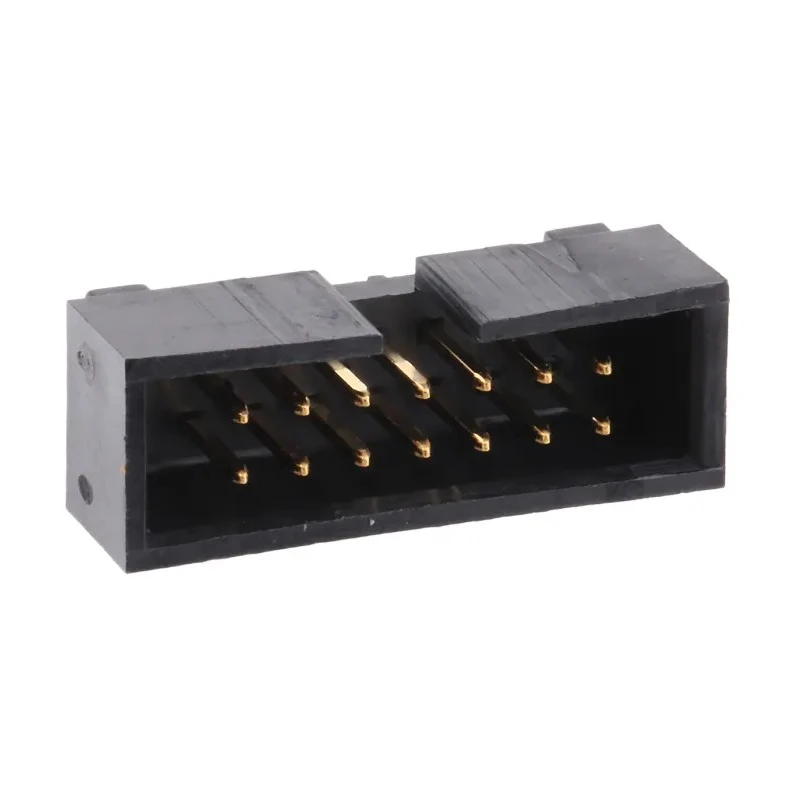

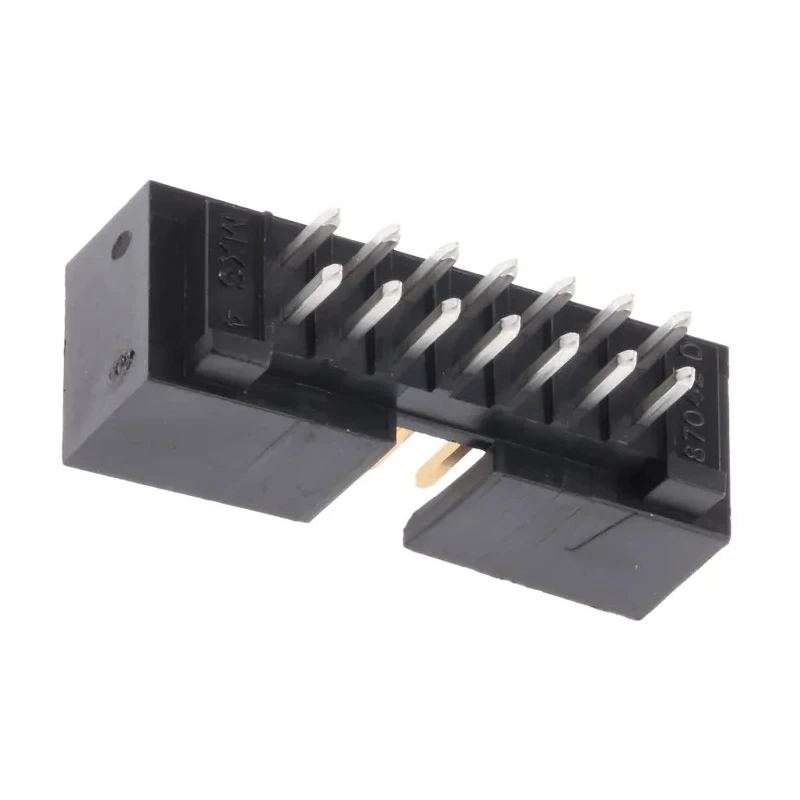

Molex C-Grid Series Straight Through Hole PCB Header 14 Contact 2 Row 2.54 mm Pitch Shrouded 70246-1401

Molex 70246-1401 is a C-Grid Series straight through hole PCB header designed for wire-to-board applications requiring robust connection performance. It features 14 contacts arranged in 2 rows with a precise 2.54 mm pitch, ensuring compatibility with industry-standard PCB layouts. The shrouded connector design provides protection and mechanical stability during mating and unmating cycles.

This PCB header is constructed with a durable polybutylene terephthalate housing, supporting operation in a broad temperature range from -55°C to 120°C, suitable for demanding industrial, laboratory, and electronic manufacturing environments. The male phosphor bronze contacts are plated with gold layers to enhance conductivity and prevent corrosion, supporting a current rating of up to 2.5 amperes and a voltage rating of 250 volts.

The product is intended for through hole mounting on PCBs, facilitating secure solder termination. It offers a tail pin length of 3.43 mm and mates with Molex 70058 Series terminals, providing seamless integration in electronic assemblies. These headers are widely used in electronic components, power connectors, PCB connector housings, and industrial automation equipment.

Supports a current rating of 2.5 A for reliable electrical performance. Features a straight orientation and through hole mount type. Constructed with polybutylene terephthalate housing for durability. Phosphor bronze contact material with gold plating for corrosion resistance.

Operating temperature range from -55°C to 120°C. Contact gender is male with tail pin length of 3.43 mm. Designed for 250 V voltage rating to ensure safe operation. Compatible with 70058 Series terminals for easy mating.

This Molex C-Grid series PCB header is suitable for diverse applications including electronic design, industrial automation, power connectors, and manufacturing of electronic assemblies. Its reliable construction supports high durability and effective electrical connectivity, making it ideal for professional and industrial use.
