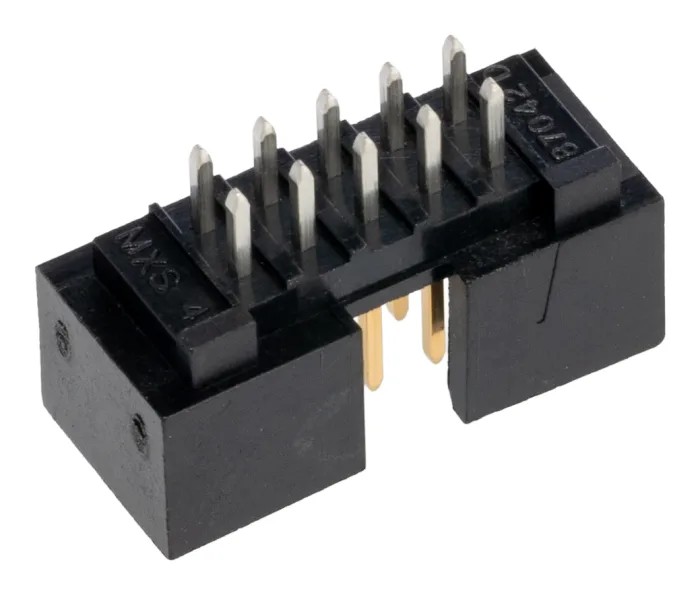

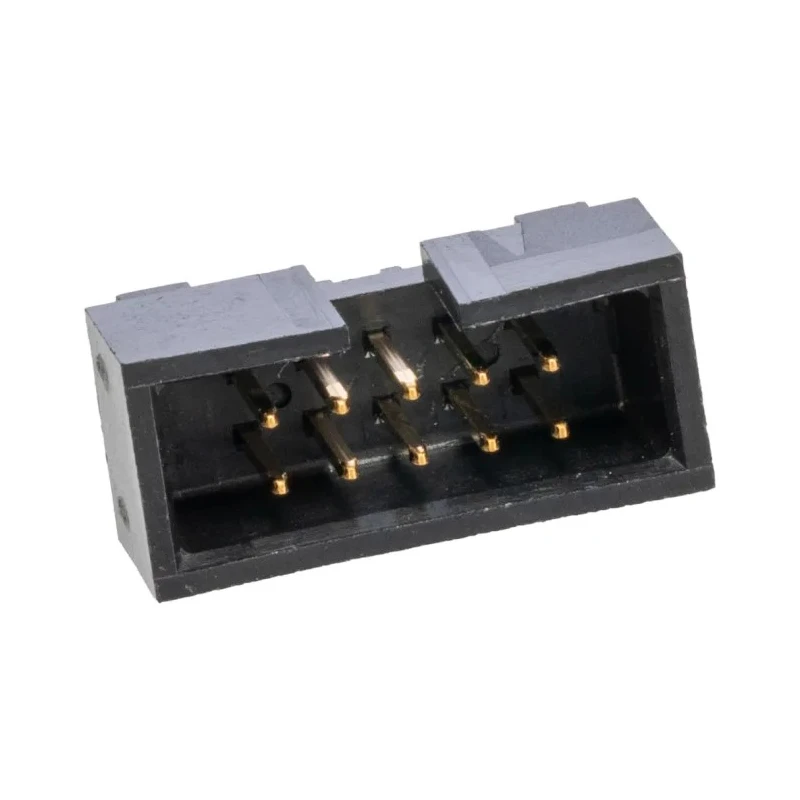

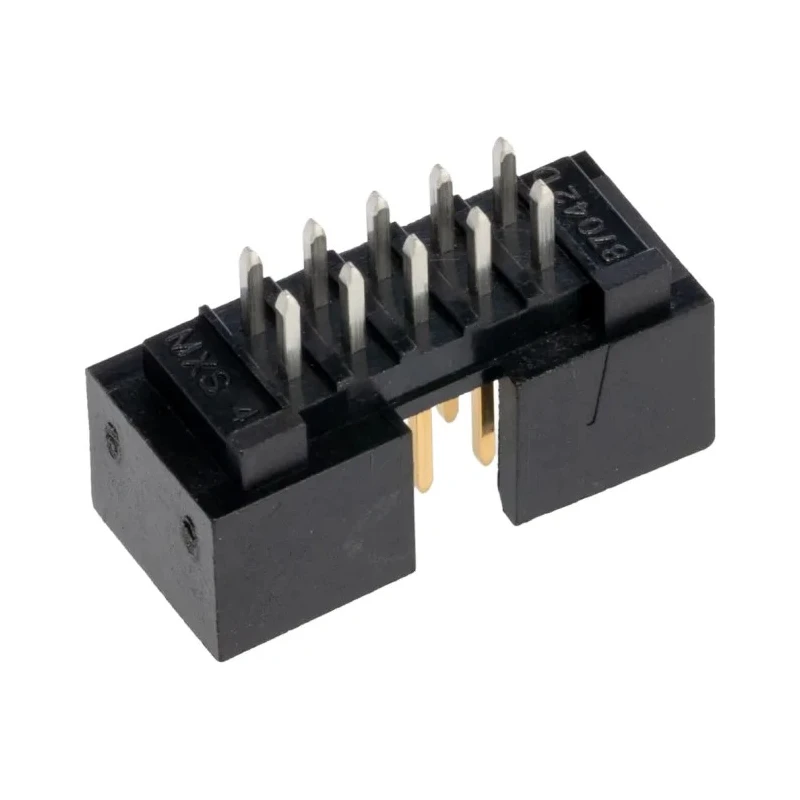

Molex C-Grid Series Vertical Through Hole PCB Header 10 Contacts 2.54 mm Pitch 2 Row Shrouded 70246-1004

Free Delivery in India | Lowest Global Shipping Charges

Molex C-Grid Series Vertical Through Hole PCB Header 10 Contacts 2.54 mm Pitch 2 Row Shrouded 70246-1004

Name: Molex C-Grid Series Vertical Through Hole PCB Header 10 Contacts 2.54 mm Pitch 2 Row Shrouded 70246-1004
Brand: Molex
SKU: 206387
Price: 1.31 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Vertical
Current	2.5A
Mount Type	Through Hole
Contact Material	Brass
Series	C-Grid
Termination Type	Solder
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.43mm
Mating Pin Length	2.54mm

Key Features

Features a shrouded dual-row vertical design for secure connections.
Constructed with brass contacts plated in gold for enhanced conductivity.
Rated for a current of 2.5A and voltage up to 250V for diverse applications.
Compatible with PCB thickness of 1.60 mm ensuring optimum performance.
Supports signal and power transmission in automation and electronic assembly.
Operates safely within a temperature range of -40°C to 120°C.
Designed for through-hole mounting with solder termination for durability.
Mating pin length of 2.54 mm and tail pin length of 3.43 mm for effective insertion.

Product Description

Molex 70246-1004 is a C-Grid Series Vertical Through Hole PCB Header designed to facilitate efficient signal and power transmission between printed circuit boards and wires. This shrouded header features 10 brass contacts plated with gold to ensure strong conductivity and durability. With a dual-row, 2.54 mm pitch configuration, it provides a secure connection in compact electronic assemblies.

The header is rated for a current capacity of 2.5A and voltage rating of 250V, making it suitable for various applications in industrial automation, electrical panels, and signal transmission systems. It is designed for through-hole mounting with solder termination, ensuring dependable mechanical stability and electrical performance.

Operating within a temperature range of -40°C to 120°C, it withstands diverse environmental conditions. The mating pin length of 2.54 mm and tail pin length of 3.43 mm support reliable insertion and connection integrity. The shrouded design enhances safety by preventing misalignment and ensuring proper polarity during installation.

Recommended for PCB thickness of 1.60 mm, this Molex header is ideal for dual-row setups in compact and demanding environments requiring safe, durable, and efficient wire-to-board connections.

Features a shrouded dual-row vertical design for secure connections. Constructed with brass contacts plated in gold for enhanced conductivity. Rated for a current of 2.5A and voltage up to 250V for diverse applications. Compatible with PCB thickness of 1.60 mm ensuring optimum performance.

Supports signal and power transmission in automation and electronic assembly. Operates safely within a temperature range of -40°C to 120°C. Designed for through-hole mounting with solder termination for durability. Mating pin length of 2.54 mm and tail pin length of 3.43 mm for effective insertion.

Ensures polarity and alignment accuracy to prevent installation damage.

This product is essential for industrial, electronic manufacturing, laboratory, and automation applications. Explore Molex connectors and similar PCB header components in EnvMart's comprehensive electronics category for robust and quality PCB connector solutions.

Explore more products in our PCB Headers category.
