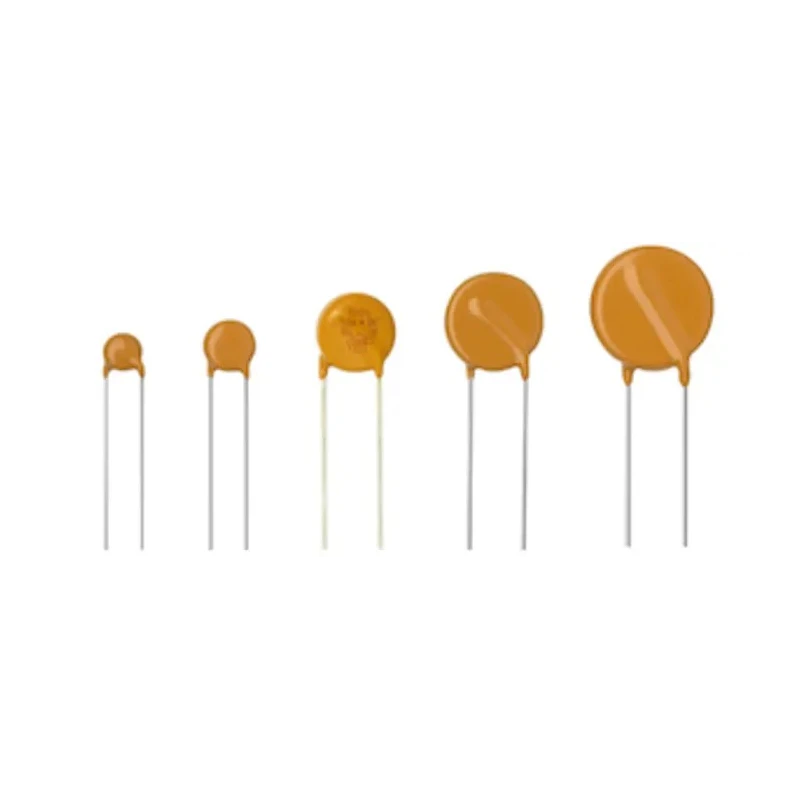

Vishay Metal Oxide Varistor 700 pF Capacitance 10 A Clamping Current 360 V Clamping Voltage VDRS07H060BSE

Vishay VDRS07H060BSE Metal Oxide Varistor is a high-quality surge protection component designed to safeguard electronic circuits from voltage spikes and transient surges. With a capacitance of 700 pF and a clamping current of 10 A at a clamping voltage of 360 V, it ensures reliable protection in various industrial, laboratory, and electronics applications.

Constructed with a low β high purity zinc oxide disc coated with a halogen-free insulating epoxy, this varistor meets stringent environmental and safety standards, including UL 1449, CSA, VDE, and IEC 61051-1 certifications. Its radial termination style and through-hole mount type allow easy integration into existing electronic setups and printed circuit boards. It is especially suitable for surge protection in electronics, power connectors, and circuit assemblies.

The varistor features a compact yet robust form factor with a 9 mm diameter, 35 mm length, and 4.1 mm thickness, optimizing circuit space without compromising performance. It can operate safely in temperatures ranging from -40°C to 85°C and withstands surge currents up to 1.2 kA, providing durable and efficient protection against transient voltage.

Key design specifications include a maximum AC voltage rating of 680 V AC, a maximum DC voltage rating of 895 V DC, and an energy rating of 496 joules, making it suitable for demanding industrial electronics environments. The device has 2 pins with a 5 mm lead pitch designed for standard electronic assemblies.

This varistor is halogen-free and environmentally friendly, supporting sustainable manufacturing and operational practices. It is manufactured in China and adheres to high manufacturing quality standards ensuring consistent reliability.

Constructed with low β high purity zinc oxide disc for optimal performance. Features halogen-free insulating epoxy coating ensuring safety and environmental compliance. Designed with radial termination style and through-hole mount for easy installation.

Operates reliably between -40°C to 85°C operating temperature range. Capable of withstanding maximum surge current up to 1.2 kA with energy rating of 496J. Complies with UL 1449, CSA, VDE, and IEC 61051-1 standards for quality and safety assurance.

Compact dimensions: 9 mm diameter, 35 mm length, and 4.1 mm thickness. Pin count of 2 and lead pitch of 5 mm designed for typical printed circuit board layouts. Maximum AC voltage 680 V AC and maximum DC voltage 895 V DC.

Halogen free epoxy coating supports environmental safety. Explore more Varistors and surge protection components in the Electronics & Electricals category at EnvMart for industrial, manufacturing, and laboratory applications.
