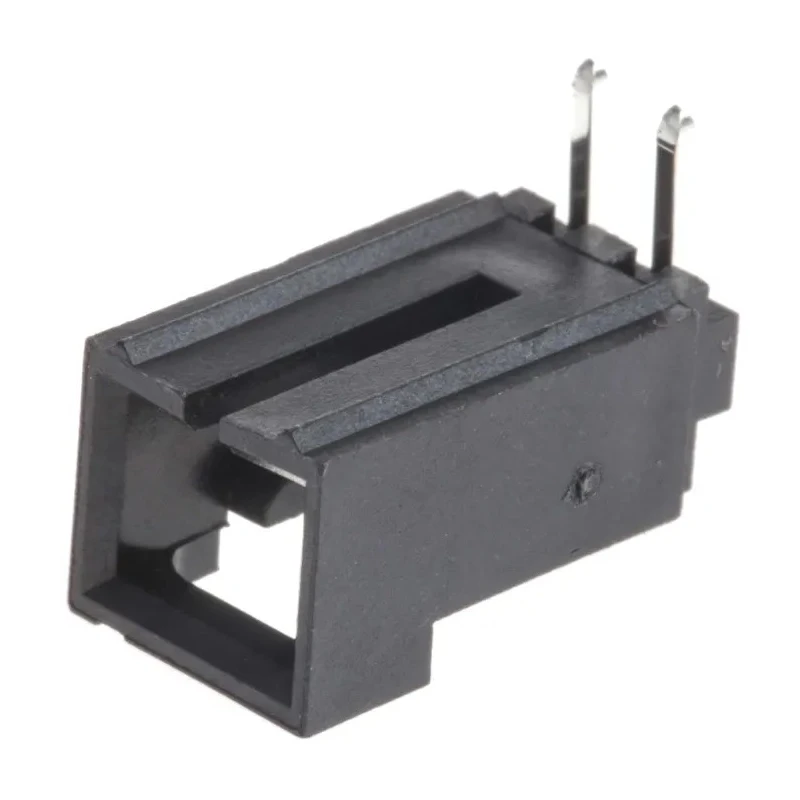

Molex SL Series Right Angle Through Hole PCB Header, 2 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70553-0036

Free Delivery in India | Lowest Global Shipping Charges

Molex SL Series Right Angle Through Hole PCB Header, 2 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70553-0036

Name: Molex SL Series Right Angle Through Hole PCB Header, 2 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70553-0036
Brand: Molex
SKU: 206272
Price: 1.75 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	United States
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	High Temperature Thermoplastic
Contact Material	Phosphor Bronze
Series	SL
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.3mm

Key Features

Features a shrouded design for reliable wire-to-board connections.
Constructed with high temperature thermoplastic housing for durability.
Utilizes phosphor bronze contacts plated with tin to ensure good conductivity.
Supports 3A current rating and 250V voltage rating for robust performance.
Single row layout with right angle orientation for versatile PCB applications.
Tail pin length of 3.3 mm with solder termination for secure mounting.
Operates safely in temperature range -40°C to 105°C.
Meets industry standards without specific approvals.

Product Description

Molex 70553-0036 is a Right Angle Through Hole PCB Header from the SL Series, designed with 2 contacts and a 2.54 mm pitch. It features a shrouded configuration that provides added protection and reliable wire-to-board connections ideal for diverse electronic applications.

The header is constructed using a high temperature thermoplastic housing that ensures longevity and resistance to heat. Contacts are made from phosphor bronze and plated with tin, combining good electrical conductivity with corrosion resistance. This connector supports a current of up to 3 amps and voltage rating of 250 volts, making it suitable for demanding industrial and commercial electronic assemblies.

The single row, right angle layout with a tail pin length of 3.3 mm facilitates secure solder termination to printed circuit boards. It operates efficiently within a temperature range of -40°C to 105°C. The product does not carry any specific standards or approvals but is made to industry best practices for PCB connectors.

This PCB header is ideal for use in electronics manufacturing, prototyping, industrial control systems, and commercial electrical assemblies. Its robust design supports applications requiring secure, high-quality wire-to-board connections.

Features a shrouded design for reliable wire-to-board connections. Constructed with high temperature thermoplastic housing for durability. Utilizes phosphor bronze contacts plated with tin to ensure good conductivity. Supports 3A current rating and 250V voltage rating for robust performance.

Single row layout with right angle orientation for versatile PCB applications. Tail pin length of 3.3 mm with solder termination for secure mounting. Operates safely in temperature range -40°C to 105°C. Meets industry standards without specific approvals.

Choose this Molex SL Series PCB header for assured connection quality and performance in your electronic components and systems. Browse more PCB connectors and accessories in this category to suit your design and manufacturing needs.
