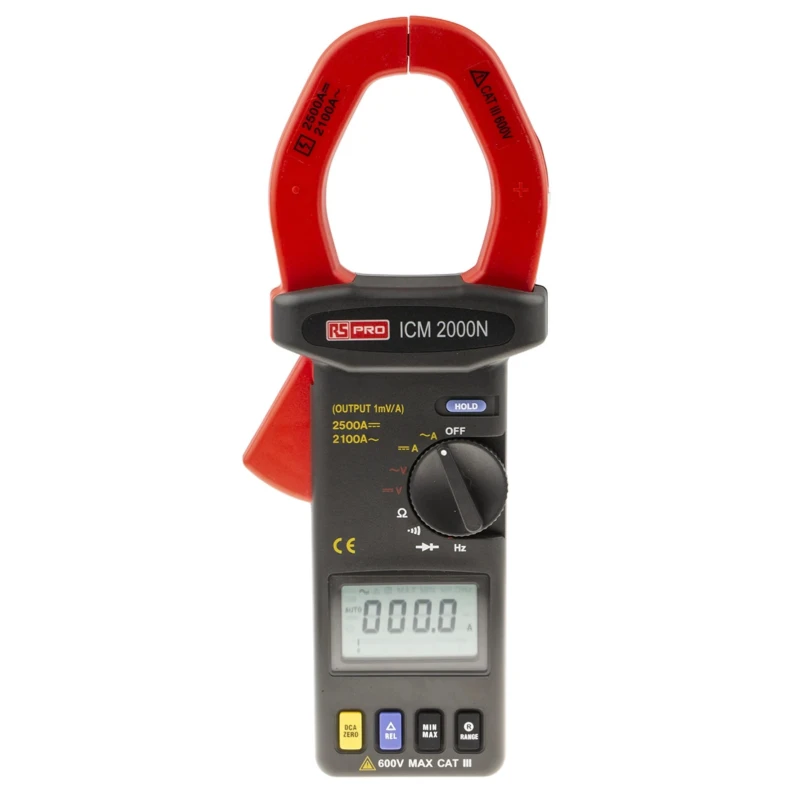

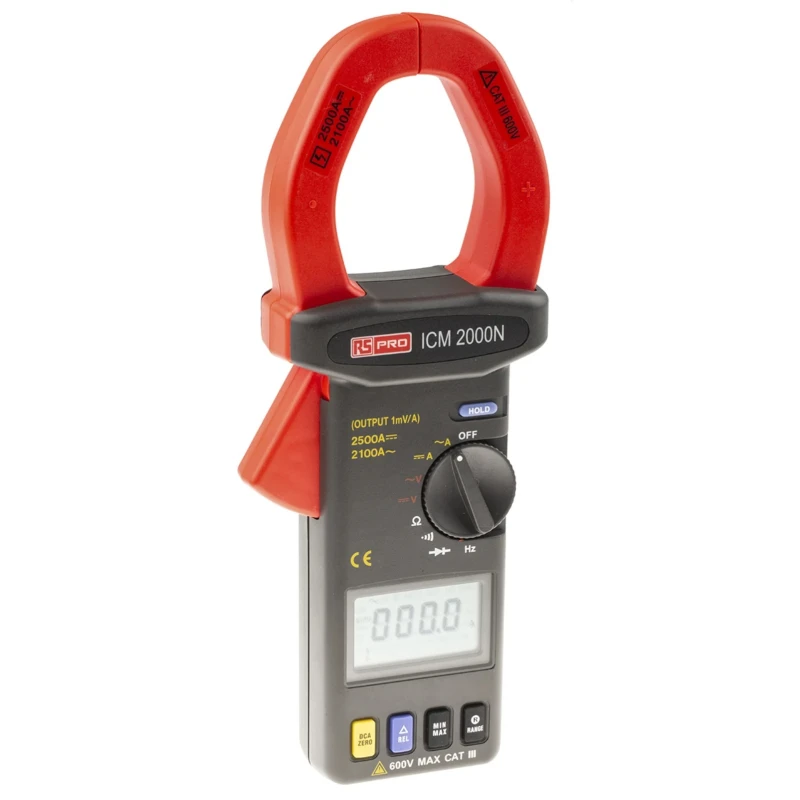

RS PRO Clamp Meter ICM2000N, 2.5 kA DC, 2.1 kA AC, 600 V DC/AC, True RMS, CAT III
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | LCD |
| Brand | RS PRO |
| Dimensions | 271 x 112 x 46 mm |
| Battery type | IEC 6F22, NEDA 1604 |
| Height | 271mm |
| Length | 112mm |
| Model | ICM2000N |
| Gross Weight | 647g |
| Width | 46mm |
| Maximum Operating Temperature | 40°C |
| AC Voltage Resolution | 100V ac |
| Minimum Operating Temperature | 0°C |
| DC Current Accuracy | ±1.5 % rdg + 3 Digits |
| DC Voltage Resolution | 100 V dc |
| Resistance Measurement Accuracy | ±1.5 % rdg + 3 Digits |
| AC Current Accuracy | ±1.5 % rdg + 5 Digits |
| Resistance Resolution | 100mΩ |
| DC Current Resolution | 100mA |
| Maximum Jaw Opening | 55mm |
| Standards/Approvals | RoHS |
| Functions Measured | AC Voltage, Resistance, DC Current, DC Voltage, AC Current, Frequency |
| Maximum Resistance Measurement | 40mΩ |
| Maximum AC Current Measurement | 2.1kA |
| Maximum DC Voltage Measurement | 600V dc |
| Maximum DC Current Measurement | 2.5kA |
| Maximum AC Voltage Measurement | 600V ac |
| Safety Category Level | CAT III |
| Safety Category Voltage | 600V |
| Maximum Conductor Size | 55mm |
| Clamp Meter Type | AC/DC Clamp Meter |
Key Features
- Measures AC and DC current up to 2.5 kA and 2.1 kA respectively.
- Supports voltage measurement up to 600 V DC/AC for versatile electrical testing.
- True RMS measurement ensures accuracy in complex waveforms.
- Large LCD display provides clear, easy-to-read results.
- Auto-ranging and one-touch zero for DCA for simplified operation.
- Designed for safe, contactless current readings with a 55 mm jaw opening.
- Functionality includes resistance, continuity with buzzer, max/min, and data hold.
- Robust build and RoHS compliance suit demanding industrial environments.
Product Description
RS PRO ICM2000N Clamp Meter combines advanced AC/DC digital current measurement capabilities with robust safety features for high-current industrial applications. This model offers measurement ranges up to 2.5 kA for DC and 2.1 kA for AC, making it ideal for electrical technicians, field engineers, and industrial maintenance professionals requiring accurate high-current testing.
Precision is achieved via True RMS computation and Hall effect technology, supporting reliable readings even in complex situations. The clamp meter is equipped with a large, easy-to-read LCD and auto-ranging features, allowing convenient operation in varied scenarios. One-touch zero adjustment for DCA and max/min data hold functions enhance usability.
The meter supports voltage measurement up to 600 V DC and AC, resistance up to 40 mΩ, and continuity testing with a buzzer alert. Its 55 mm jaw opening accommodates large conductors, while its CAT III safety category and RoHS approval ensure safe and compliant operation in demanding industrial contexts.
Highly accurate measurement of AC and DC currents up to 2.5 kA and 2.1 kA, respectively. 600 V DC and AC voltage measurement capacity expands use cases in diagnostics and commissioning. True RMS measurement capability allows correct readings on distorted waveforms.
Auto-ranging for A, V, and Ω makes setup simple and efficient. Robust LCD display and easy rotary switch for streamlined workflow. Data hold, max/min functions, and continuity buzzer provide diagnostic convenience. RoHS compliant and built for tough industrial environments.
Jaw opens up to 55 mm, suitable for thick cables and busbars.
Applications include industrial fault diagnostics, electrical maintenance, installation activities, and laboratory testing scenarios. The RS PRO ICM2000N Clamp Meter is suited for use in utility power plants, electrical substations, manufacturing sites, and contracted field services.
Explore the full range of RS PRO industrial measuring instruments and Clamp Meters on EnvMart for reliable, high-quality solutions to all your electrical testing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure AC current up to 2.1 kA and DC current up to 2.5 kA.
It supports voltage measurement up to 600 V for both AC and DC.
It includes auto-ranging, one-touch zero for DCA, a large LCD display, and functions like max/min and data hold for convenience.
The accuracy for DC current is ±1.5 % reading + 3 digits, while for AC current it is ±1.5 % reading + 5 digits.
The clamp meter has a maximum jaw opening of 55 mm, suitable for large conductors.
It can measure AC voltage, resistance, DC current, DC voltage, AC current, and frequency.
The dimensions are 271 x 112 x 46 mm, and it has a gross weight of 647 g.
The resolution for DC current is 100 mA, and for resistance, it is 100 mΩ.
The operating temperature range is from 0°C to 40°C.
Yes, it is RoHS compliant and designed to meet CAT III safety standards.
It uses an IEC 6F22, NEDA 1604 battery type.
It is suitable for industrial fault diagnostics, electrical maintenance, installation activities, and laboratory testing.
