Molex Micro-Fit 3.0 Series Straight Through Hole Shrouded PCB Header, 18 Contacts, 3 mm Pitch, 2 Row, 5A Current 43045-1812

Free Delivery in India | Lowest Global Shipping Charges

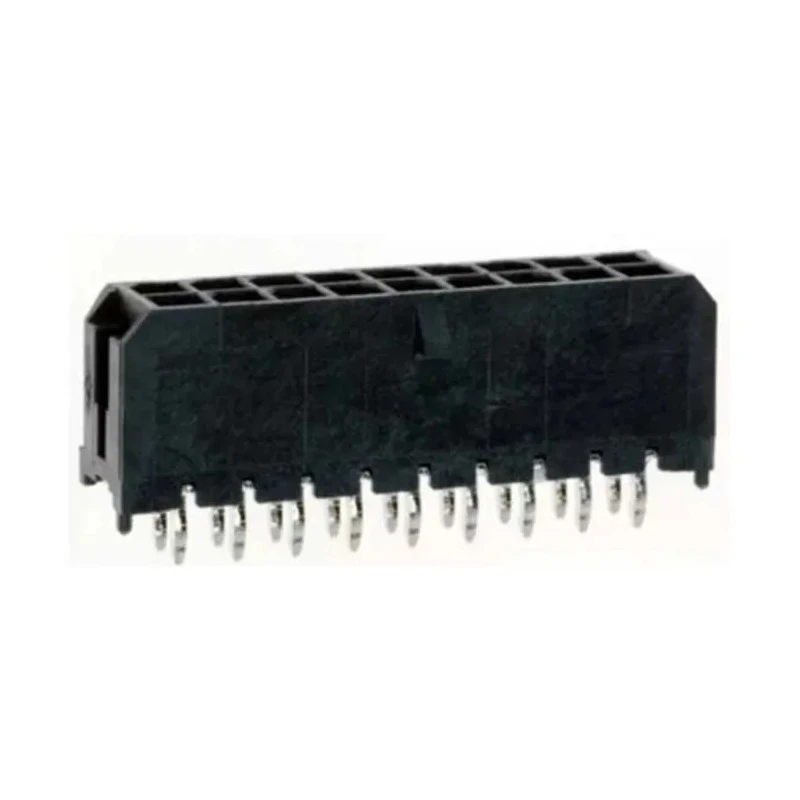

Molex Micro-Fit 3.0 Series Straight Through Hole Shrouded PCB Header, 18 Contacts, 3 mm Pitch, 2 Row, 5A Current 43045-1812

Name: Molex Micro-Fit 3.0 Series Straight Through Hole Shrouded PCB Header, 18 Contacts, 3 mm Pitch, 2 Row, 5A Current 43045-1812
Brand: Molex
SKU: 206234
Price: 2.22 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Straight
Current	5A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Brass
Series	Micro-Fit 3.0
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	3mm
Contact Plating	Tin
Number of Contacts	18
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

This header supports up to 5A current in a compact footprint.
Constructed from thermoplastic with brass tin-plated contacts.
Features positive latching for secure mating and prevention of accidental disconnection.
Suitable for IR reflow soldering with high-temperature UL 94V-0 housing material.
Includes PCB polarizing pegs and kinked solder legs for optimal PCB retention.
Operating temperature ranges from -40°C to 105°C for versatile application.
Compatible with wire-to-board connector systems in low to mid power electronics.
Ideal for applications in military, solar power, consumer appliances, telecom, gaming, and data communications.

Product Description

Molex 43045-1812 Micro-Fit 3.0 Series Straight Through Hole Shrouded PCB Header features 18 male contacts arranged in two rows with 3 mm pitch.

This PCB header is designed for wire-to-board connectivity, carrying up to 5A current with a voltage rating of 250V. Its thermoplastic housing is made from high-temperature UL 94V-0 Liquid Crystal Polymer, allowing it to withstand temperatures up to 265°C during IR reflow soldering, ensuring reliability and durability in manufacturing processes.

The header incorporates positive latching via a locking ramp on the housing to secure connections and prevent accidental disconnects. Tin-plated brass contacts provide solid electrical performance, and the contacts are fully isolated within the housing to reduce arcing and improve safety. The product design also includes PCB polarizing pegs to facilitate precise alignment and positioning, as well as kinked solder legs for enhanced PCB retention.

This connector suits a broad range of industrial and commercial applications such as military COTS equipment, solar power systems, consumer electronics (including dryers and refrigerators), telecommunications, gaming terminals, and data communication devices like routers and servers.

This PCB header supports up to 5A current in a small footprint. Housing is made of thermoplastic with UL 94V-0 flammability rating for high temperature durability. Features positive latching mechanism for secure mate. Includes PCB polarizing pegs for proper alignment and kinked solder legs for enhanced retention.

Rated for operation from -40°C to 105°C. Tin-plated brass contacts provide reliable electrical connectivity. Through hole mount with compatibility for SMT processes. Suitable for a wide variety of low to mid power applications.

This Molex Micro-Fit 3.0 Series PCB Header is a reliable solution for power distribution in industrial, laboratory, construction, HVAC, manufacturing, and commercial electronic device assemblies. Browse the EnvMart PCB Headers category for related compact power connector systems and board-mount connector solutions.
