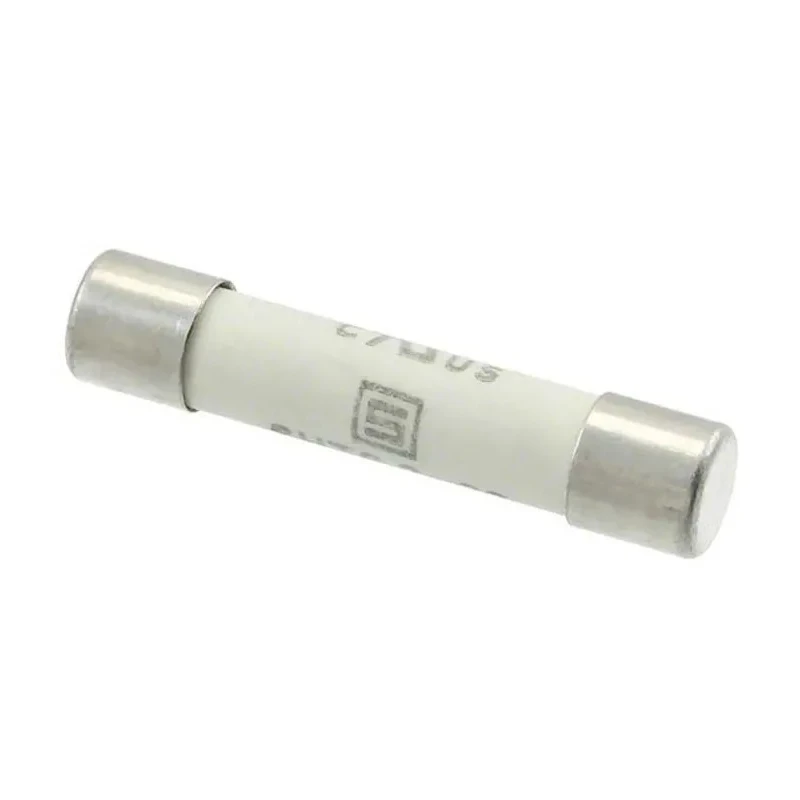

Schurter 12.5A Time Delay Ceramic Cartridge Fuse 6.3 x 32 mm 500V ac 8020.5022.G

Free Delivery in India | Lowest Global Shipping Charges

Schurter 12.5A Time Delay Ceramic Cartridge Fuse 6.3 x 32 mm 500V ac 8020.5022.G

Name: Schurter 12.5A Time Delay Ceramic Cartridge Fuse 6.3 x 32 mm 500V ac 8020.5022.G
Brand: Schurter
SKU: 210193
Price: 1.04 USD
Availability: InStock



Category Cartridge Fuse Brand Schurter Condition New

Specifications

Country of Origin	China
Voltage	500V ac
Diameter	6.3mm
Brand	Schurter
Body Material	Ceramic
Model	8020.5022.G
Overall Length	32mm
Current Rating	12.5A
Series	SHT 6.3x32
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS, UKCA, CE, cURus, UL
Fuse Characteristics	Time Delay
Fuse Size	6.3 x 32 mm
UL File Number	E41599
Approval Reference Type	SHT 6.3x32

Key Features

This fuse supports voltages up to 500V AC for reliable circuit protection.
The ceramic body ensures durability and thermal stability during operation.
Time delay fuse characteristics accommodate transient surges without nuisance opening.
Operating temperature ranges from -40°C to 85°C, suitable for diverse environments.
Compliance with RoHS, UKCA, CE, cURus, and UL standards guarantees quality and safety.
The fuse features a high breaking capacity of up to 1500 A for industrial applications.
Designed for use in 3-phase power systems, DC applications, photovoltaic systems, and power electronics.
Compact dimensions of 6.3 mm diameter and 32 mm length ensure easy integration in fuse holders.

Product Description

Schurter 8020.5022.G is a premium quality ceramic cartridge fuse designed for reliable electrical circuit protection. Rated for 12.5 amps with a time delay characteristic, this fuse measures 6.3 x 32 mm and supports voltages up to 500V AC, making it ideal for safeguarding sensitive components and circuits from overloads and short circuits.

The ceramic body offers excellent thermal resistance and mechanical strength, capable of operating within the temperature range from -40°C to 85°C. Its time delay characteristic permits short inrush currents without tripping, thus ensuring stable operation in power electronics, frequency converters, photovoltaic systems, and 3-phase industrial applications.

With a high breaking capacity reaching 1500 amps, this fuse is suitable for demanding applications requiring fast and safe disconnection of faulty circuits. It complies with multiple international standards including RoHS, UKCA, CE, cURus, and UL (UL file number E41599), reflecting its suitability for global industrial and commercial use.

The compact dimensions (6.3 mm diameter by 32 mm length) allow for easy installation in standard fuse holders. This product is manufactured in China, ensuring consistent quality and compliance.

This fuse supports voltages up to 500V AC for reliable circuit protection. The ceramic body ensures durability and thermal stability during operation. Time delay fuse characteristics accommodate transient surges without nuisance opening.

Operating temperature ranges from -40°C to 85°C, suitable for diverse environments. Compliance with RoHS, UKCA, CE, cURus, and UL standards guarantees quality and safety. The fuse features a high breaking capacity of up to 1500 A for industrial applications.

Designed for use in 3-phase power systems, DC applications, photovoltaic systems, and power electronics. Compact dimensions of 6.3 mm diameter and 32 mm length ensure easy integration in fuse holders. Originating from China, the product meets international certification requirements for global use.

Choose Schurter ceramic cartridge fuses for dependable protection across industrial, laboratory, manufacturing, power electronics, and electrical automation settings. Explore more Schurter products and Cartridge Fuses at EnvMart for premium quality and safety assurance.
