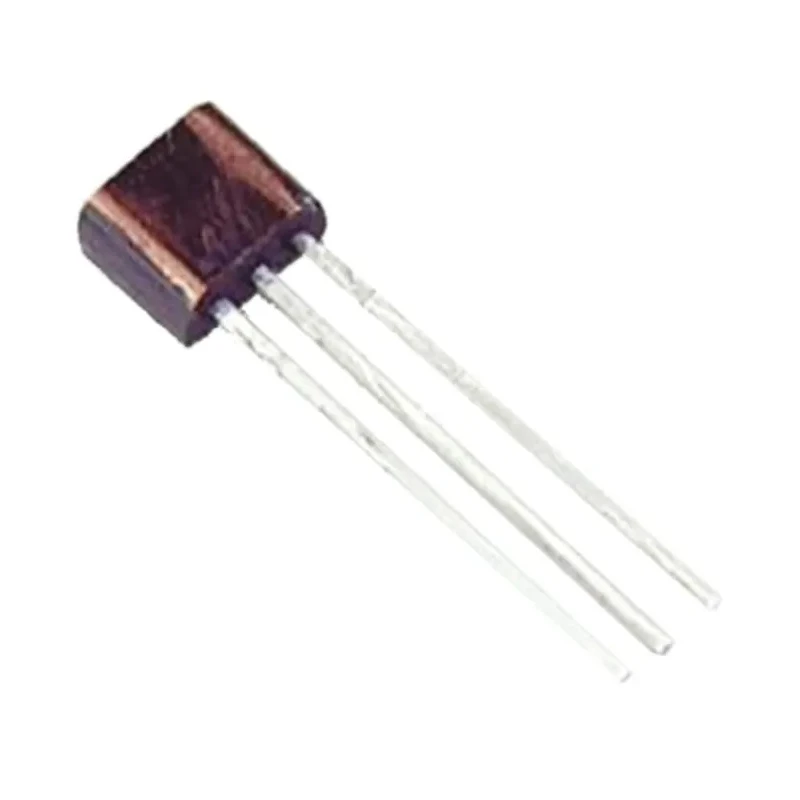

DiodesZetex PNP Bipolar Transistor 500 mA, 400 V, 3-Pin E-Line Through Hole ZTX758
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 17.98mm |
| Length | 4.77mm |
| Model | ZTX758 |
| Width | 2.41mm |
| Mount Type | Through Hole |
| Series | ZTX |
| Maximum Operating Temperature | 200°C |
| Package Type | E-Line |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -400V |
| Minimum DC Current Gain hFE | 40 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Base Voltage VCBO | 400V |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1W |
| Maximum DC Collector Current Idc | -500mA |
| Transistor Configuration | Single |
| Maximum Transition Frequency ft | 50MHz |
Key Features
- This transistor is designed for through-hole mounting to enhance ease of installation.
- It features a single transistor configuration with PNP polarity.
- Maximum power dissipation is rated at 1 watt for reliable operation.
- Operates within a temperature range of -55°C to 200°C, suitable for harsh environments.
- Designed with automotive standard AEC-Q101 qualification ensuring quality and durability.
- Maximum transition frequency is 50 MHz, ideal for medium frequency applications.
- Minimum DC current gain (hFE) is 40, providing amplification capabilities.
- Provides high voltage performance with maximum collector base voltage of 400 V and emitter base voltage of 5 V.
Product Description
DiodesZetex ZTX758 is a high voltage PNP bipolar transistor packaged in a 3-pin E-Line format optimized for through-hole mounting. It supports a maximum DC collector current of 500 mA and can withstand a collector emitter voltage up to 400 V, making it ideal for robust electronic and power management applications.
This transistor is suitable for a variety of industrial, electronic, and automotive use cases where medium power and moderate frequency switching or amplification are required. The device features a maximum power dissipation of 1 watt, enabling reliable performance under elevated load conditions.
Designed to meet the automotive standard AEC-Q101, the ZTX758 offers enhanced reliability for automotive electronics and other critical systems requiring stringent quality control.
The operating temperature range from -55°C to 200°C allows usage in harsh environmental conditions, ensuring device stability and longevity. Its maximum transition frequency of 50 MHz supports signal processing in medium frequency ranges.
This transistor is designed for through-hole mounting using a 3-pin E-Line package. Single PNP transistor configuration suited for switching and amplification. Maximum collector current and voltage ratings support a wide range of applications.
High operating temperature and power dissipation ratings enhance device durability. Compact dimensions facilitate integration into space-constrained circuits. Compliance with automotive AEC-Q101 standards. Compact size with precise electrical characteristics ensure application flexibility.
This product is commonly applied in industrial electronics, automotive control systems, consumer electronics, power supplies, and general discrete semiconductor applications. It fulfills the requirements for robust, high voltage switching applications and reliable amplification tasks.
Browse EnvMart for a comprehensive range of DiodesZetex bipolar transistors and other semiconductor devices designed to meet diverse industrial and electronic needs.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC collector current for the ZTX758 transistor is rated at 500 mA.
The maximum collector-emitter voltage (Vceo) for the ZTX758 is 400 V.
This model operates within a temperature range of -55°C to 200°C.
The maximum power dissipation for this transistor is 1 watt.
The minimum DC current gain (hFE) for the ZTX758 is 40.
The ZTX758 is packaged in a 3-pin E-Line format optimized for through-hole mounting.
This transistor complies with the automotive standard AEC-Q101, ensuring quality and reliability.
The maximum transition frequency for this model is 50 MHz, suitable for medium frequency applications.
The dimensions of the ZTX758 are 17.98 mm in height, 4.77 mm in length, and 2.41 mm in width.
The ZTX758 features a single PNP transistor configuration, suitable for switching and amplification.
The maximum emitter-base voltage (VEBO) for the ZTX758 is 5 V.
The ZTX758 is commonly applied in industrial electronics, automotive control systems, consumer electronics, and power supplies.
