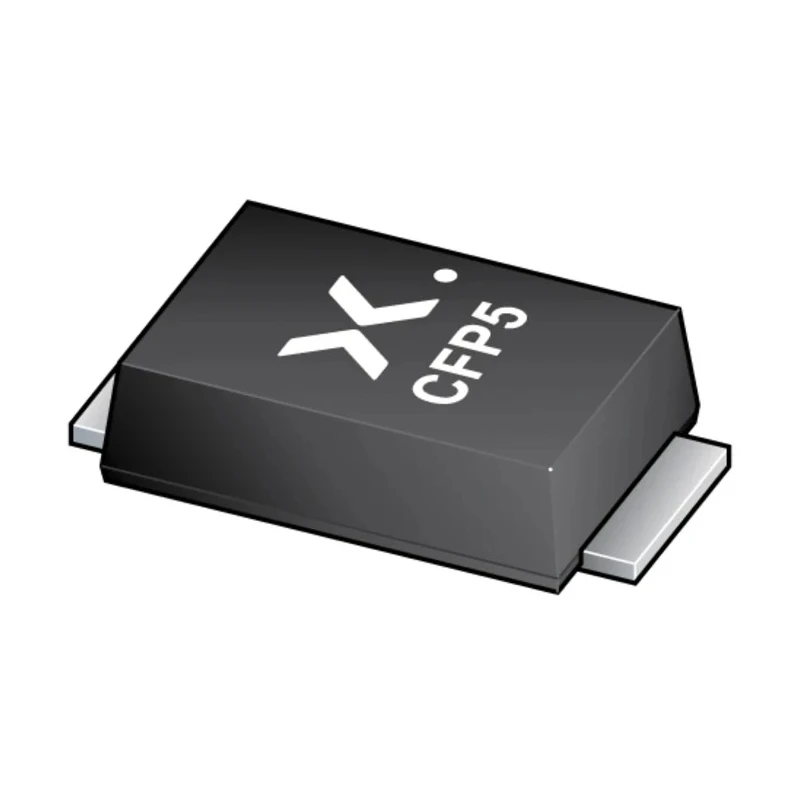

Nexperia Medium Power Low VF Schottky Diode 60 V 2.8 A 2-Pin SOD-128 Surface Mount PMEG6020ETP,115
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 4mm |
| Model | PMEG6020ETP,115 |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | PMEG6020ETP |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-128 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2.8A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 530mV |
| Peak Reverse Recovery Time trr | 8.6ns |
| Average forward current | IF(AV) ≤ 2 A |
| Reverse voltage | VR ≤ 60 V |
Key Features
- The device is surface mount with a compact SOD-128 package for space-saving PCB designs.
- Maximum continuous forward current is 2.8 A, allowing medium power applications.
- It features a low forward voltage (530 mV) to reduce power losses and extend battery life.
- Peak reverse repetitive voltage is rated at 60 V for robust diode operation.
- Maximum operating junction temperature reaches up to 175 °C, supporting high temperature environments.
- Compliant with automotive standard AEC-Q101, supporting automotive and industrial use cases.
- Pin count is 2 with single diode configuration suitable for rectification and protection circuits.
- Peak reverse current is low at 100 mA, enhancing efficiency and reducing leakage.
Product Description
Nexperia PMEG6020ETP,115 is a medium power low forward voltage (VF) Schottky diode designed for semiconductor and electronic component applications. It comes in a surface mount 2-pin SOD-128 package, making it suitable for compact and high-efficiency circuit boards.
This diode supports a maximum continuous forward current (If) of 2.8 A and a peak reverse repetitive voltage (Vrrm) of 60 V, ensuring reliable operation in various power supply, rectification, and battery management circuits. Its low forward voltage of 530 mV helps minimize power losses, thereby enhancing energy efficiency.
The device is AEC-Q101 qualified, making it compliant with automotive industry standards and suitable for demanding applications requiring high reliability and extended temperature ranges up to 175 °C junction temperature.
With a peak reverse recovery time of 8.6 nanoseconds and a peak non-repetitive forward surge current of 50 A, this Schottky diode delivers excellent transient response and robustness against surge conditions.
Its compact dimensions (4 mm length, 2.7 mm width, 1.1 mm height) allow for efficient space utilization on printed circuit boards, supporting miniaturization trends in electronics and automotive systems.
The compact SOD-128 surface mount package supports automated assembly techniques and space-saving designs. Low forward voltage and low leakage current improve power efficiency in DC-DC converters, power regulation modules, and battery protection circuitry.
High maximum operating temperature allows use in harsh thermal environments such as automotive engine compartments and industrial control units. AEC-Q101 certification ensures product reliability and suitability for automotive and industrial applications.
Ideal for use in power supplies, voltage clamps, rectifiers, and reverse polarity protection circuits across industrial, automotive, and commercial electronics sectors. Choose the Nexperia PMEG6020ETP,115 Schottky diode for robust, space-efficient rectification solutions with proven industrial-grade reliability.
Explore more semiconductor diodes and electronic components in EnvMart’s comprehensive catalog to meet your technical and application needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the PMEG6020ETP,115 is 2.8 A.
This model has a peak reverse repetitive voltage rating of 60 V.
The maximum forward voltage (VF) for this Schottky diode is 530 mV.
The dimensions of the SOD-128 package are 4 mm in length, 2.7 mm in width, and 1.1 mm in height.
The maximum operating junction temperature for the PMEG6020ETP,115 is 175 °C.
This diode is compliant with the automotive standard AEC-Q101.
The peak reverse current for this Schottky diode is rated at 100 mA.
The peak non-repetitive forward surge current for this diode is 50 A.
The minimum operating temperature for the PMEG6020ETP,115 is -55 °C.
This model features a single diode configuration suitable for rectification and protection circuits.
The peak reverse recovery time for this diode is 8.6 nanoseconds.
This diode is suitable for power supplies, voltage clamps, rectifiers, and reverse polarity protection circuits across various sectors.
