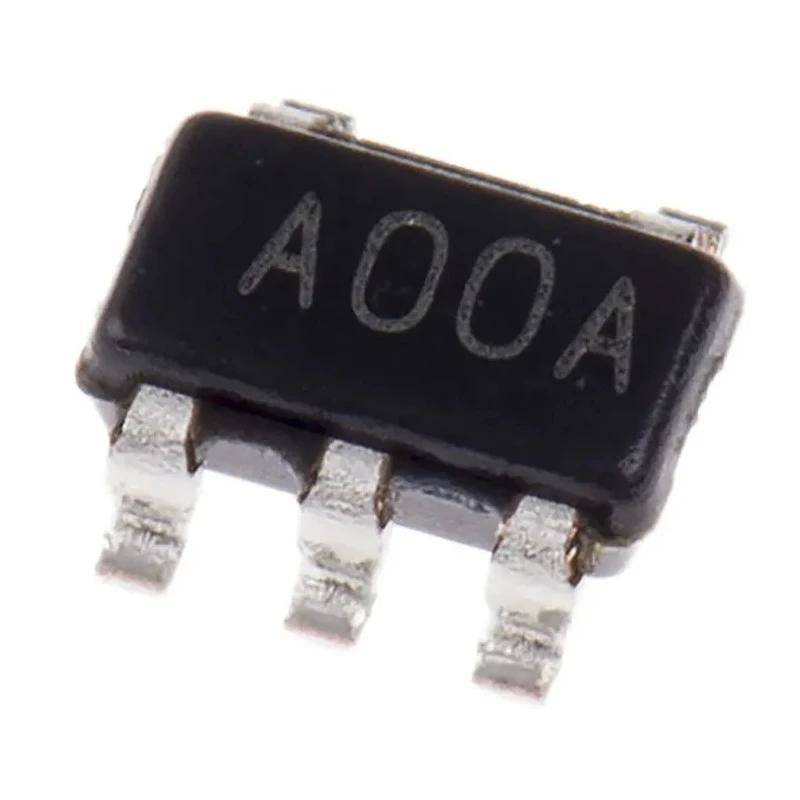

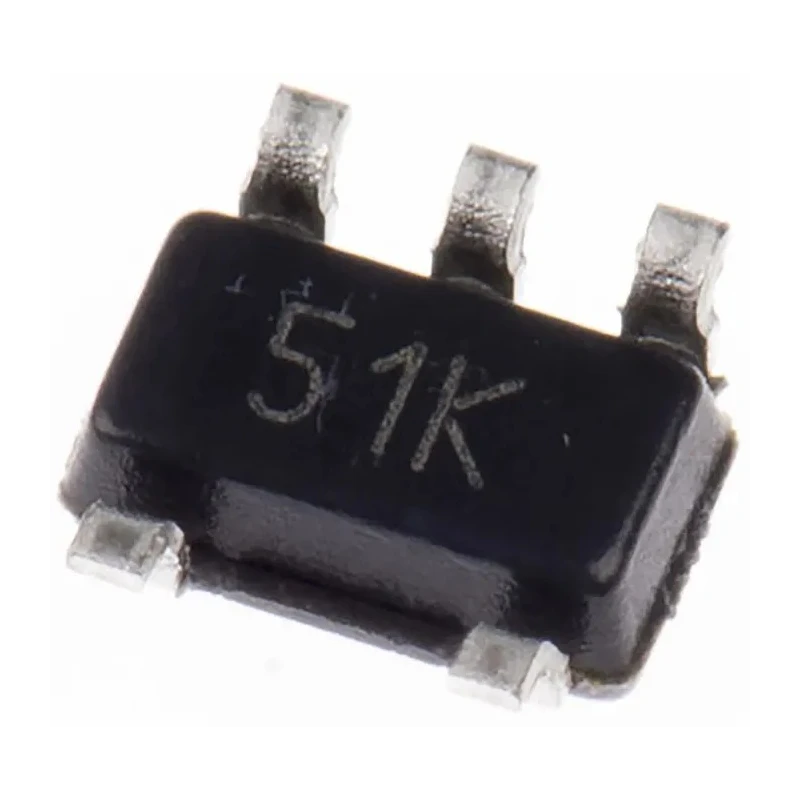

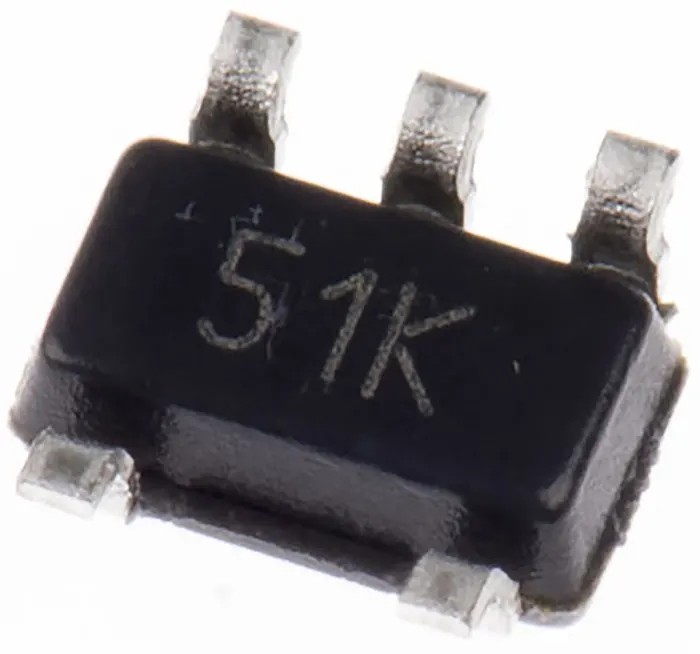

Texas Instruments TLV333IDBVT 350 kHz Zero-Drift Operational Amplifier, 5-Pin SOT-23, Rail-to-Rail Input/Output, 5.5V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.3mm |
| Length | 3.05mm |
| Model | TLV333IDBVT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TLV333 |
| Output Current | 5mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 350kHz |
| Input Bias Current | ±150 pA |
| Slew Rate | 0.16V/μs |
| Input Offset Current | 140 pA |
Key Features
- 350 kHz gain bandwidth for stable amplification.
- Zero-drift technology ensures low offset voltage and high accuracy.
- Operates with supply voltages from 1.8V to 5.5V.
- Rail-to-rail input and output for maximum signal range.
- Surface mount SOT-23, 5-pin for space-saving implementations.
- Low noise and low quiescent current suited for sensitive electronic applications.
- Wide temperature range from -40°C to 125°C increases environment compatibility.
- Output current up to 5mA enables versatile circuit designs.
Product Description
Texas Instruments TLV333IDBVT operational amplifier is engineered for demanding electronic applications requiring high precision and reliability. The device offers a gain bandwidth product of 350 kHz and is equipped with zero-drift architecture that minimizes offset voltage, delivering exceptional accuracy in analog signal processing.
This operational amplifier features rail-to-rail input and output for full signal utilization, operating within a supply voltage range from 1.8V to 5.5V. It's constructed in a compact SOT-23 5-pin surface mount package, making it ideal for integration into space-constrained designs without sacrificing performance.
The TLV333IDBVT's extremely low noise profile and quiescent current make it well-suited for portable and battery-powered products as well as low-power instrumentation. Designed to operate reliably across a wide ambient temperature range (-40°C to 125°C), the amplifier maintains performance integrity in industrial, laboratory, and commercial environments.
Additional features include low input bias and offset currents, RoHS compliance, and 5 mA output current capability to support diverse circuit topologies. Zero-drift characteristics (0.02 μV/°C) and low offset voltage (2 μV) ensure consistent signal fidelity for precision measurement systems.
Gain bandwidth of 350 kHz enables stable analog amplification. Zero-drift technology delivers low offset voltage (2 μV) for critical measurement tasks. Surface-mount SOT-23 package for compact, automated assembly. Wide power supply compatibility (1.8V - 5.5V).
Rail-to-rail input/output enhances dynamic range and signal processing capability. Low noise (1.1 μV p-p, 0.1 Hz - 10 Hz) supports sensitive applications. Wide operating temperature (-40°C to 125°C) for harsh environments.
Output current up to 5 mA supports various load requirements.
Applicable use cases include industrial process control, laboratory instrumentation, portable electronic devices, and precision analog designs. TLV333IDBVT is part of Texas Instruments' TLVx333 series, trusted for quality and performance in professional semiconductor applications.
Explore more Texas Instruments Operational Amplifier ICs and advanced analog solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 350 kHz, which enables stable analog amplification.
It operates within a supply voltage range of 1.8V to 5.5V, allowing for versatile applications in various electronic circuits.
This model can provide an output current of up to 5 mA, making it suitable for different load requirements in circuit designs.
The dimensions of the SOT-23 package are 3.05 mm in length, 1.75 mm in width, and 1.3 mm in height.
The TLV333IDBVT operates reliably across a wide temperature range from -40°C to 125°C, suitable for harsh environments.
It features a surface mount design, specifically in a SOT-23 package, suitable for space-constrained applications.
The input offset voltage for this operational amplifier is 2 μV, which contributes to its high accuracy in analog signal processing.
The input bias current is ±150 pA and the input offset current is 140 pA, ensuring low drift and high precision.
Yes, this operational amplifier is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
It is applicable in industrial process control, laboratory instrumentation, portable electronic devices, and precision analog designs.
The slew rate of the TLV333IDBVT is 0.16 V/μs, which affects the speed of response to changes in input signals.
This model features 2 channels, allowing for multiple signal processing applications in a single device.
