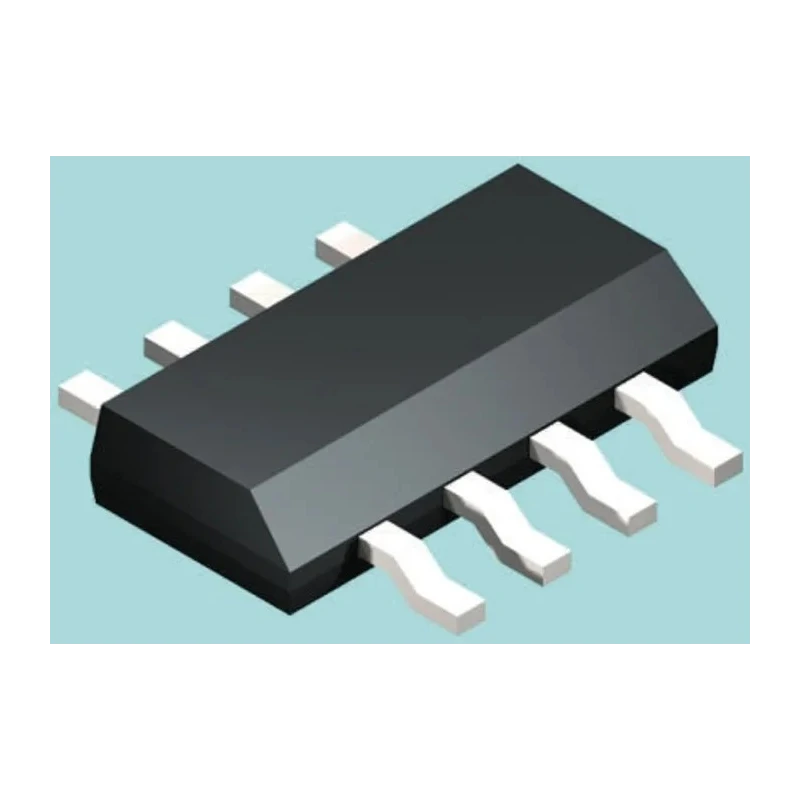

DiodesZetex Dual NPN and PNP Bipolar Transistor 2 A 45 V Surface Mount, 8 Pin ZDT6790TA

DiodesZetex ZDT6790TA dual NPN and PNP bipolar transistor is designed for surface mount applications where a compact, high-performance switching or amplification device is required. It supports a maximum DC collector current of 2 A and can withstand voltages up to 45 V between collector and emitter terminals. The device features an 8-pin package suitable for modern PCB mounting technologies.

This transistor is isolated in configuration, ensuring stable and reliable switching performance across a wide operating temperature range from -55°C to 150°C. With a power dissipation rating of 2.75 W, it efficiently manages thermal loads during operation.

The device exhibits a minimum DC current gain of 150, contributing to effective signal amplification, and a maximum transition frequency of 150 MHz, suitable for high-frequency electronic circuits and automotive applications. It meets the stringent AEC-Q101 automotive standard, confirming its robustness and reliability in harsh environments.

Physical dimensions are compact with measurements of 6.7 mm in length, 7.3 mm in width, and 1.7 mm in height, facilitating use in densely packed circuit boards. The ZDT6790TA transistor is manufactured in Germany assuring high-quality engineering standards.

Supports maximum DC collector current of 2 A. Operates with maximum collector-emitter voltage of 45 V. 8-pin surface mount package suitable for compact circuit designs. Transistor configuration is isolated for stable operation.

Maximum power dissipation is 2.75 W ensuring efficient heat management. Minimum DC current gain (hFE) of 150 for amplification efficiency. Wide operating temperature range from -55°C to 150°C for reliability. Maximum transition frequency up to 150 MHz supports high-speed applications.

Compliant with AEC-Q101 automotive standard for enhanced quality. Compact dimensions with length 6.7 mm, width 7.3 mm, and height 1.7 mm.

Ideal for industrial electronic circuits, automotive control systems, and power amplification applications. Explore the comprehensive range of Bipolar Transistors available on EnvMart for all your electronic component needs.
