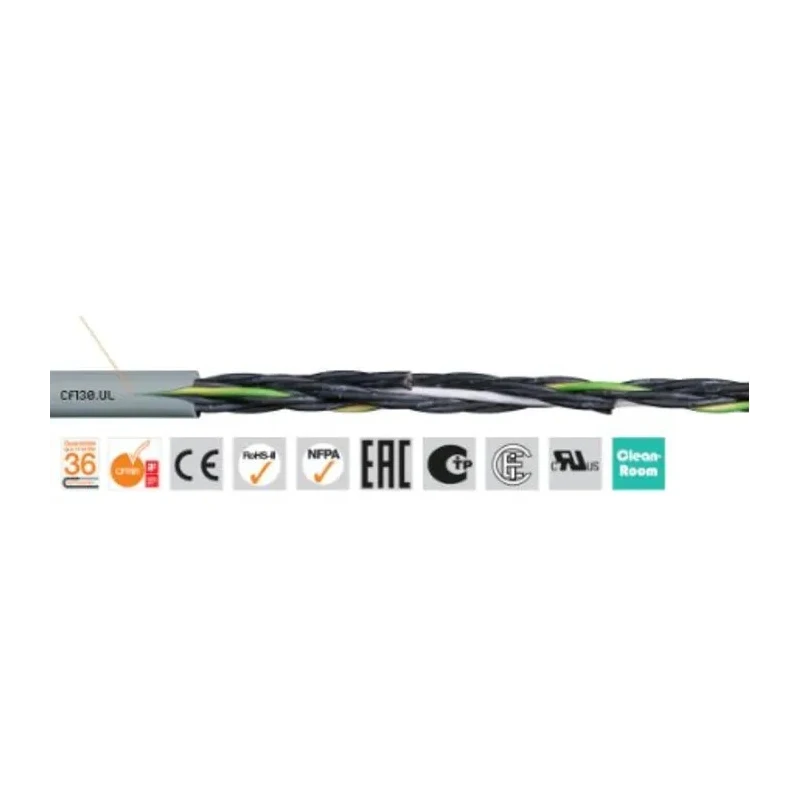

Igus Chainflex CF130.UL Control Cable, 7 Cores 0.75mm² 18 AWG Unscreened Grey Thermoplastic Elastomer CF130.07.07.UL (10m)
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF130.07.07.UL (10m) |
| Cable Length | 10m |
| Series | Chainflex CF130.UL |
| Outside diameter | 8mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 7 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 18AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 0.75mm² |
Key Features
- Designed for medium duty control cable applications indoors or outdoors above freezing temperatures.
- Features a patented core bundle design for small bend radii and excellent flexibility.
- Oil resistant Class 4 cable suitable for harsh chemical and oil environments.
- Rated for 300/500 V control cable applications with flame retardant sheath material.
- Temperature operating range from -15°C minimum to 70°C maximum.
- Flame retardant sheath compliant with IEC 60332-1-2 and other international standards.
- Stranded copper conductors ensure good electrical conductivity and flexibility.
- Manufactured in Germany under stringent quality controls.
Product Description
Igus brand CF130.07.07.UL (10m) Chainflex control cable is a 7 core cable with 0.75mm² (18 AWG) stranded copper conductors, enclosed in a grey thermoplastic elastomer (TPE) sheath. It is unscreened and measures 10 meters in length. This cable is designed primarily for medium duty applications where oils do not influence cable performance. It suits both indoor environments and outdoor settings above freezing temperatures.
The patented bundled core design ensures a small bend radius, enhancing flexibility which is ideal for use in e-chain systems or flexible control installations. The Class 4 oil resistance rating allows the cable to withstand harsh oil and bio-oil environments. Rated for 300/500 V, this cable complies with flame retardant standards IEC 60332-1-2, CEI 20-35, FT1, and VW1, making it suitable for safe industrial and automation environments.
Operating temperature ranges from -15°C minimum to a maximum of 70°C, supporting uninterrupted function in diverse temperature conditions. The cable is flame retardant, silicone free, and compliant with UL/CSA and NFPA standards, including NFPA 79-2018 chapter 12.9. It is also RoHS-II lead-free certified and meets clean room ISO Class 1 standards.
Typical applications include wood and stone processing, packaging machinery, handling and adjusting equipment, and supply systems. The cable is manufactured in Germany to strict quality standards and is supported by the Igus chainflex guarantee backed by extensive laboratory testing.
Designed for medium duty control cable applications indoors or outdoors above freezing temperatures. Patented core bundle design for long-lasting flexibility and small bend radius. Class 4 oil resistant sheath ideal for harsh chemical and bio-oil environments.
Rated 300/500 V suitable for control cable industrial applications. Operating temperature range from -15°C to 70°C. Flame retardant according to IEC 60332-1-2, CEI 20-35, FT1, VW1 standards. Stranded copper conductors ensure excellent conductivity and flexibility.
Silicone-free and RoHS-II lead-free compliance for safe use. Manufactured in Germany with high-quality standards and testing. Explore other products in our Control Cable category at EnvMart for solutions tailored to electrical and industrial wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 300/500 V applications, making it suitable for control cable use in industrial environments.
The operating temperature range for this cable is from -15°C to a maximum of 70°C.
It features 7 cores, each with a cross-sectional area of 0.75mm² (18 AWG).
The jacket is made from thermoplastic elastomer (TPE), which provides flexibility and resistance to oils.
The outside diameter of this cable is 8mm, and it has a length of 10 meters.
Yes, it is designed for both indoor and outdoor applications, provided they are above freezing temperatures.
It complies with several flame retardant standards including IEC 60332-1-2, CEI 20-35, FT1, and VW1.
The conductors are stranded copper, which ensures good electrical conductivity and flexibility.
This cable is flame retardant, compliant with relevant international standards for safety in industrial applications.
Typical applications include wood and stone processing, packaging machinery, and handling equipment.
This model is manufactured in Germany under stringent quality controls.
The CF130.07.07.UL cable is unscreened, designed for medium duty applications.
