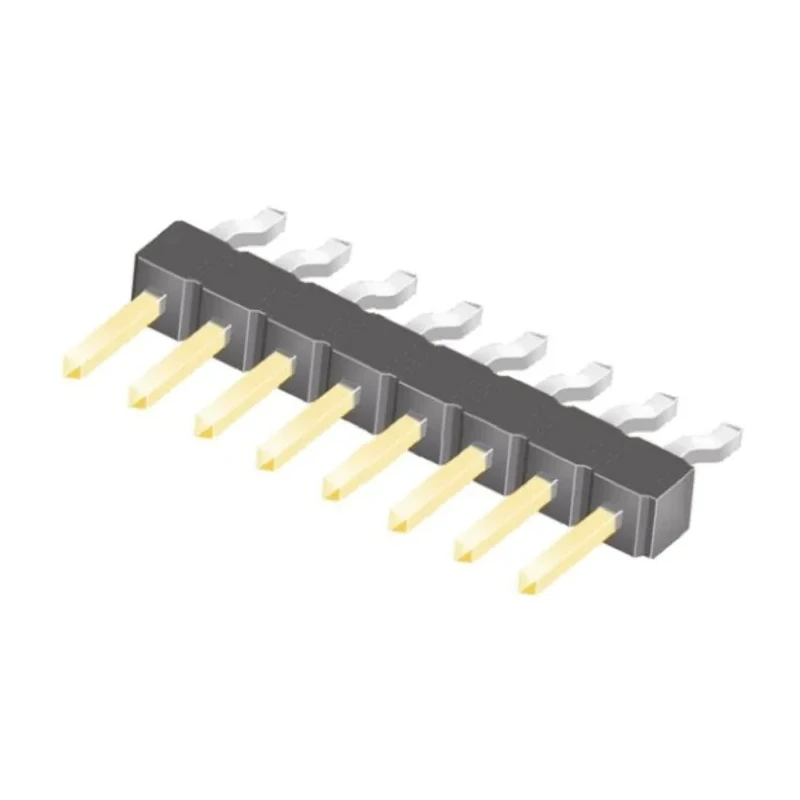

Samtec TSM Series Right Angle Surface Pin Header, 8 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded TSM-108-01-L-SH

Samtec TSM-108-01-L-SH is a right angle surface mount pin header designed for use in electronic components such as PCB pin connectors. It offers 8 male contacts arranged in a single row with a 2.54 mm pitch, providing efficient board-to-board and wire-to-board connectivity. The housing is made of black liquid crystal polymer which offers excellent durability and stability under operating conditions.

The contacts are crafted from phosphor bronze and plated with 0.25μm gold on mating posts for superior conductivity and corrosion resistance. The header supports a current rating of 7 ampere and a voltage rating of 475 volts, suitable for a wide range of electronic applications. The operating temperature range is from -55 to 125 degrees Celsius, making it reliable for industrial and commercial electronics environments.

This component features solder termination with a mating pin length of 5.84 mm ensuring stable connections when soldered onto circuit boards. Its unshrouded design enables easy access for testing and custom wiring applications. The right angle orientation enhances mounting flexibility and compatibility with adjacent components.

The TSM series from Samtec includes various configurations such as single and double rows, straight and right angle bodies, and options for different post lengths. This particular model with 5.84 mm post height is designed to mate with BCS standard box sockets and SSM surface mount socket strips, ensuring versatility for system builders.

Industrial applications include use in telecommunications, computer hardware, instrumentation, and embedded systems manufacturing. It excels in environments requiring reliable surface mount PCB connectors with consistent mechanical and electrical performance.

Liquid crystal polymer housing provides robust insulation and mechanical strength. Gold-plated phosphor bronze contacts for enhanced electrical performance. 7A current rating supports medium power electronic circuits. Right angle surface mount style suits compact and layered PCB designs.

Wide temperature tolerance ensures operational stability across climates. Unshrouded pin header allows versatile connection methods. Compatible with several socket series for flexible system integration. Ideal for high-reliability industrial and commercial electronic assemblies.
