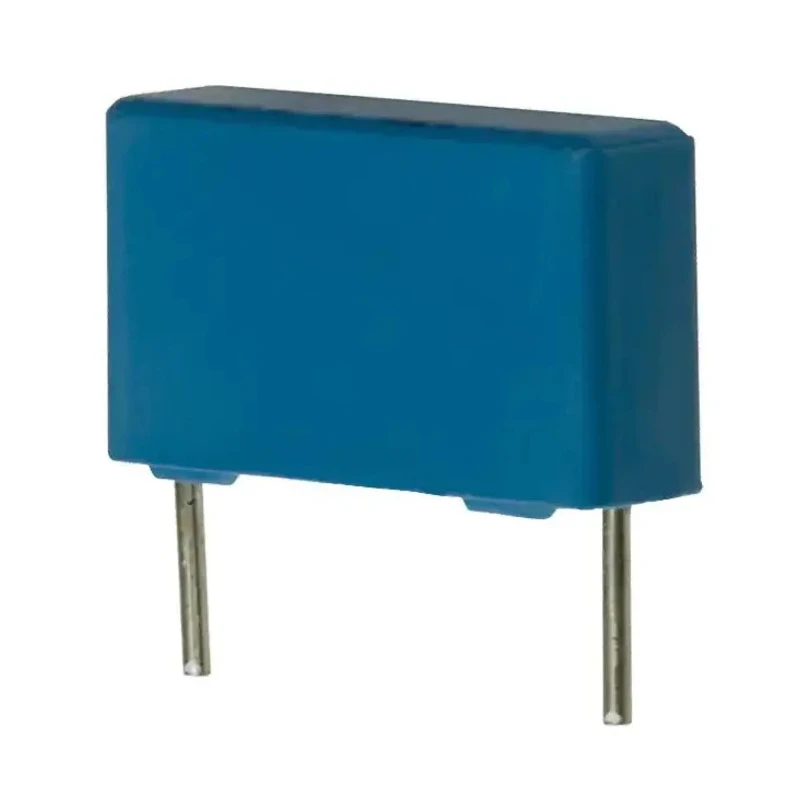

TDK Polypropylene Film Capacitor Through Hole Mount 22nF Capacitance 1kV AC 1kV DC B32652A0223J000

Free Delivery in India | Lowest Global Shipping Charges

TDK Polypropylene Film Capacitor Through Hole Mount 22nF Capacitance 1kV AC 1kV DC B32652A0223J000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	10.5mm
Length	18mm
Model	B32652A0223J000
Width	5mm
Mount Type	Through Hole
Series	B32652
Maximum Operating Temperature	110°C
Capacitance	22nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	1kV ac
Rated DC Voltage	1kV dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

The capacitor uses a polypropylene dielectric with metallized film construction ensuring high pulse strength.
Rated for a maximum operating temperature of 110°C, suitable for demanding electronic environments.
Features a lead pitch of 15 mm and lead diameter of 0.8 mm for secure through hole mounting.
Complies with automotive standard AEC-Q200 Rev D and RoHS and UL certifications for quality assurance.
Compact dimensions of 18 mm length, 10.5 mm height, and 5 mm width allow for space-efficient PCB placement.
Ideal for applications including electronic ballasts, switch-mode power supplies, IGBT circuits, and snubbering.
Plastic case and epoxy resin sealing enhance durability and performance reliability.

Product Description

TDK B32652A0223J000 polypropylene film capacitor is a high-performance through hole mounted electronic component, designed for both AC and DC voltages rated at 1 kV. It features a polypropylene dielectric material with a metallized film winding providing high pulse strength and very low inductance, which enhances the reliability in power electronic applications.

This capacitor is designed to operate at a maximum temperature of 110°C and features a plastic case with epoxy resin sealing to ensure mechanical stability and protection against environmental factors.

Its lead pitch is 15 mm with a lead diameter of 0.8 mm, making it suitable for standard through hole mounting on printed circuit boards. The compact size, with dimensions of 18 mm length, 10.5 mm height, and 5 mm width, supports efficient use of PCB real estate in densely populated assemblies.

The product conforms to automotive standard AEC-Q200 Rev D and has RoHS and UL approvals, ensuring it meets stringent quality and safety requirements. It is ideal for use in electronic ballasts, switch-mode power supplies, IGBT circuits, and snubbering applications where high pulsation and reliability are essential.

High pulse strength and contact reliability for demanding industrial use. Plastic case construction enhances durability and mechanical protection. Low inductance design for effective snubbering and power filtering. Compliance with automotive and safety standards guarantees quality assurance.

Suitable for industrial, electronic, automotive, and power supply manufacturing applications.

This polypropylene film capacitor is a reliable choice for engineers and designers needing robust passive components in electronic circuit designs. Browse EnvMart's extensive range of Film Capacitors for additional components and complementary electronic parts.
