Igus Chainflex CF130.UL Control Cable 5 Cores 0.5mm² 20 AWG Unscreened 25 m Thermoplastic Elastomer Sheath CF130.05.05.UL

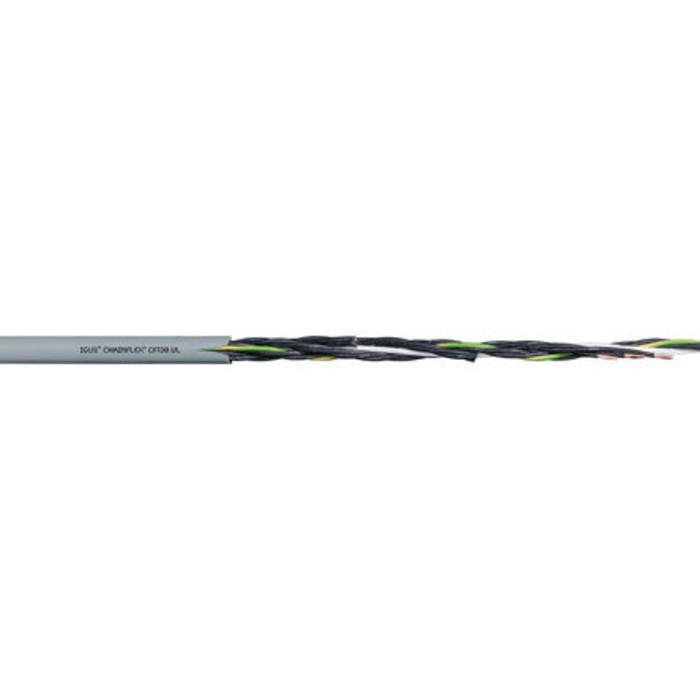

Igus CF130.05.05.UL Chainflex CF130.UL Control Cable is a high-quality medium-load cable featuring 5 cores of 0.5mm² (20 AWG) bare copper stranded conductors with a grey thermoplastic elastomer sheath.

This unscreened control cable is designed primarily for medium-load requirements in industrial, automation, and electrical control environments, especially where torsion resistance and flame-retardance are important.

The cable operates safely within a voltage rating of 300 and 500V and supports operating temperatures from -5°C up to 70°C, making it suitable for a wide range of indoor applications.

Its sheath material consists of a low-adhesion PVC mixture that complies with DIN VDE 0282 Part 10, adapted specifically to Energy Chains®, providing excellent durability and oil resistance while also being silicon-free.

The cable’s flame retardance conforms to IEC 60332-1-2, CEI 20-35, FT1, and VW1 standards, ensuring safety in critical electrical installations.

This control cable is optimally suited for freely suspended travel distances up to 50 meters and gliding applications, providing reliability in dynamic movement scenarios such as robotics and automated machinery.

Manufactured in Germany, this cable aligns with EN and CE approvals, reflecting stringent quality and performance criteria. Constructed with fine-wire stranded bare copper conductor wires for flexibility and conductivity.

Grey thermoplastic elastomer outer sheath adapted for energy chain compatibility and durability. Unscreened design suitable for standard electromagnetic environments. Rated voltage: 300 and 500 volts for flexible industrial applications.

Operating temperature range: -5°C to 70°C to support diverse environments. Flame retardant per IEC 60332-1-2 and related standards for enhanced safety. Ideal for indoor and medium mechanical load conditions with torsion resistance.

Length: 25 meters, supports applications requiring moderate cable runs.

This product is ideal for electrical power and industrial cable solutions in industrial automation, manufacturing, and control panel wiring where quality, safety, and durability are paramount. Explore more cables and wires in the Control Cable category on EnvMart for industrial and commercial applications.
