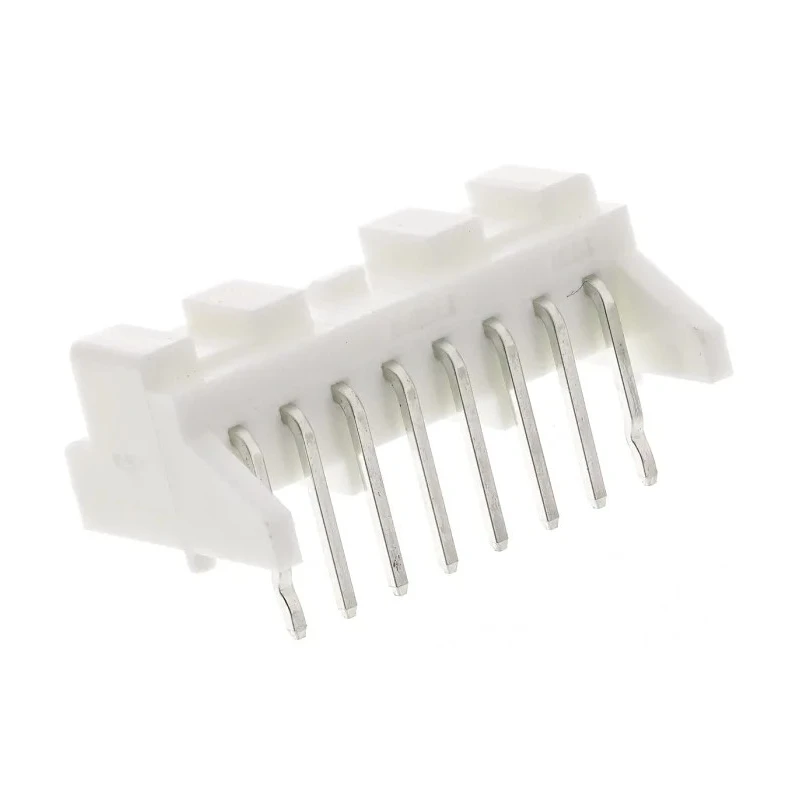

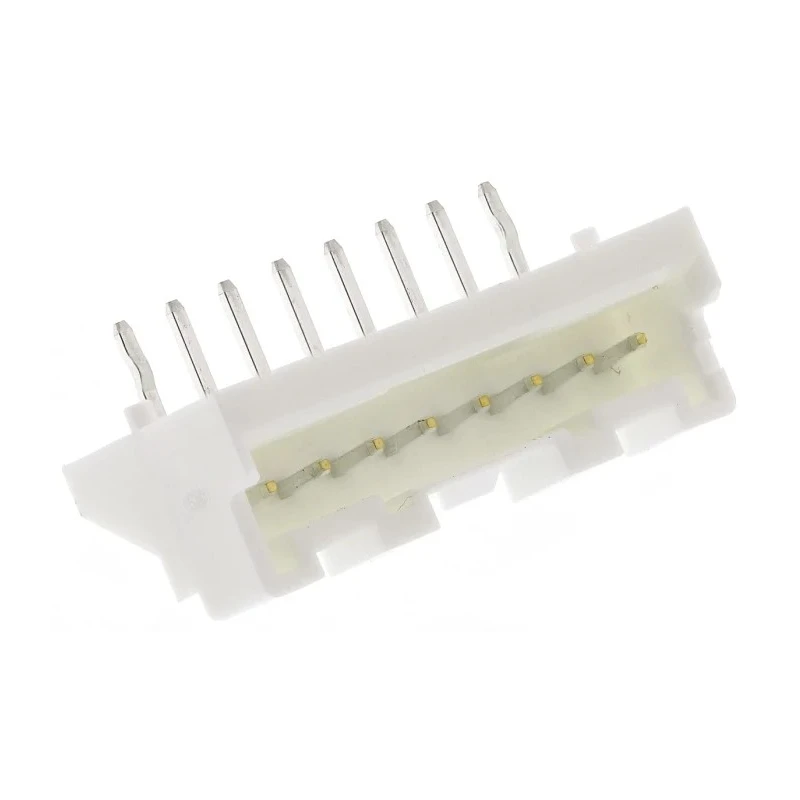

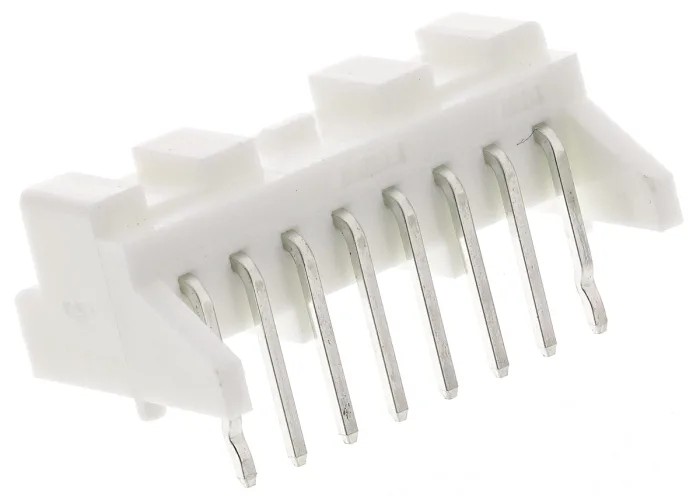

JST PA Series Right Angle Through Hole Shrouded PCB Header, 8 Contacts, 2 mm Pitch, 1 Row S08B-PASK-2 (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PA Series Right Angle Through Hole Shrouded PCB Header, 8 Contacts, 2 mm Pitch, 1 Row S08B-PASK-2 (LF) (SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Malaysia
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S08B-PASK-2 (LF) (SN)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	PA
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

Constructed with copper alloy contacts plated with tin for reliable conductivity.
Supports a maximum current rating of 3A and voltage rating of 250V.
Designed for solder termination with male contact gender, ensuring secure wire-to-board connections.
Operates within a temperature range of -25°C to 85°C for varied industrial environments.
Equipped with polarizing guides and a locking mechanism to prevent accidental disconnection and ensure anti-vibration stability.
Features a mating pin length of 3 mm to fit compatible housings.
Optimized for through hole mounting, enabling robust mechanical and electrical connections to PCBs.
Manufactured in Malaysia adhering to high-quality production standards.

Product Description

JST S08B-PASK-2 (LF) (SN) is a professional-grade shrouded PCB header designed with a right angle orientation and through hole mounting to ensure robust and secure connections in electronic assemblies. This 8-contact, single-row header features a 2 mm pitch, providing precise spacing for compact and reliable wire-to-board interfacing.

Manufactured from copper alloy contacts with tin plating, this component supports a continuous current of 3A and a voltage rating of 250V, making it suitable for various electronic and industrial applications. The male contact design terminates via soldering, enhancing mechanical endurance and electrical integrity.

Operating temperatures range from -25°C to 85°C, aligning with the demands of environments such as industrial electronics, automation systems, telecommunications, and computing devices. Its shrouded design combined with polarizing guides facilitates easy and secure insertion, while the thumb depress locking mechanism prevents inadvertent disconnections caused by vibrations or handling during assembly.

The 3 mm mating pin length is compatible with appropriate housing connectors, ensuring consistent assembly and maintenance efficiency. This product's right angle configuration is ideal for side-entry designs, maximizing space usage in printed circuit board layouts.

Copper alloy contact material plated with tin. Rated for 3A current and 250V voltage. Single row with 8 contacts at 2 mm pitch. Right angle orientation for side entry. Shrouded for secure mating with polarising guides. Through hole mount type with solder termination.

Operating temperature from -25°C to 85°C. Manufactured in Malaysia.

This JST PA series header is widely used in electronic manufacturing, industrial control, and telecommunications for reliable and vibration-resistant wire-to-board connections. Ideal for engineers and technicians seeking dependable PCB connectors for high-quality assembly. Explore additional components in the PCB Headers category on EnvMart to complement your electronic hardware needs.
