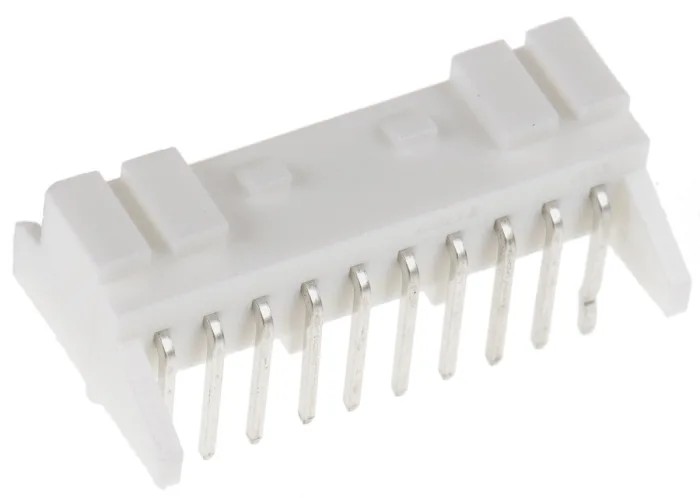

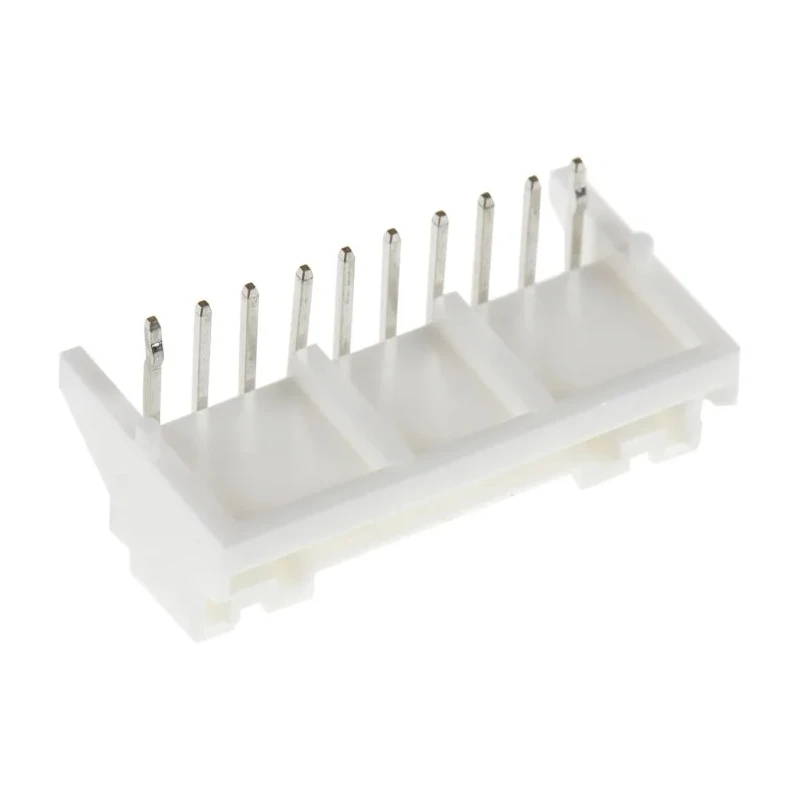

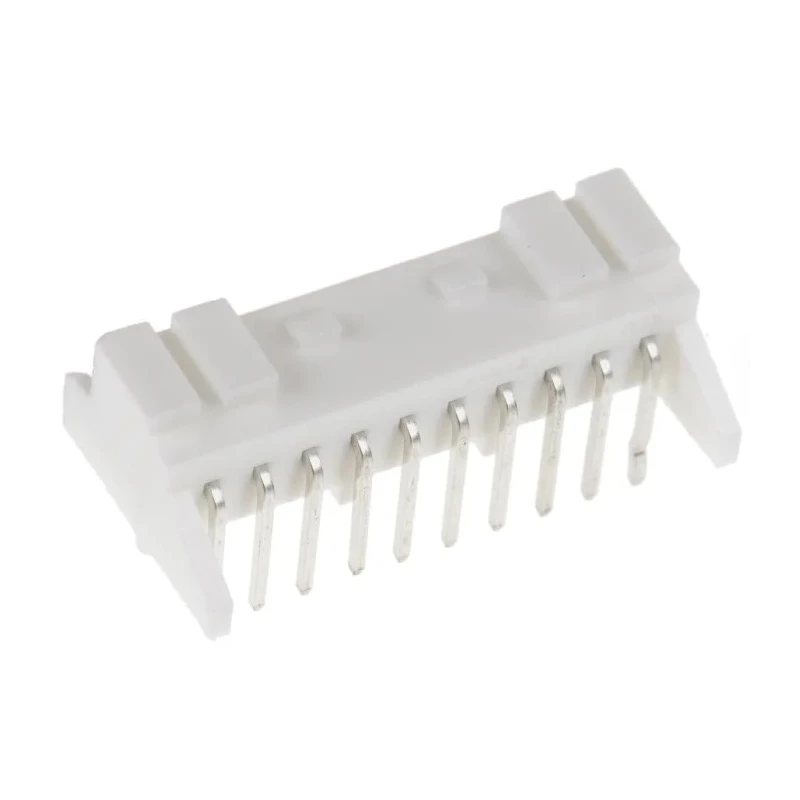

JST PA Series Right Angle Through Hole PCB Header, 10 Contacts, 2 mm Pitch, 1 Row, Shrouded S10B-PASK-2 (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PA Series Right Angle Through Hole PCB Header, 10 Contacts, 2 mm Pitch, 1 Row, Shrouded S10B-PASK-2 (LF) (SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S10B-PASK-2 (LF) (SN)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	PA
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

The connector system is wire-to-board with a right angle orientation to optimize PCB layouts.
It has a shrouded housing for enhanced protection and polarising guides for easy insertion.
Constructed with copper alloy contacts plated in tin for durability and conductivity.
Rated for 3A current and 250V voltage, suitable for various electronic applications.
Operates between -25°C and 85°C, making it reliable under diverse environmental conditions.
Mating pin length is 3mm, facilitating secure solder termination.
The header is through-hole mount type, ensuring robust mechanical connection to PCBs.
Designed with a thumb depress locking mechanism to prevent accidental disconnection under vibration.

Product Description

JST S10B-PASK-2 (LF) (SN) PA Series Right Angle Through Hole PCB Header is a precision-engineered electronic component designed for secure wire-to-board connections with a 2 mm pitch and 10 contact points arranged in a single row. Featuring a shrouded housing, it provides reliable protection and prevents incorrect connections through polarising guides.

The right angle orientation allows for compact PCB designs and optimized space management on electronic assemblies. Constructed from copper alloy contacts with tin plating, this header ensures excellent electrical conductivity and corrosion resistance. Its through-hole mounting type guarantees a strong mechanical fixation on printed circuit boards.

Rated for a voltage of 250 volts and capable of carrying a current of up to 3 amperes, it supports a wide range of electronic applications in industrial, manufacturing, laboratory, and consumer electronics sectors. The operating temperature ranges from -25°C to 85°C, ensuring performance stability across typical environmental conditions.

The mating pin length of 3 mm facilitates reliable solder connections, while the thumb depress locking mechanism prevents accidental disconnections caused by vibration or assembly handling. This component offers a robust and vibration-resistant interface suitable for precision electronics and industrial equipment wiring.

The connector system is wire-to-board with a right angle orientation for efficient PCB utilization. Designed with shrouded construction and polarising guides for secure and correct connections. Copper alloy contacts with tin plating ensure high conductivity and resistance to corrosion.

Rated for 3A current and 250V voltage, meeting diverse application requirements. Through-hole mount with a 3 mm mating pin length for durable solder joints. Supports temperature range from -25°C to 85°C for reliable operation.

Thumb depress locking mechanism provides secure anti-vibration functionality. Suitable for applications in industrial electronics, manufacturing, laboratory and consumer devices. No specific certifications claimed, offering standard quality as per JST PA series.

Enables efficient and safe wire-to-board interconnections in complex PCB assemblies. Explore more JST electronic components and PCB Headers at EnvMart for your industrial, laboratory, and manufacturing needs.
