Hirose 0.5 mm Pitch 30 Way Straight Female FPC Connector, Solder FH34SRJ

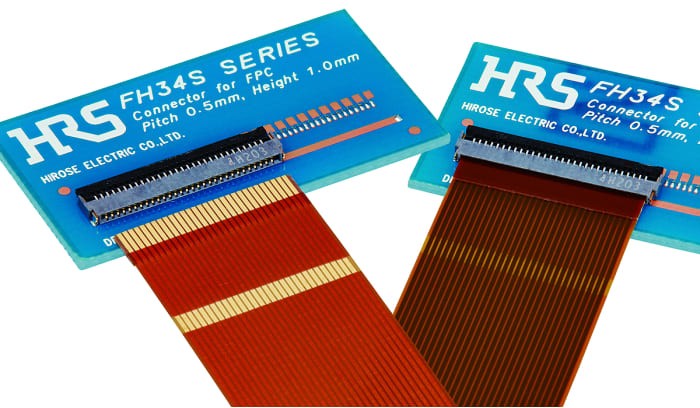

Hirose FH34SRJ 0.5 mm Pitch 30 Way Straight Female FPC Connector, model FH34SRJ, is a high quality surface mount ZIF connector designed for reliable electrical connections in compact electronic devices. It features a 0.5 mm contact pitch and 30 contacts arranged in a single row, offering a low profile height of 1.00 mm and a narrow width of 3.8 mm, suitable for space-constrained applications.

The connector incorporates a back-flip rotating actuator that opens from the rear, facilitating easy insertion of flexible printed circuits (FPC) or flat flexible cables (FFC) with minimal effort. When the actuator is fully closed, it provides a tactile click to confirm a secure lock, ensuring high retention force and stable mechanical and electrical performance.

Constructed with phosphor bronze contacts plated with nickel and gold, this connector supports a current rating of 500 mA and a voltage rating of 50 V AC. Its operating temperature range extends from -55°C to 85°C, making it reliable in diverse environmental conditions.

The design includes top and bottom contact positions for flexible PCB routing, with inner housing chamfers to ease cable insertion. The bottom is solid to prevent exposure of contacts and allow mounting over conductive PCB traces. The connector housing uses halogen-free materials compliant with IEC61249-2-21 standards, including liquid crystal polymer and polyamide, enhancing safety and environmental compatibility.

This FH34SRJ connector is ideal for industrial and commercial applications such as mobile phones, notebook computers, DVD players, and LCD monitors, where high density and reliable interconnections are crucial. Its flat upper surface allows for automated vacuum pick-up and placement during assembly.

Designed for industrial, laboratory, and consumer electronics applications. Ensures robust mechanical and electrical connection with zero insertion force (ZIF) technology. Compliance with halogen-free environmental standards.

Compact dimensions support integration in space-limited device layouts. Package contents include the connector with actuator pre-set open for immediate cable insertion. Explore similar high-performance FPC Connectors and related electronic components in the EnvMart catalog for your project needs.
