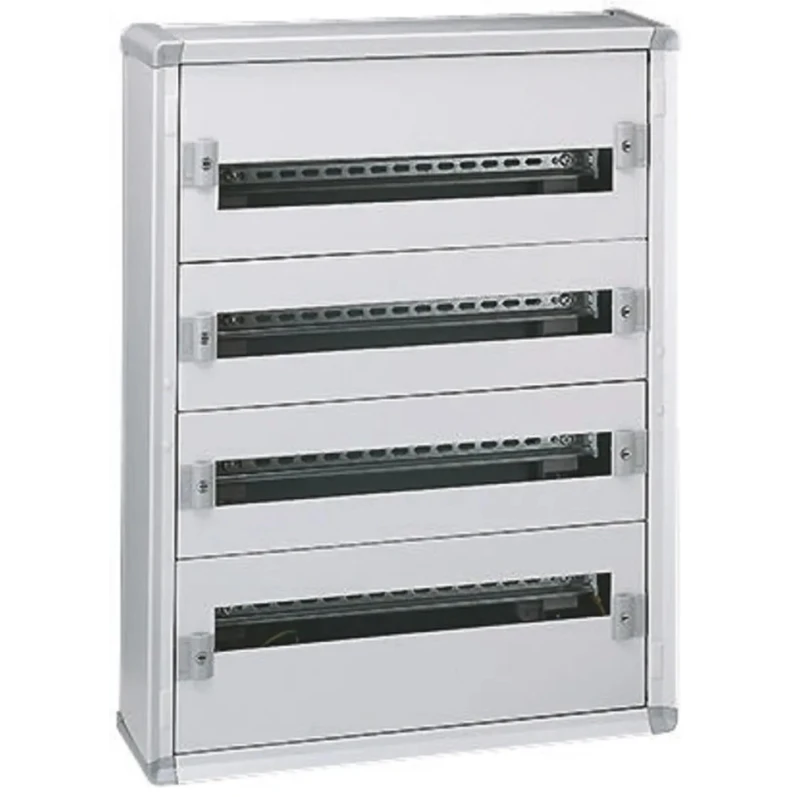

Legrand Configured for Split Load Metal Consumer Unit, 160A, RoHS, REACH IP43, Grey Metal Housing XL160 0 200 04

Legrand 0 200 04 configured for split load metal consumer unit XL160 series delivers a sophisticated and durable solution tailored for electrical distribution and management in residential, commercial, and industrial environments. Featuring a current rating of 160A, this consumer unit complies with RoHS and REACH EU directives ensuring safe materials and environmental standards. The metal grey housing provides robust protection whilst maintaining a sleek industrial design.

The enclosure holds an IP43 rating which safeguards internal components from ingress of solid objects larger than 1mm and from water spray at any angle, making it suitable for indoor electrical installations where splash protection is required. The modular XL³ 160 distribution cabinet is designed to accommodate DPX 125 circuit breakers and other electrical modules with a capacity supporting 24 modules per row, offering excellent flexibility for electrical design and expansion.

Installation and maintenance are facilitated by a removable chassis with omega rails mounted for component fixing. The brass protective conductor bar fitted comes with 36 holes accommodating wires from 1.5 mm² to 10 mm² and additional 2 holes for 35 mm² conductors, providing versatile wiring options and effective earth continuity. Removable side panels and divisible upper and lower panels allow for the insertion of a cut-to-fit cable feed plate, enhancing cable management and installation adaptability.

Manufactured in France, this consumer unit assures quality and compliance with international standards. It is ideal for electrical distribution in industrial, commercial, and large residential settings where reliable current distribution and safety certification are essential.

Equipped with a metal housing finished in grey for enhanced durability. Rated for 160A current to manage high electrical loads safely. IP43 rated enclosure protects against solid objects and water spray. Includes a brass protective conductor bar with multiple hole sizes for flexible conductor connections.

Fully modular XL³ 160 distribution cabinet design supports DPX 125 integration. Removable chassis with omega rails for easy mounting of components. Capacity of 24 modules per row suitable for expansive electrical setups.

Removable side and top/bottom panels allow cut-to-fit cable feed plate insertion. Precision engineered in France ensuring high standards and quality. Explore more Consumer Units and electrical distribution solutions at EnvMart for enhanced safety and efficiency in your projects.
