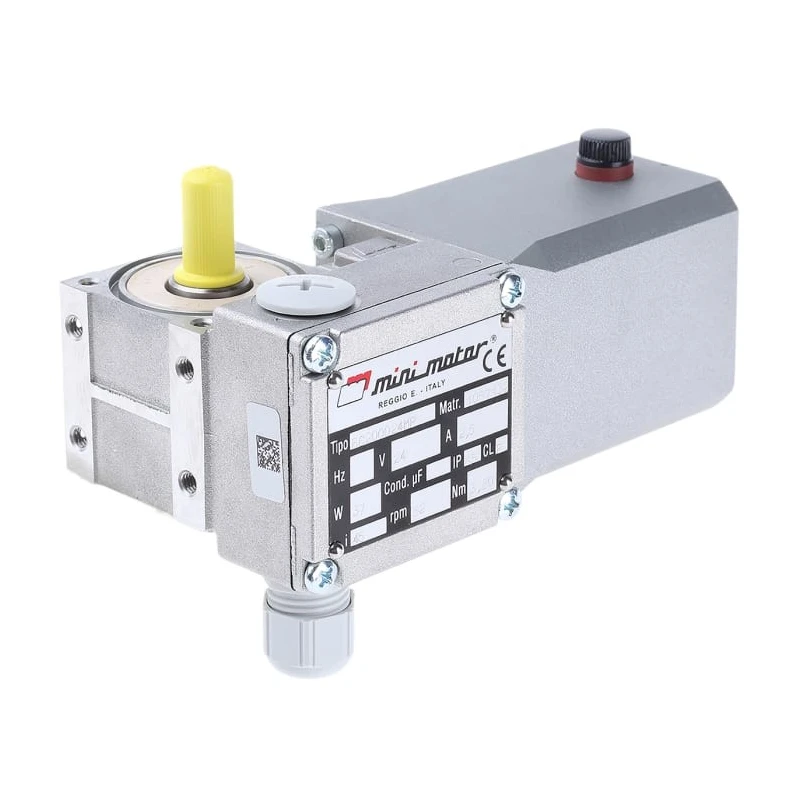

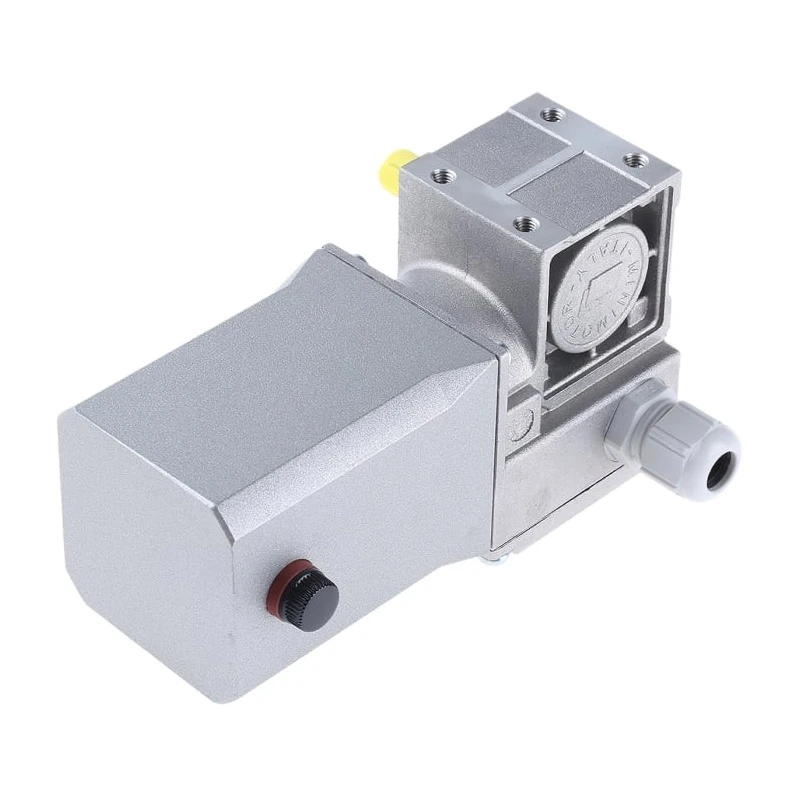

Mini Motor Brushed Geared DC Geared Motor 24V dc 37 W 3.8 Nm 62 rpm 9 mm Shaft Diameter BC2000 24 MP 45 B3

Mini Motor BC2000 24 MP 45 B3 is a brushed geared DC motor rated at 37 W, operating with a supply voltage of 24V dc. It is engineered for industrial and automation applications requiring precise low-speed and high-torque output.

This motor features a worm gearhead type with a 45:1 gear ratio, delivering an output speed of 62 rpm and a maximum torque of 3.8 Nm. The shaft diameter is 9 mm with a length of 13 mm, manufactured with h6 standard tolerance for accurate mechanical coupling. The gearbox casing is constructed of die-cast aluminium and lubricated with synthetic oil to ensure quiet, durable operation.

The motor’s iron core construction and Class F winding meet stringent VDE0530 standards, while IP65 insulation rating protects against dust and water ingress. It includes a standard B3 foot mount for stable and versatile installation in various industrial settings.

Compact and robust, the motor has precise dimensions: length 139.5 mm, width 77.5 mm, and depth 55.5 mm. This product is RoHS compliant and made in Italy, aligned with quality assurance and environmental regulations.

Operates at 24V dc supply voltage with 37 W power rating. Output speed is 62 rpm providing controlled motion in machinery. Maximum torque of 3.8 Nm for demanding mechanical loads. Worm gearhead with a 45:1 gear ratio for torque amplification and speed reduction.

Rigid aluminium gearbox and iron core for durability and stability. Standard B3 foot mounting for ease of integration. Shaft diameter of 9 mm with 13 mm length meets precision standards. Class F winding insulation and IP65 protection for robust environmental resistance.

Compact dimensions suitable for space-constrained industrial equipment.

This Mini Motor model is ideally suited for automation, electrical machinery, manufacturing, robotics, and HVAC systems demanding reliable DC geared motors with precise speed and torque characteristics.
