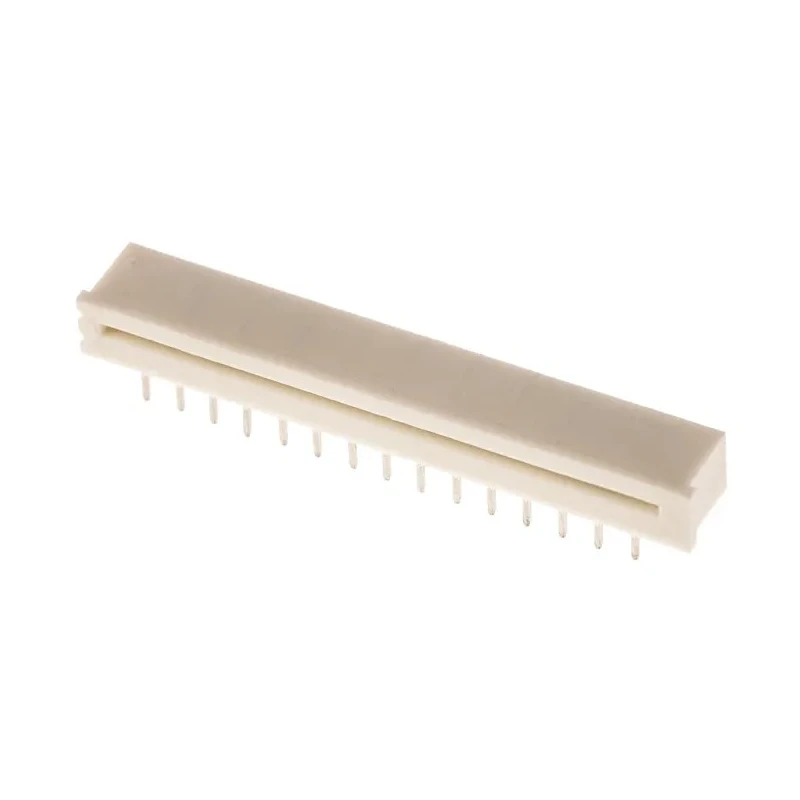

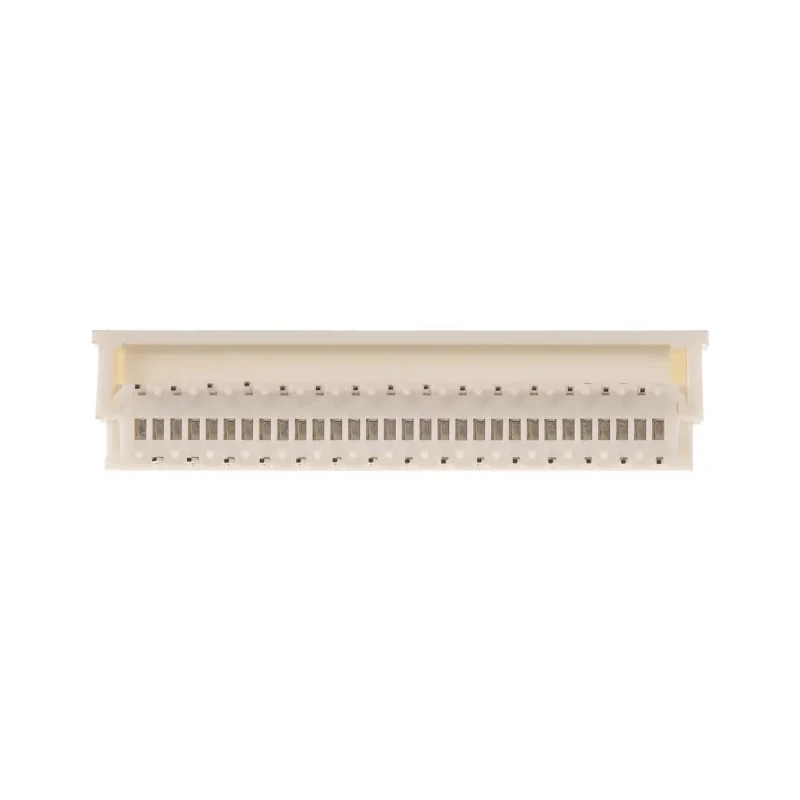

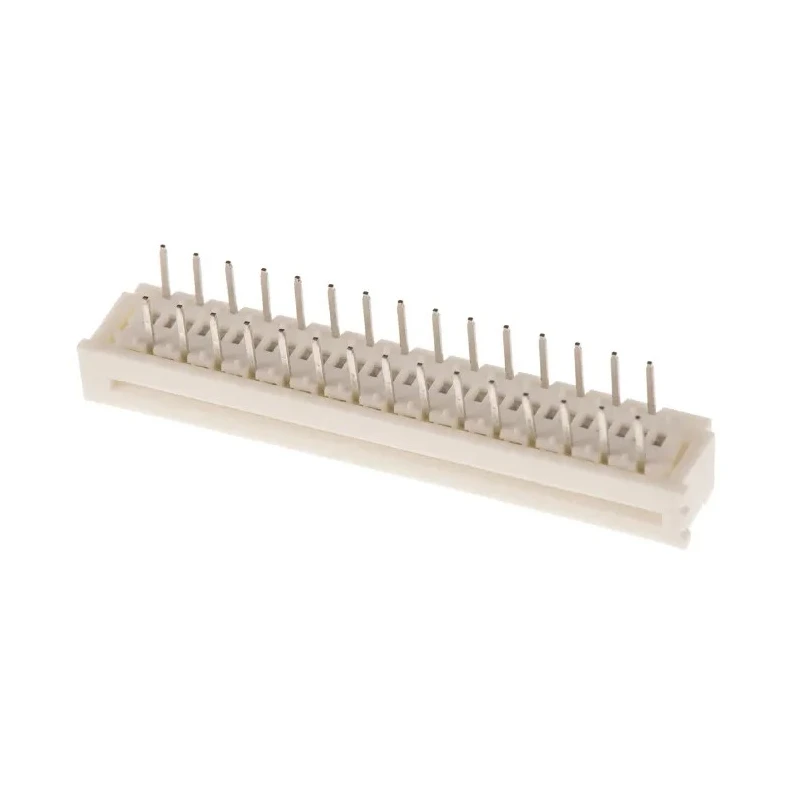

Molex 30 Way Female Right Angle FPC Connector, 1.25 mm Pitch, ZIF, Through Hole, 200V, 1A, Solder, 39-53-2304

The Molex 39-53-2304 is a high-performance female FPC (Flat Flexible Cable) connector designed for precision electronic and automotive applications requiring compactness, reliability, and repeated cycling. This connector features an industry-standard 1.25 mm pitch and is equipped with 30 contacts laid out in a single-row, right angle configuration. The through hole mounting and solder termination provide a robust solution for securing the connector to the PCB while maintaining optimal electrical continuity.

The connector utilizes a zero insertion force (ZIF) system, employing a slide-type actuator that ensures effortless, minimal-wear insertion or removal of FPC cables. This ZIF mechanism is particularly beneficial for applications where regular mating and demating cycles are expected, helping to preserve connection integrity and extend product life.

The contacts are made from phosphor bronze, plated with tin bismuth over nickel, providing excellent conductivity and resistance to corrosion. The housing is constructed from polybutylene terephthalate, known for its mechanical strength and dimensional stability. Designed for a maximum current of 1A and a voltage rating of 200V, this connector supports a broad range of digital and analog signals in demanding environments.

Its right angle orientation and space-saving form factor make it ideal for tight packaging scenarios common in automotive control modules, consumer electronics, and industrial automation. The integrated locking mechanism ensures that the flexible printed cable remains securely attached, even in environments subject to vibration or shock. Operating temperature is specified from -20°C to 80°C, ensuring robust performance in both low and elevated temperature conditions.

Applications for the Molex 39-53-2304 connector extend across automotive electronics, industrial equipment, consumer devices, and telecommunications equipment. Its reliable ZIF mechanism and high contact density make it an excellent choice for engineers and manufacturers needing repeated, reliable FPC terminations to printed circuit boards.
