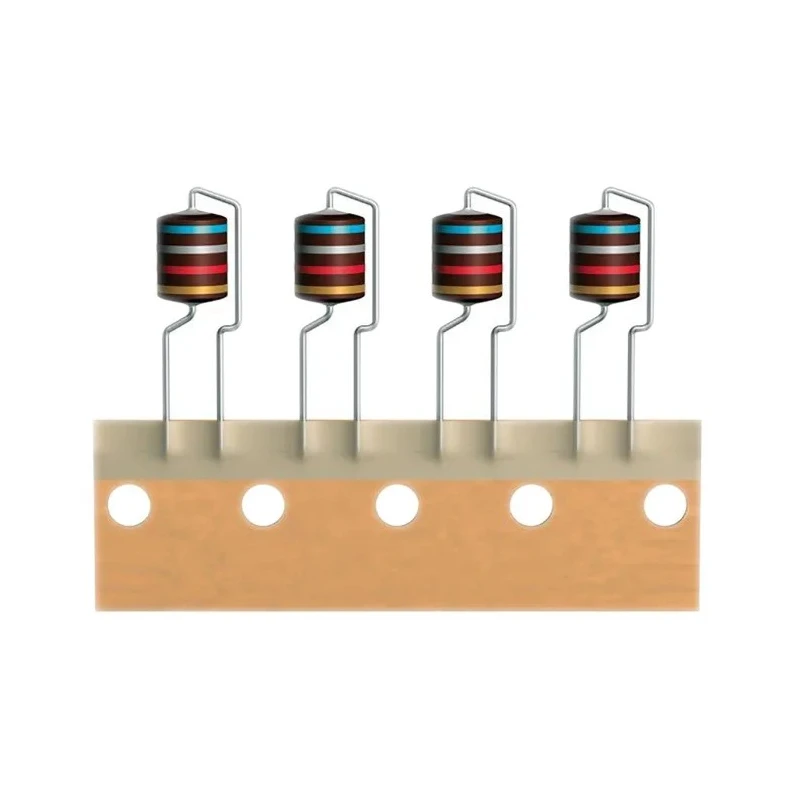

TDK 2.2 mH Ferrite Leaded Inductor Radial Lead Type Tape & Reel Packaging 180 mA Max DC Current B82144B1225J000

Free Delivery in India | Lowest Global Shipping Charges

TDK 2.2 mH Ferrite Leaded Inductor Radial Lead Type Tape & Reel Packaging 180 mA Max DC Current B82144B1225J000



Category Leaded Inductors Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	6.5mm
Brand	TDK
Height	9.2mm
Length	30.5mm
Model	B82144B1225J000
Depth	14.5mm
Packaging	Tape & Reel
Mount Type	Radial
Series	LBC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Test Frequency	0.25MHz
Core Material	Ferrite
Inductance	2.2mH
Standards/Approvals	RoHS, IEC
Maximum DC Current	180mA
Maximum DC Resistance	9.5Ω
Inductance Tolerance	±5 %
Termination Style	Radial Lead
Maximum Self Resonant Frequency	1.5MHz
Minimum Quality Factor	60
Lead Pitch	5mm
Lead Diameter	0.8mm
TDK 2.2 mH Ferrite Leaded Inductor, Max SRF	1.5 MHz, Q:60, 180 mA Idc, 9.5 Ω Rdc, LBC

Key Features

The inductor has a ferrite core material ensuring effective inductance.
It features a maximum self-resonant frequency of 1.5 MHz with a quality factor of 60.
Designed for maximum operating temperatures up to 125°C and a minimum operating temperature of -55°C.
The component has a maximum DC resistance of 9.5 Ω and a lead diameter of 0.8 mm.
Lead pitch of 5 mm and dimensions of length 30.5 mm, diameter 6.5 mm, height 9.2 mm, depth 14.5 mm.
Inductance tolerance is ±5%, ensuring precision in performance.
Meets RoHS and IEC standards and belongs to the LBC series known for automotive electronics and telecommunications applications.

Product Description

TDK B82144B1225J000 2.2 mH Ferrite Leaded Inductor is a high-quality radial lead component designed for use in telecommunications, automotive electronics, energy-saving lamps, and entertainment electronics.

This inductor uses a ferrite drum core with enamelled copper wire winding, providing a maximum DC current rating of 180 mA and a maximum DC resistance of 9.5 Ω, making it suitable for RF blocking, filtering, decoupling, and interference suppression in sensitive circuits.

The device has a maximum self-resonant frequency of 1.5 MHz and a quality factor of 60, supporting effective signal integrity over its operating frequency range. It operates reliably across a wide temperature range from -55°C to 125°C.

The inductance value of 2.2 mH with a tolerance of ±5% ensures accurate inductance control. Physical dimensions include a length of 30.5 mm, diameter of 6.5 mm, height of 9.2 mm, depth of 14.5 mm, with a lead pitch of 5 mm and lead diameter of 0.8 mm.

Packaged on tape & reel, this component is optimized for automated insertion and wave soldering processes. It is electroplated with nickel and pure tin on the leads for optimal connectivity and corrosion resistance.

Compliant with RoHS and IEC standards, the LBC series inductors by TDK are widely used in electronics manufacturing for high-reliability applications requiring RF choke functionality and interference mitigation.

Set includes one packaged ferrite leaded inductor per unit. This product is New and of Indian origin by default. The inductor uses a ferrite core material for magnetic performance. Maximum self-resonant frequency is 1.5 MHz for signal filtering.

Quality factor of 60 ensures low loss operation. Maximum DC current rating of 180 mA for sustained current handling. Lead diameter is 0.8 mm providing mechanical and electrical reliability. Packaging is tape & reel suitable for automated assembly.

Meets RoHS and IEC environmental and safety standards. Explore more Leaded Inductors and related electronic components at EnvMart for industrial, telecommunications, automotive, and consumer electronics applications.
