TDK 1.5 mH Ferrite Power Line Choke 20 A Idc 4.2 mΩ Rdc 350V ac Max SRF 10 kHz B82747E6203A040

Free Delivery in India | Lowest Global Shipping Charges

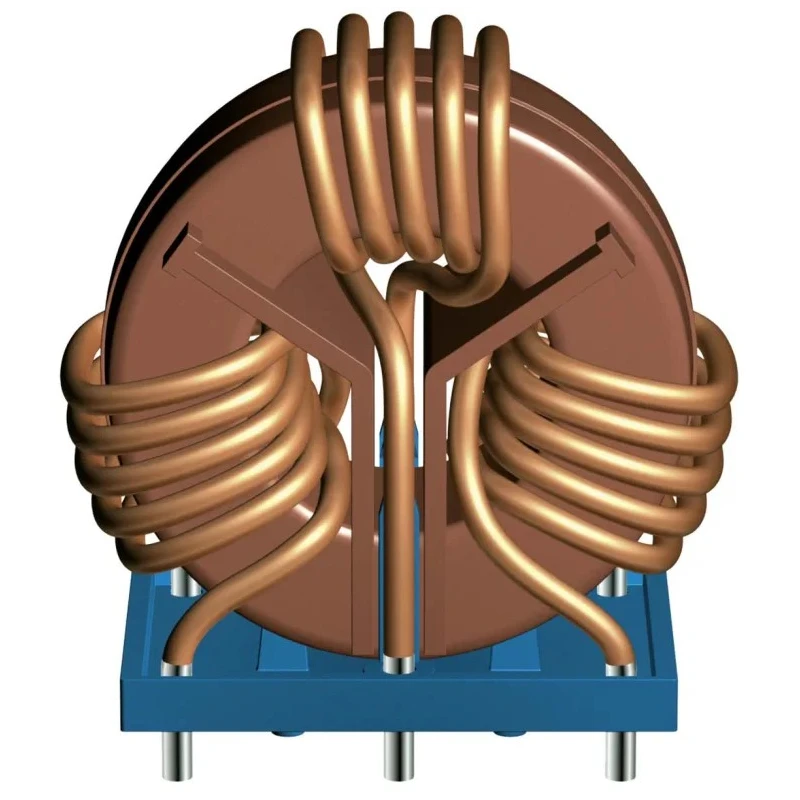

TDK 1.5 mH Ferrite Power Line Choke 20 A Idc 4.2 mΩ Rdc 350V ac Max SRF 10 kHz B82747E6203A040



Category Leaded Inductors Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	65mm
Brand	TDK
Height	66mm
Length	65mm
Model	B82747E6203A040
Depth	37mm
Packaging	Box
Mount Type	Radial
Series	B82747E6
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Test Frequency	100kHz
Core Material	Ferrite
Maximum Voltage	350V ac
Inductance	1.5mH
Standards/Approvals	UL, IEC, VDE, EN, RoHS
Maximum DC Current	20A
Maximum DC Resistance	4.2mΩ
Inductance Tolerance	-30 to 50 %
Termination Style	PC Pin
Maximum Self Resonant Frequency	10kHz
Lead Pitch	20mm
Lead Diameter	2mm

Key Features

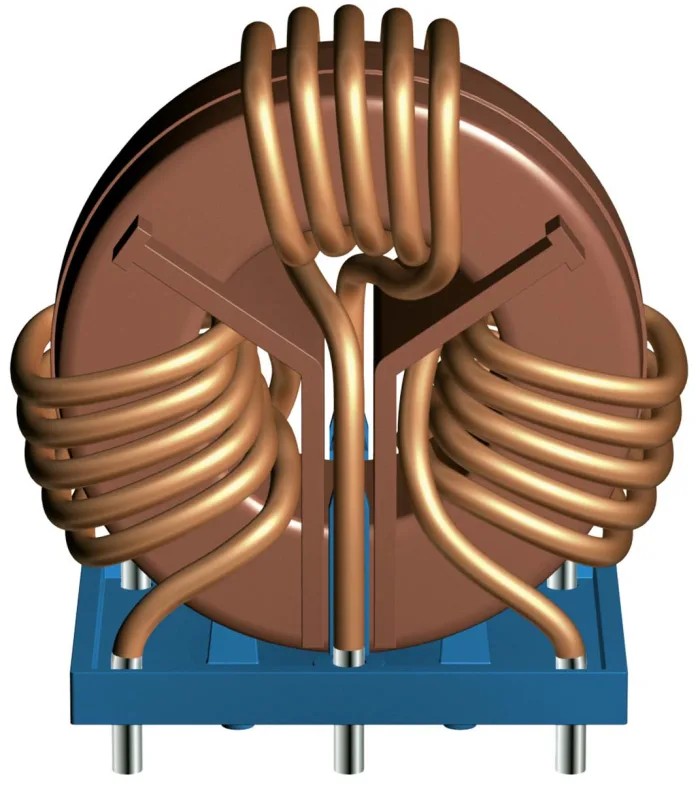

Features a ferrite core with sector winding and a plastic core case for durable construction.
Maximum self-resonant frequency of 10 kHz suitable for interference suppression in power lines.
Radial mount type with PC pin termination style and lead diameter of 2 mm.
Designed for operation at up to 125°C with a voltage rating of 350V AC.
Complies with UL, IEC, VDE, EN, and RoHS standards ensuring quality and environmental compliance.
Inductance tolerance ranges from -30% to +50% to accommodate performance variations.

Product Description

TDK B82747E6203A040 Power Line Choke is a high-quality leaded inductor designed specifically for efficient suppression of common-mode interferences in electrical circuits. With a ferrite core and sector winding enclosed in a plastic core case, this choke offers robust electrical performance and durability under demanding conditions.

This radial mount component supports a maximum DC current of 20 A and operates reliably at voltages up to 350V AC. It features a maximum self-resonant frequency of 10 kHz, making it optimal for high-voltage switch-mode power supplies, solar power inverters, and frequency converters.

The choke is designed for elevated temperature operation up to 125°C, with a core material that ensures consistent inductance of 1.5 mH within the specified tolerance range of -30% to 50%. Its compact size with a 65 mm diameter and 66 mm height fits various industrial and commercial electronic applications.

Termination is accomplished via PC pins with a lead pitch of 20 mm and a lead diameter of 2 mm, allowing for easy wave soldering during PCB assembly. The unit is packaged in a protective box to maintain integrity during transport and storage.

Compatible with standards UL, IEC, VDE, EN, and RoHS, this power line choke suits applications in interference suppression, industrial manufacturing, HVAC equipment, and automotive electronics where reliability and compliance are critical.

Features a ferrite core with sector winding and a plastic core case for durable construction. Maximum self-resonant frequency of 10 kHz suitable for interference suppression in power lines. Radial mount type with PC pin termination style and lead diameter of 2 mm.

Designed for operation at up to 125°C with a voltage rating of 350V AC. Complies with UL, IEC, VDE, EN, and RoHS standards ensuring quality and environmental compliance. Dimensions include 65 mm diameter, 66 mm height, 37 mm depth, and lead pitch of 20 mm.

Inductance tolerance ranges from -30% to +50% to accommodate performance variations. Explore more Leaded Inductors and electronic components on EnvMart for your industrial, laboratory, and commercial applications.
