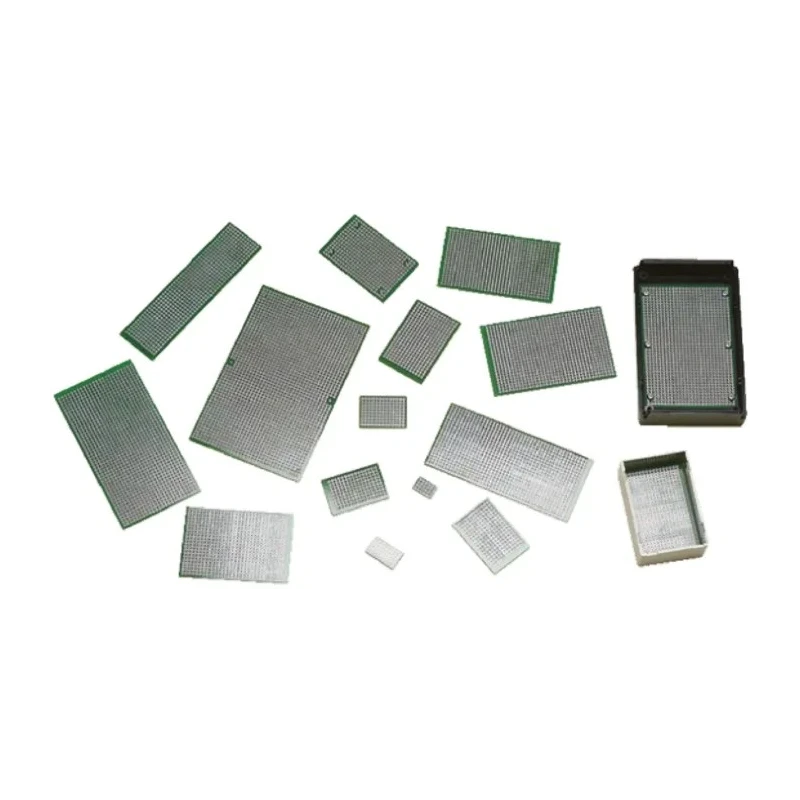

Takachi Electric Industrial 2 Surface Mount (SMT) Board FR4 Epoxy Glass Fabric Laminate 49mm x 34mm TNF34-49
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Takachi Electric Industrial |
| Length | 49mm |
| Model | TNF34-49 |
| Width | 34mm |
| Hole Diameter | 1mm |
| Board Material | Epoxy Glass Fabric Laminate |
| Standards/Approvals | RoHS |
| Number of Sides | 2 |
| Board Thickness | 1.6mm |
| FR Material Grade | FR4 |

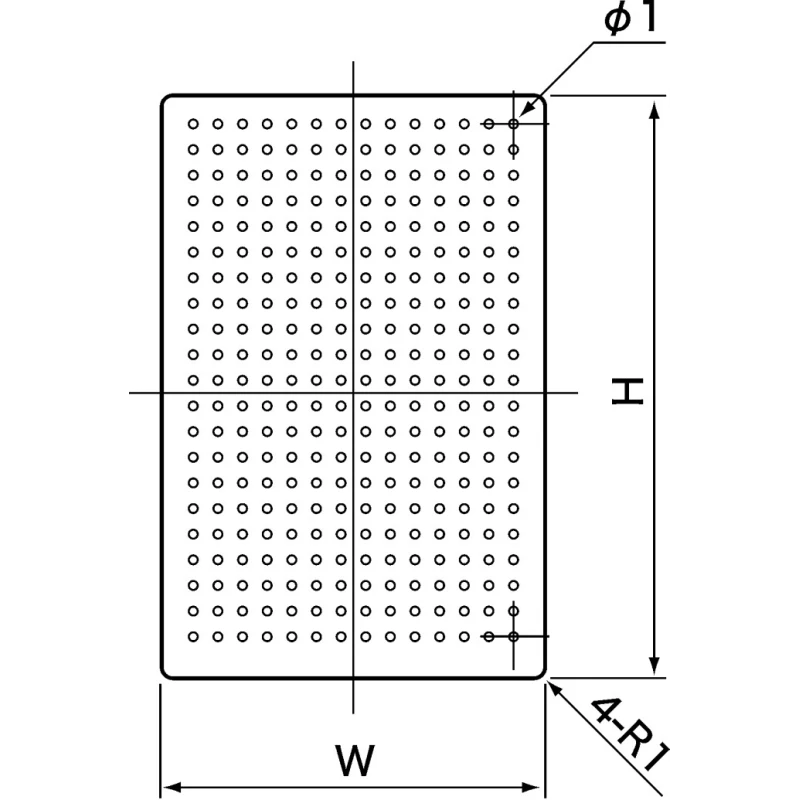

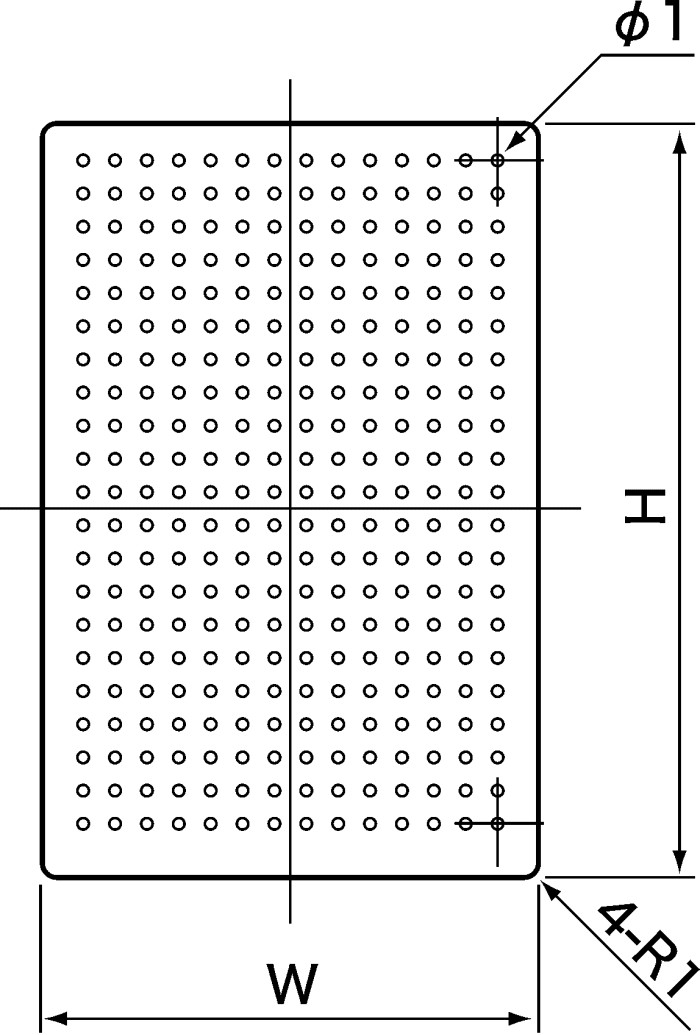

| Hole Layout | 12 x 17 |
| Hole Pitch | 2.54mm |
Key Features
- Board thickness of 1.6 mm ensures durability for prototyping needs.
- Utilizes FR4 material grade compliant with RoHS standards for environmental safety.
- Features through holes on both sides, suitable for SW and SS series cases.
- Perfectly sized universal board for precise surface mounting and prototyping applications.
- Manufactured in Japan, ensuring premium quality and material standards.
Product Description
Takachi Electric Industrial TNF34-49 is a high-quality 2-sided Surface Mount (SMT) prototype board constructed with FR4 epoxy glass fabric laminate, featuring a precise length of 49 mm and width of 34 mm. This board is designed with 12 by 17 holes of 1 mm diameter and 2.54 mm pitch, which facilitates easy mounting and wiring in electronic prototyping and matrix board arrangements.
The 1.6 mm thick board material provides mechanical strength and insulation suitable for various electronics and electrical applications including industrial automation, signal processing, and laboratory testing setups.
Manufactured to meet RoHS compliance, this board adheres to environmental standards and is a reliable component for designing and assembling circuits in research, development, and industrial settings.
The universal board is perfect for use with SW and SS series cases, offering a versatile platform for surface mounting components and building prototype layouts with precision and ease. The dual-sided design with through holes enhances connectivity options and assembly flexibility.
Board thickness of 1.6 mm ensures durability for prototyping needs. Utilizes FR4 material grade compliant with RoHS standards for environmental safety. Features through holes on both sides, suitable for SW and SS series cases.
Perfectly sized universal board for precise surface mounting and prototyping applications. Manufactured in Japan, ensuring premium quality and material standards.
This Takachi Electric Industrial board is ideal for professionals and engineers involved in electronics design, prototyping, and experimental circuitry. It supports industrial, laboratory, and educational use cases, delivering consistent performance and high material quality.
Explore more prototyping board options at EnvMart to equip your electronic development projects with trusted components.
Explore more products in our Prototyping Boards category.
