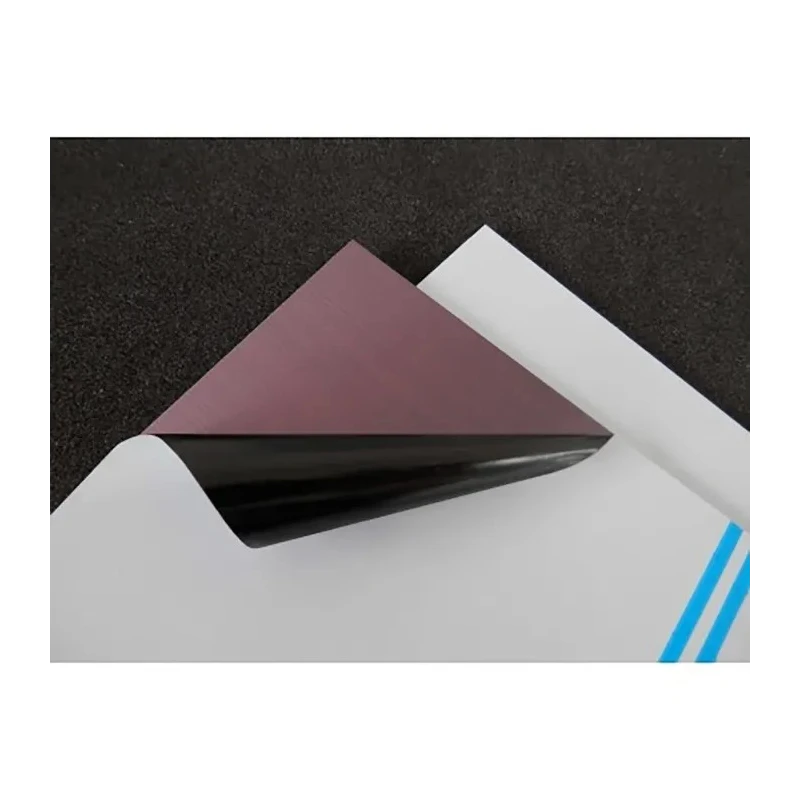

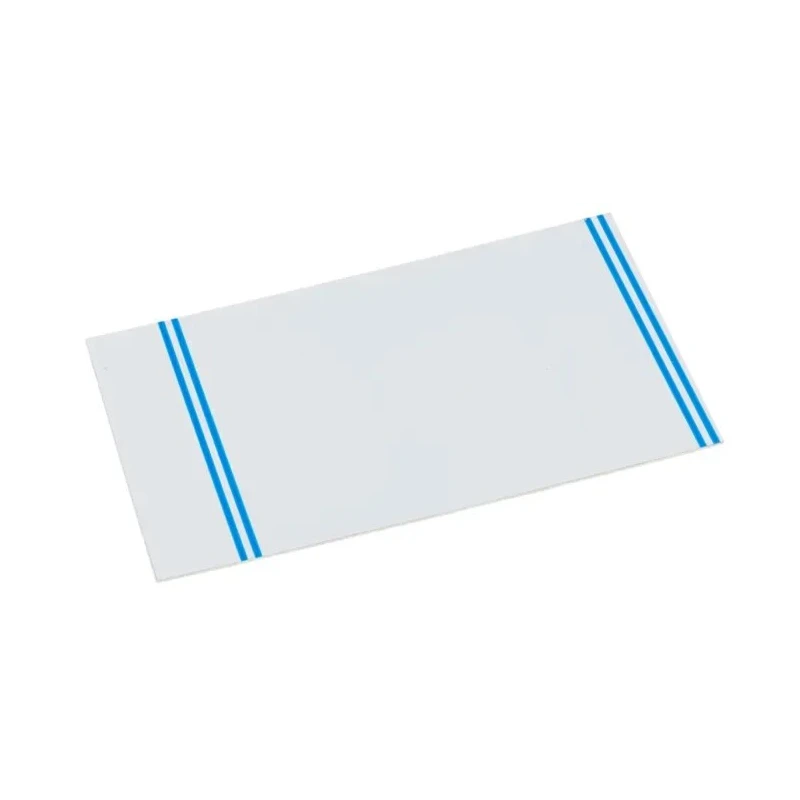

CIF Photoresist Board Epoxy Glass Fabric Laminate 1 Side 35μm Copper Thickness 160mm x 1.6mm x 100mm AA16

Free Delivery in India | Lowest Global Shipping Charges

CIF Photoresist Board Epoxy Glass Fabric Laminate 1 Side 35μm Copper Thickness 160mm x 1.6mm x 100mm AA16



Category Prototyping Boards Brand CIF Condition New

Specifications

Country of Origin	France
Brand	CIF
Length	160mm
Model	AA16
Width	1.6mm
Fire Resistance	UL 94-V0
Board Material	Epoxy Glass Fabric Laminate
Number of Sides	1
Board Thickness	100mm
FR Material Grade	FR4
Copper Thickness	35μm
Developer concentration	use sachet 160-9490 or 6-10g/l of Sodium or Potassium Hydroxide. Conduct trials if in doubt

Key Features

Constructed with FR4 material grade ensuring durability and reliability.
Single-sided board with 35μm thick copper for effective conductivity.
Complies with military standard P 13949F M12 13949F for professional quality.
Fire resistance rated UL 94-V0 providing enhanced safety.
Developed with blue coloured positive resin for superior photoresist performance.
Suitable for prototyping boards and cleanroom environments.
Originates from France, ensuring high manufacturing standards.
Developer concentration requires use of specific chemicals as per instructions.

Product Description

The CIF AA16 Photoresist Board Epoxy Glass Fabric Laminate is a precision-engineered single-sided PCB board designed for professional prototyping in electronics and electrical industries. Manufactured from durable FR4 epoxy glass fabric laminate, this board features a 35μm thick copper layer which ensures excellent conductivity for high-quality circuit designs.

Measuring 160mm in length, 1.6mm in width, and 100mm in thickness, this board meets the stringent military standard P 13949F M12 13949F and offers outstanding fire resistance with UL 94-V0 certification. The blue coloured positive resin on the surface allows for clear and accurate photoresist processing, ideal for laboratory, industrial, and manufacturing environments.

This product is suitable for cleanroom applications and ESD control areas where precision and reliability are paramount. Developer concentration requires the use of sachet 160-9490 or a solution of 6-10g/l Sodium or Potassium Hydroxide, with trials recommended for optimal performance.

Constructed with FR4 epoxy glass fabric laminate material. Single-sided copper clad with 35μm thickness providing efficient conductivity. Board dimensions: 160mm length, 1.6mm width, 100mm thickness. Complies with military standard P 13949F M12 13949F ensuring professional quality.

Fire resistant to UL 94-V0 standard enhancing operational safety. Blue coloured positive resin for superior photoresist application. Applicable in laboratory, construction, manufacturing, and HVAC electronics prototyping.

Made in France with high manufacturing quality and consistency. Proper developer concentration recommended for best results in PCB prototyping. Explore the extensive range of Prototyping Boards and copper clad laminates available on EnvMart for your electronics prototyping and manufacturing needs.
