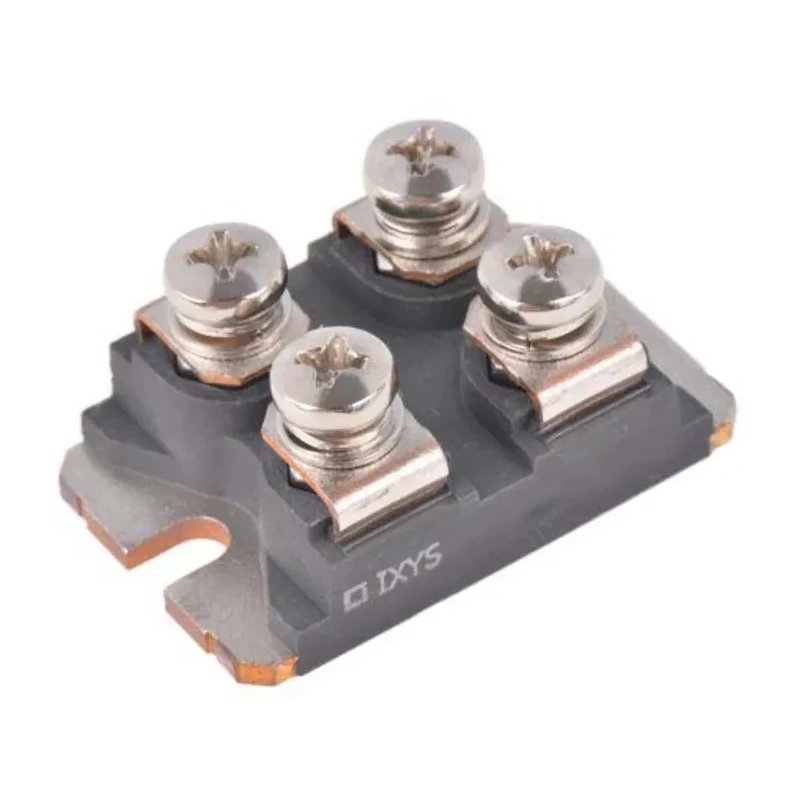

IXYS Dual Thyristor Module 1200 V 430 A Surface Mount SOT-227B 4-Pin MMO62-12io6

The IXYS MMO62-12io6 Dual Thyristor Module is a robust AC power control device designed specifically for demanding industrial and electronic applications. This module integrates two high-quality thyristors connected back-to-back in an isolated base SOT-227B package allowing for full-wave AC control with high efficiency and durability.

Characterized by a rated average on-state current of 30 amperes and a surge current capability of 430 amperes, the module excels in handling substantial load variations and transient currents. Its repetitive peak reverse voltage rating of 1200 volts ensures reliable operation under high voltage stresses commonly encountered in power control circuits.

Precision control is delivered through a maximum gate trigger current of 150 milliamps and a maximum gate trigger voltage of 1.6 volts. The device also features a maximum holding current of 100 milliamps, ensuring stable latching behavior during switching.

The module is packaged in a compact 38.23 mm by 25.25 mm by 12.22 mm form factor and includes an isolated copper baseplate that significantly improves heat transfer. It is designed for surface mounting with a two-hole screw fixing and M4 screw terminals for secure electrical connections.

This dual thyristor is suitable for a range of industrial use cases including battery charging, welding, plating, regulated power supplies, as well as temperature and speed control in HVAC and manufacturing processes. Its temperature rating up to 125°C attests to its reliability in harsh operating environments.

Engineered for excellent electrical isolation, the module provides a 3000 VAC isolation rating, further enhancing system safety and performance in industrial installations.

Overall, IXYS MMO62-12io6 represents a high-performance solution for precise AC power control. Explore the full range of Thyristor Modules on EnvMart to find components that fit your demanding applications.
