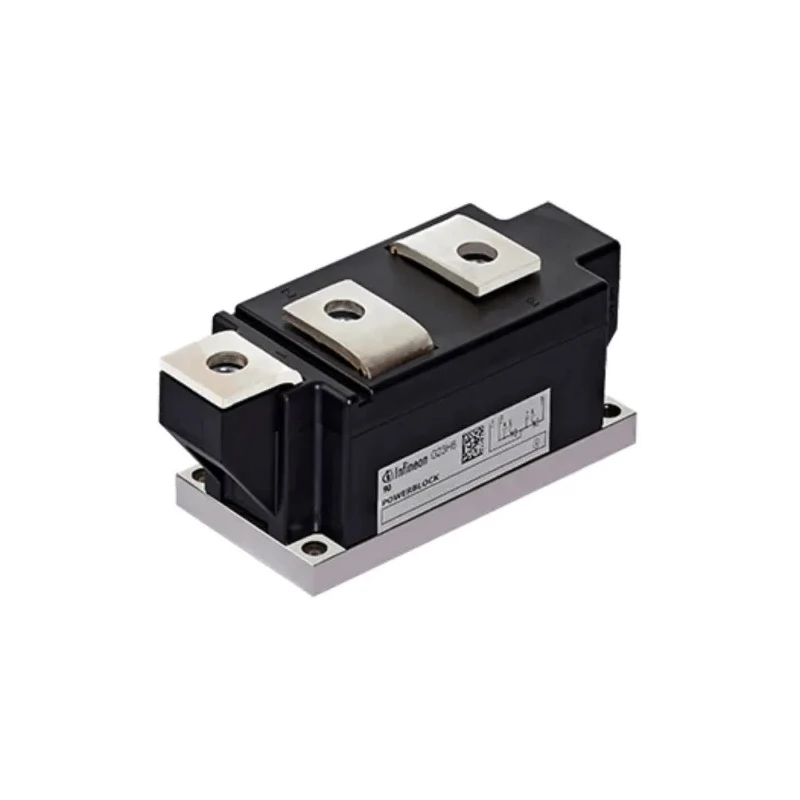

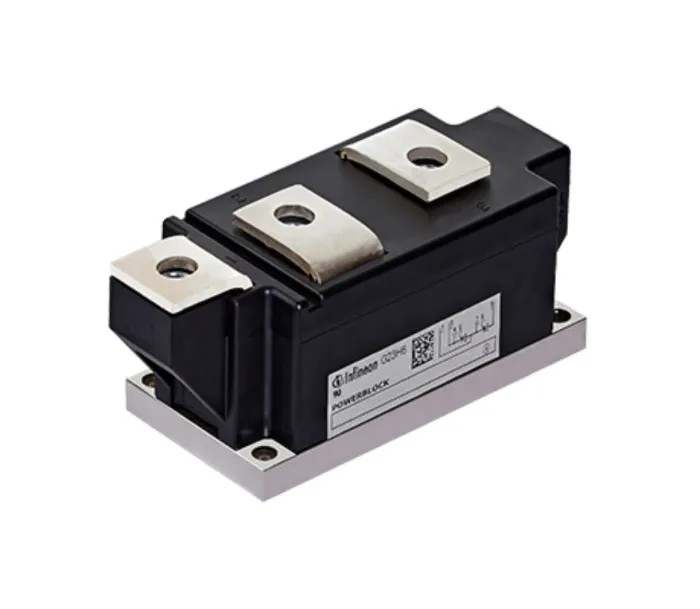

Infineon Thyristor Module 1800 V 20 kA 566 A 250 mA Gate Trigger TD570N18KOFHPSA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon Thyristor Module 1800 V 20 kA 566 A 250 mA Gate Trigger TD570N18KOFHPSA1

Name: Infineon Thyristor Module 1800 V 20 kA 566 A 250 mA Gate Trigger TD570N18KOFHPSA1
Brand: Infineon
SKU: 203605
Price: 441.48 USD
Availability: InStock



Category Thyristor Module Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Model	TD570N18KOFHPSA1
Maximum Operating Temperature	125°C
Rated Average On-State Current Irms	566A
Repetitive Peak Reverse Voltage VDRM	1800V
Surge Current Rating	20kA
Maximum Gate Trigger Current Igt	250mA
Maximum Holding Current Ih	300mA
Maximum Gate Trigger Voltage Vgt	2V
Peak On-State Voltage	1.38V
Repetitive Peak Off-State Current	120mA

Key Features

Rated average on-state current of 566 A ensures robust conduction.
Maximum gate trigger current of 250 mA delivers precise triggering.
Peak on-state voltage measured at 1.38 V for efficient operation.
Maximum operating temperature is 125°C, suitable for demanding environments.
Chassis mount design with a 60 mm base plate for stable installation.
Repetitive peak reverse voltage rating of 1800 V enhances durability.
Maximum holding current of 300 mA provides reliable switching performance.
Repetitive peak off-state current of 120 mA limits leakage to minimal levels.

Product Description

Infineon TD570N18KOFHPSA1 Thyristor Module is a high-performance power semiconductor device designed for controlling high voltages and currents in industrial and electronic applications. Rated for 1800 V repetitive peak reverse voltage and 20 kA surge current, this module delivers reliable and efficient power control under demanding conditions.

This thyristor module supports an average on-state current of 566 A, making it suitable for heavy-duty phase control and power switching tasks in manufacturing, HVAC, and electrical distribution systems. The device features a maximum gate trigger current of 250 mA and a gate trigger voltage of 2 V, ensuring precise and consistent activation. Its peak on-state voltage of 1.38 V and maximum holding current of 300 mA allow efficient conduction and stable operation.

Designed with a chassis mount and a 60 mm base plate, this Thyristor Module facilitates straightforward installation and heat dissipation. It operates safely up to 125°C, making it reliable in high-temperature industrial environments. The device does not comply with automotive standards, highlighting its specialization in industrial electronics and power control sectors.

Typical applications include phase control in power supplies, AC/DC motor drives, welding equipment, and power conditioning units. This module helps improve production efficiency due to its tray packaging designed for direct machinery insertion, streamlining assembly processes.

Rated average on-state current of 566 A. Surge current capability of 20 kA. Maximum gate trigger current of 250 mA. Peak on-state voltage of 1.38 V. Maximum operating temperature of 125°C. Chassis mount with 60 mm base plate design.

Repetitive peak reverse voltage of 1800 V. Maximum holding current of 300 mA. Repetitive peak off-state current at 120 mA.
