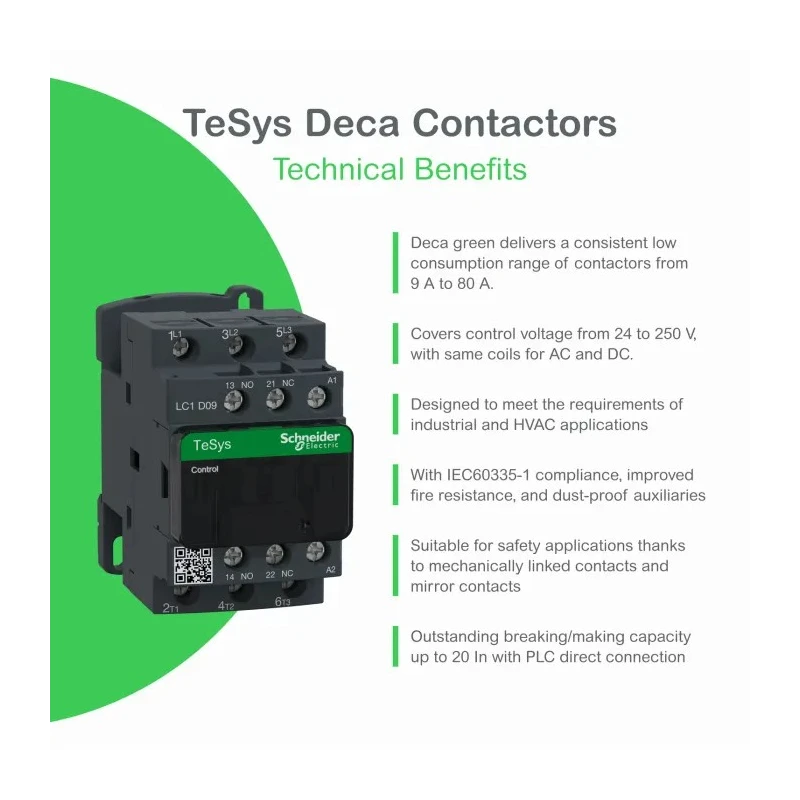

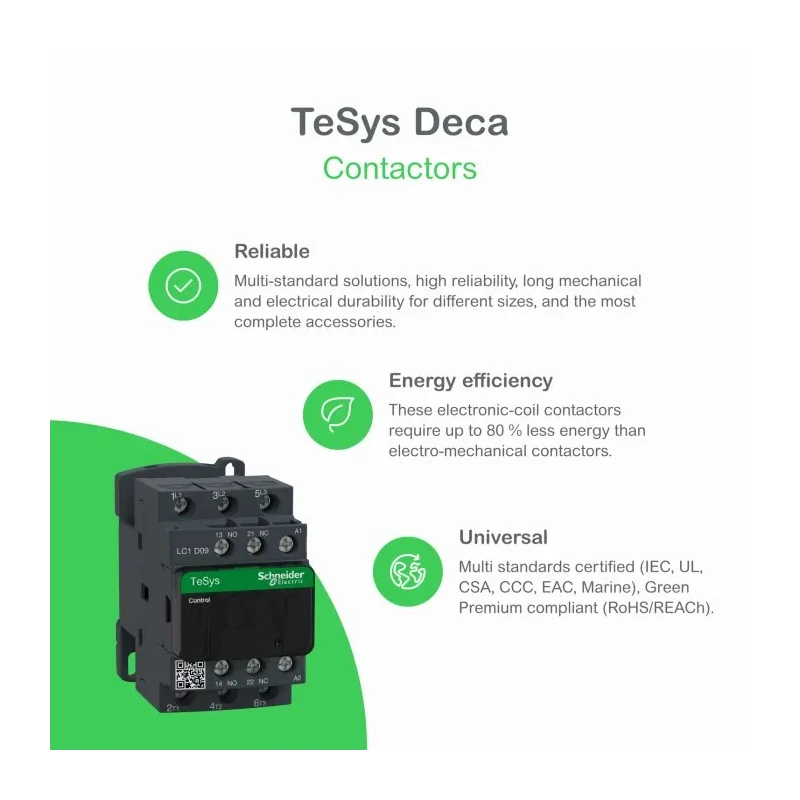

Schneider Electric Contactor 3-Pole 50 A 22 kW, 110V AC Coil, DIN Rail Mount LC1D
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 122mm |
| Model | LC1D |
| Depth | 120mm |
| Width | 55mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 22kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 50A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 50A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 110V AC coil for reliable operation.
- Three poles and two auxiliary contacts provide versatile connectivity.
- Rated for a contact voltage of 690V AC and current of 50A.
- Power rating of 22 kW, suitable for high-power applications.
- DIN rail mount for easy installation in control panels.
- Compact dimensions of 122 mm length, 120 mm depth, and 55 mm width optimize space usage.
- Operates reliably in temperatures from -5°C to 60°C.
- Screw clamp terminals with IP20 finger-safe protection ensure safety and ease of wiring.
Product Description
Schneider Electric LC1D50AF7 Contactor is a high-performance 3-pole electrical component designed for motor control and resistive load applications. Featuring a 110V AC coil and rated for 50 A contact current with a maximum contact voltage of 690V AC, it is well suited for demanding industrial and automation environments.
This contactor offers flexible installation options including DIN rail mounting, enhancing integration into existing electrical panels. Its compact footprint of 122 mm length, 120 mm depth, and 55 mm width allows for efficient space utilization within control enclosures.
With an operational temperature range from -5°C to 60°C, this unit is designed for reliability even in harsh environments. The screw clamp terminals are IP20 finger-safe, supporting secure and safe connections while facilitating quick installation.
The LC1D50AF7 includes two auxiliary contacts (1 NO and 1 NC) for additional control functionality and is mechanically rated for six million cycles, promoting longevity and reduced maintenance frequency.
Certified under multiple international standards including CCC, CSA, EAC, IEC, RoHS, and UL, it meets the rigorous requirements for use in electrical workshops, agricultural equipment, automation systems, and other industrial installations requiring robust and reliable Contactors.
Equipped with a 110V AC coil for reliable operation. Three poles and two auxiliary contacts provide versatile connectivity. Rated for a contact voltage of 690V AC and current of 50A. Power rating of 22 kW, suitable for high-power applications.
DIN rail mount for easy installation in control panels. Compact dimensions of 122 mm length, 120 mm depth, and 55 mm width optimize space usage. Operates reliably in temperatures from -5°C to 60°C. Screw clamp terminals with IP20 finger-safe protection ensure safety and ease of wiring.
Mechanical durability rated for 6 million cycles ensures long service life. Certified to international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
Choose this Schneider Electric LC1D50AF7 contactor to ensure efficient motor control and reliable operation in your electrical systems. Explore the Automation & Control Gear category on EnvMart for more Schneider Electric products and related industrial automation components.
