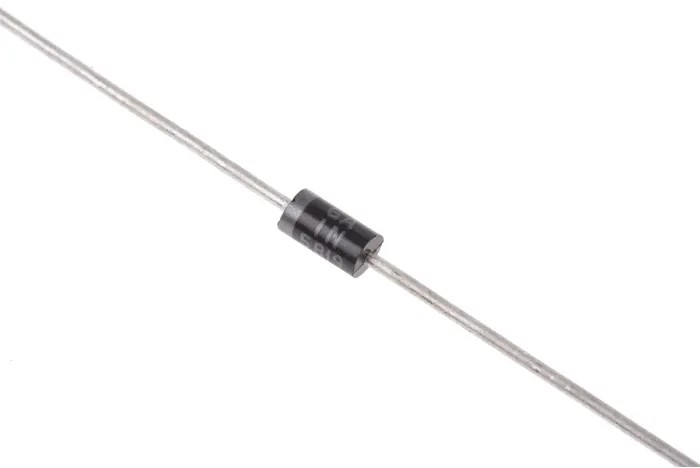

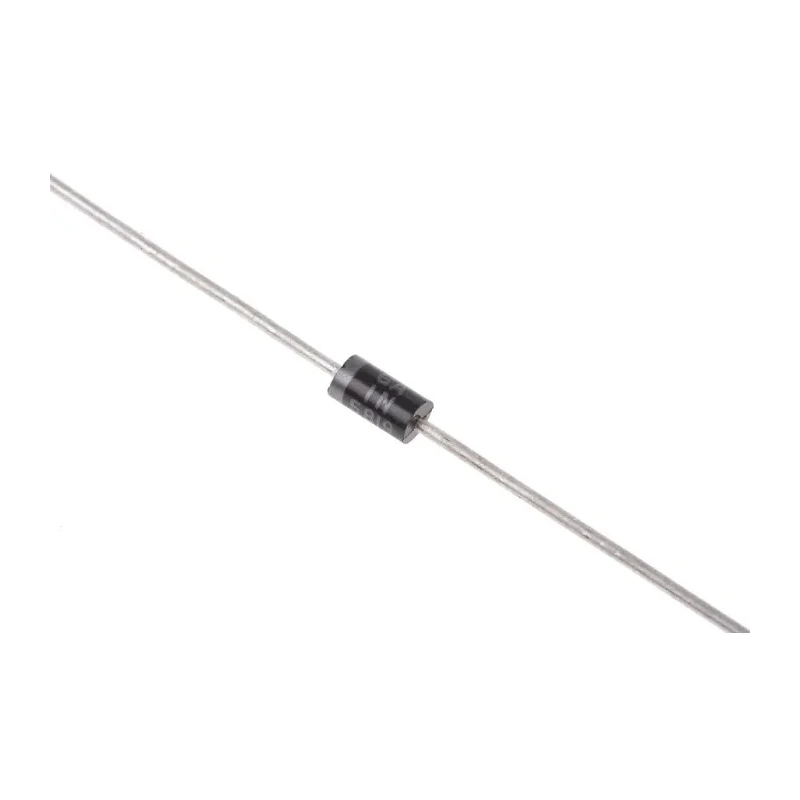

onsemi 40 V 1 A Schottky Diode, Through Hole Mount, DO-41 Package 1N5819RLG
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | onsemi |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | 1N5819RLG |
| Finish | All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable |
| Gross Weight | 0.4 Gram |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | 1N5819 |
| Maximum Operating Temperature | 125°C |
| Case | Epoxy, Molded |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode Indicated by Polarity Band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 0.9V |
| Lead Temperature for Soldering Purposes | 260°C Max for 10 Seconds |
| Diode,Barrier,Schottky,1N5819Brand | ON Semiconductor |
| onsemi 40V 1A, Schottky Diode, 2-Pin DO-41 1N5819Brand | ON Semiconductor |
Key Features
- Provides a maximum continuous forward current of 1 ampere.
- Features a peak reverse repetitive voltage rating of 40 volts.
- Operates reliably from -65°C to 125°C with a peak surge current of 25 amperes.
- Constructed with epoxy molded case offering corrosion resistance and ease of soldering.
- Cathode is identified by a polarity band for correct installation.
- Compact dimensions with 5.2 mm length and 2.7 mm diameter ensure suitability for tight circuit layouts.
- Typical forward voltage drop is 0.9 volts, ensuring low power loss.
- Designed for high frequency inverter, free wheeling diode, and polarity protection applications.
Product Description
onsemi 1N5819RLG Schottky Diode is a high-efficiency power diode optimized for applications requiring fast switching and low forward voltage drop. It features a 40 V reverse voltage and 1 A forward current rating, housed in a durable epoxy-molded DO-41 package with through hole mount type.
This diode operates within a wide temperature range from -65°C to 125°C and can handle peak non-repetitive forward surge currents up to 25 A, making it suitable for demanding industrial and electronic environments.
The device is constructed with a chrome barrier metal, oxide passivation, and metal overlap contact technology that ensures low stored charge and high reliability. The external surfaces are corrosion resistant, and the terminal leads are solderable, facilitating assembly and longevity.
Typical applications include high frequency inverter circuits, free wheeling diode implementations, and polarity protection in power supplies. The polarity band marks the cathode end for proper orientation in circuits.
Maximum continuous forward current of 1 A ensures steady performance. Peak reverse repetitive voltage of 40 V offers robust blocking capability. Low forward voltage drop of 0.9 V contributes to energy efficiency. Epoxy molded case provides mechanical protection and corrosion resistance.
Lead temperature rating up to 260°C for reliable soldering processes. Compact size with 5.2 mm length by 2.7 mm diameter fits tight PCB layouts. Wide operating temperature range from -65°C to 125°C. Designed for a range of industrial and electronic applications including inverters and polarity protection.
The onsemi 1N5819RLG is an excellent choice for designers seeking reliable, low-loss Schottky diodes suitable for various industrial, laboratory, electronics manufacturing, and commercial purposes. Explore more semiconductor components and Schottky diode solutions at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 1 ampere.
The peak reverse repetitive voltage rating is 40 volts.
It operates reliably within a temperature range from -65°C to 125°C.
The typical forward voltage drop is 0.9 volts, contributing to low power loss.
This diode is housed in a DO-41 package and features a through hole mount style.
The maximum peak non-repetitive forward surge current is 25 amperes.
The cathode is indicated by a polarity band for correct installation in circuits.
The diode has a length of 5.2 mm and a diameter of 2.7 mm, making it compact for tight circuit layouts.
It is designed for applications such as high frequency inverters, free wheeling diodes, and polarity protection.
The diode features an epoxy molded case that offers corrosion resistance and ease of soldering.
The lead temperature rating for soldering is up to 260°C for a maximum duration of 10 seconds.
The gross weight of this model is 0.4 grams.
