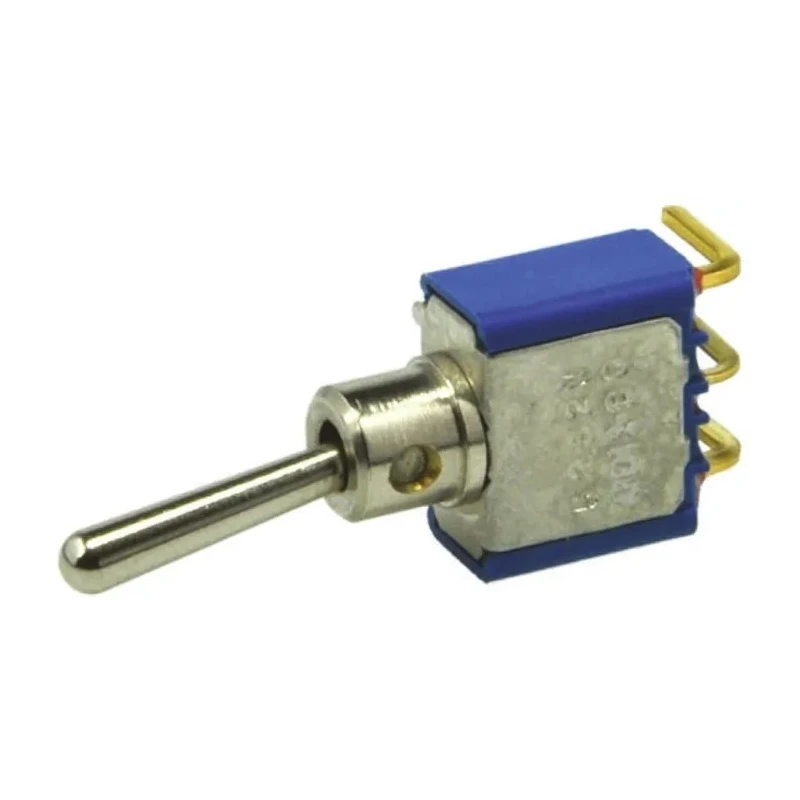

APEM Toggle Switch PCB Mount On-On SPST 24 V DC 250 V AC 5000 Series 5232WCDB
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 36mm |
| Length | 14mm |
| Model | 5232WCDB |
| Width | 12mm |
| Mount Type | PCB |
| Series | 5000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | On-(On) |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | PC Terminal |
| Standards/Approvals | CECC, CSA, NFVDE, RoHS, UL |
| Switch Operation | On-On |
| Actuator Length | 13.5mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Nickel Plated Brass |
| RS PRO Toggle Switch, PCB Mount, On-(On), SPDT, Through Hole TerminalBrand | RS PRO |
Key Features
- This toggle switch features a single-pole single-throw (SPST) contact configuration.
- It supports a switch contact current of 400mA suitable for low current applications.
- The switch operates in an On-On configuration for dual-position control.
- Mount type is PCB with nickel plated brass actuator material ensuring durability.
- Panel cutout size required is 6.5 mm to fit the switch correctly.
- It has a mechanical life rated for 100000 operations, ensuring long-term reliability.
- Operating temperature range is from -40°C to 85°C, suitable for varied environments.
- This switch complies with CECC, CSA, NFVDE, RoHS, and UL standards promoting international safety and quality.
Product Description
APEM 5232WCDB Toggle Switch is a robust PCB mounted device designed for demanding industrial and electrical applications. Featuring an On-On single-pole single-throw (SPST) operation mode, this switch provides reliable dual-position control with a contact current of up to 400mA. It is engineered to handle DC voltages of 24V and AC voltages of up to 250V, making it suitable for control circuits and switched power applications.
Constructed with a nickel plated brass actuator, the switch offers durability and precision in actuation. The PCB mounting design ensures easy integration into circuit boards and compact electrical assemblies. The required panel cutout size is 6.5 mm, and the switch's physical dimensions are optimized for space-saving with a height of 36mm, width of 12mm, and length of 14mm, along with an actuator length of 13.5mm.
The 5232WCDB model complies with CECC, CSA, NFVDE, RoHS, and UL standards, ensuring conformity to international safety and environmental regulations. Operating temperature extremes range from -40°C up to 85°C, allowing use in harsh environmental conditions often encountered in industrial automation, electrical control panels, and HVAC systems.
With a mechanical life of 100000 operations, this switch guarantees reliable long-term switching performance. It is ideal for applications in industrial automation, laboratory equipment, electrical appliances, and control systems requiring dependable switching solutions.
Choose APEM 5232WCDB for a high-quality, durable, and standards-compliant Toggle Switch optimized for printed circuit board mounting and reliable On-On operation. Single-pole single-throw (SPST) On-On switch operation ensures precise control.
Supports 400mA contact current for low to medium power circuits. PCB mount type with PC terminal for stable electrical connection. Nickel plated brass actuator provides durability and smooth operation. Suitable for voltage ratings of 24 V DC and 250 V AC.
Mechanical endurance of 100000 operations guarantees long service life. Complies with CECC, CSA, NFVDE, RoHS, and UL standards. Compact size with 36mm height, 12mm width, and 14mm length. Operable in temperature range from -40°C to 85°C.
Explore the extensive range of electrical switches at EnvMart for reliable industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a single-pole single-throw (SPST) contact configuration.
It supports a contact DC voltage of 24V and an AC voltage of up to 250V.
The maximum contact current for this switch is 400mA, suitable for low current applications.
The required panel cutout size for this toggle switch is 6.5 mm.
It has a mechanical life rated for 100,000 operations, ensuring long-term reliability.
The operating temperature range is from -40°C to 85°C, suitable for varied environments.
The actuator is made of nickel plated brass, providing durability and smooth operation.
The dimensions are 36mm in height, 12mm in width, and 14mm in length, with an actuator length of 13.5mm.
It complies with CECC, CSA, NFVDE, RoHS, and UL standards, promoting international safety and quality.
This model is designed for PCB mounting, ensuring easy integration into circuit boards.
It is suitable for applications in industrial automation, laboratory equipment, electrical appliances, and control systems.
The switch features PC terminals for stable electrical connection.
