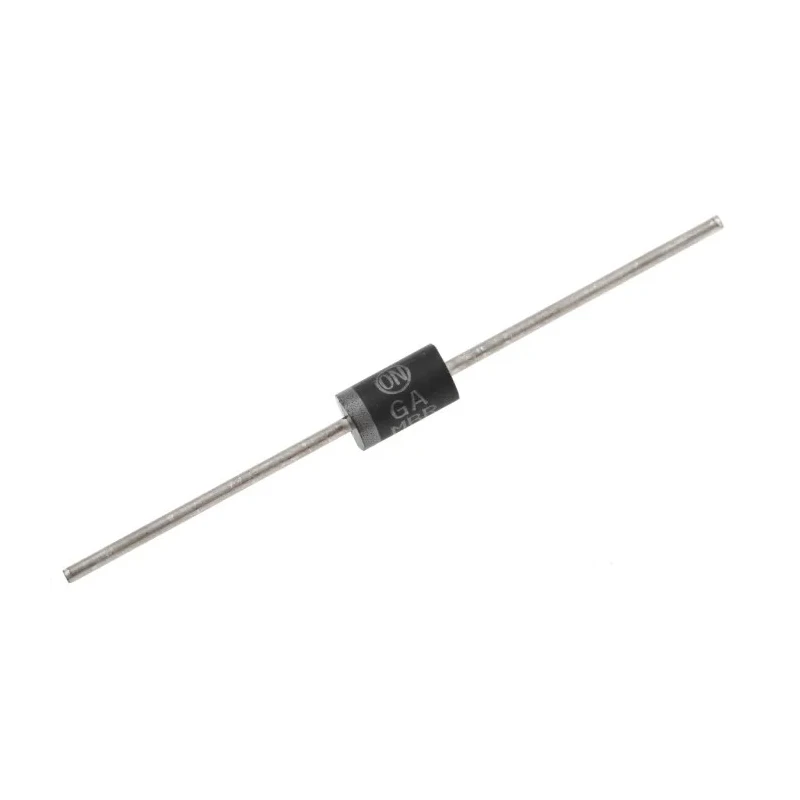

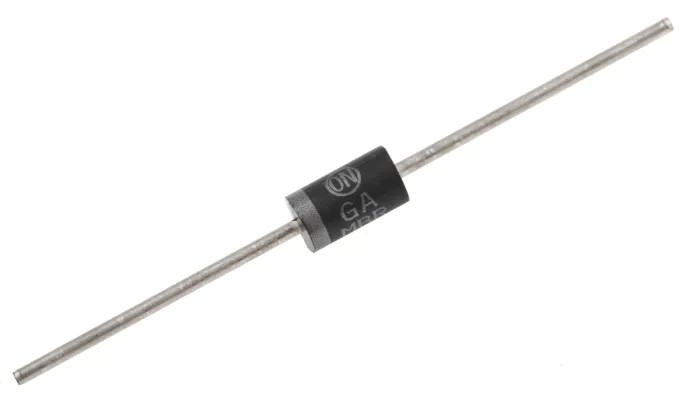

onsemi Schottky Diode 60 V 3 A Through Hole, DO-201AD Package MBR360RLG
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | onsemi |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | MBR360RLG |
| Finish | All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable |
| Gross Weight | 1.1 gram (approximately) |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | MBR360 |
| Maximum Operating Temperature | 150°C |
| Case | Epoxy, Molded |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode indicated by Polarity Band |
| Marking | B350, B360 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 600μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 1.08V |
| Lead Temperature for Soldering Purposes | 260°C Max. for 10 Seconds |
Key Features
- This diode features a low forward voltage drop of 1.08 V for high efficiency.
- It supports peak non-repetitive forward surge currents up to 80 A.
- The device has a wide operating temperature range from -65°C to 150°C.
- Its epoxy molded case provides corrosion resistance and ease of soldering.
- The diode is ideal for low voltage, high frequency inverters and free wheeling diode applications.
- Polarity is indicated by a cathode band marking.
- Compact dimensions include a length of 9.5 mm and diameter and width of 5.3 mm.
- Peak reverse current is low at 600 μA, ensuring minimal losses.
Product Description
onsemi MBR360RLG is a high-performance Schottky diode designed for efficient rectification with a maximum reverse voltage rating of 60 V and continuous forward current of 3 A. Constructed with advanced epitaxial geometry and oxide passivation, this diode minimizes forward voltage drop and power loss, making it highly efficient for power applications.
The device package type DO-201AD features epoxy molding which ensures mechanical robustness and corrosion resistance, with terminals optimized for solderability at a maximum lead temperature of 260°C for 10 seconds.
This Schottky diode operates reliably over a broad temperature range from -65°C to 150°C and supports peak non-repetitive forward surge currents up to 80 A, suitable for transient conditions in power circuits.
Typical applications include low voltage, high frequency inverters, free wheeling diodes, and polarity protection within industrial electronics, power supplies, and automotive systems.
The diode’s compact physical dimensions of 9.5 mm length and 5.3 mm diameter facilitate integration in space-constrained designs. This device features extremely low forward voltage for reduced power dissipation. Highly stable oxide passivated junction for long-term reliability.
Low stored charge enables fast switching speeds. Metal overlap contact geometry enhances performance in high frequency circuits. Marked polarity with cathode band aids correct installation. Epoxy molded case ensures durability and resistance to environmental factors.
Lightweight at approximately 1.1 gram simplifies thermal management. Explore the Schottky Diode category on EnvMart for similar high-efficiency rectifiers suited for diverse industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse voltage rating of this Schottky diode is 60 V.
This model has a continuous forward current capacity of 3 A.
It supports peak non-repetitive forward surge currents up to 80 A.
The operating temperature range for this diode is from -65°C to 150°C.
The diode has a length of 9.5 mm and a diameter of 5.3 mm.
This diode comes in a DO-201AD package type.
It weighs approximately 1.1 grams.
The maximum forward voltage drop is 1.08 V.
The peak reverse current is low at 600 μA.
The diode features an epoxy molded case, providing corrosion resistance.
The polarity is indicated by a cathode band marking.
Typical applications include low voltage, high frequency inverters and free wheeling diodes.
