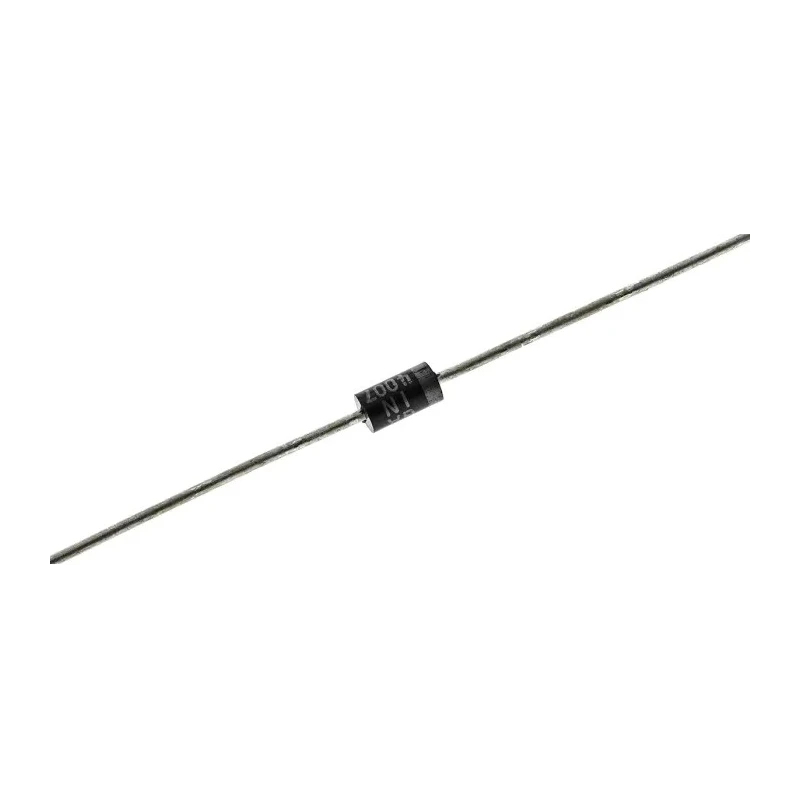

onsemi General Purpose Diode 1 kV 1 A 2-Pin DO-41 1N4007RLG

onsemi 1N4007RLG is a high-quality general purpose semiconductor diode designed for through-hole mounting in a DO-41 epoxy molded package. It supports a maximum continuous forward current of 1 ampere and can withstand a peak reverse repetitive voltage of 1 kilovolt, making it suitable for low power and general purpose rectification tasks in electronic circuits.

The diode features a single diode configuration with a cathode marked by a polarity band, assisting in proper circuit installation. The device has a maximum forward voltage drop of 1.1 volts and is capable of handling peak non-repetitive forward surge currents up to 30 amps, making it robust for transient surges.

Its compact physical dimensions of 2.7 mm diameter by 5.2 mm length contribute to easy integration into printed circuit boards. The epoxy molded casing ensures external corrosion resistance and stable performance under various environmental conditions. The diode operates efficiently over a wide temperature range from -65°C to 175°C, covering typical industrial and commercial electronics applications.

Typical usage includes high frequency inverters, free wheeling diodes, and polarity protection in both consumer and industrial electronic equipment. The terminal leads are designed for soldering with a maximum temperature rating of 260°C for 10 seconds, ensuring reliable mechanical and electrical connection.

Designed for standard recovery in low power applications. Epoxy molded case ensures corrosion resistance and durability. Cathode is indicated by a polarity band for easy identification. Operates reliably between -65°C to 175°C ambient temperatures.

Features a maximum forward voltage drop of 1.1 volts at rated current. Capable of handling peak non-repetitive forward surge current of up to 30 amperes. Terminal leads are readily solderable with a maximum lead temperature of 260°C for 10 seconds.

Compact dimensions with 2.7 mm diameter and 5.2 mm length optimize PCB space. Ideal for high frequency inverters, polarity protection, and free wheeling diode applications. Provides a low peak reverse current of 10 microamperes ensuring energy efficiency.
