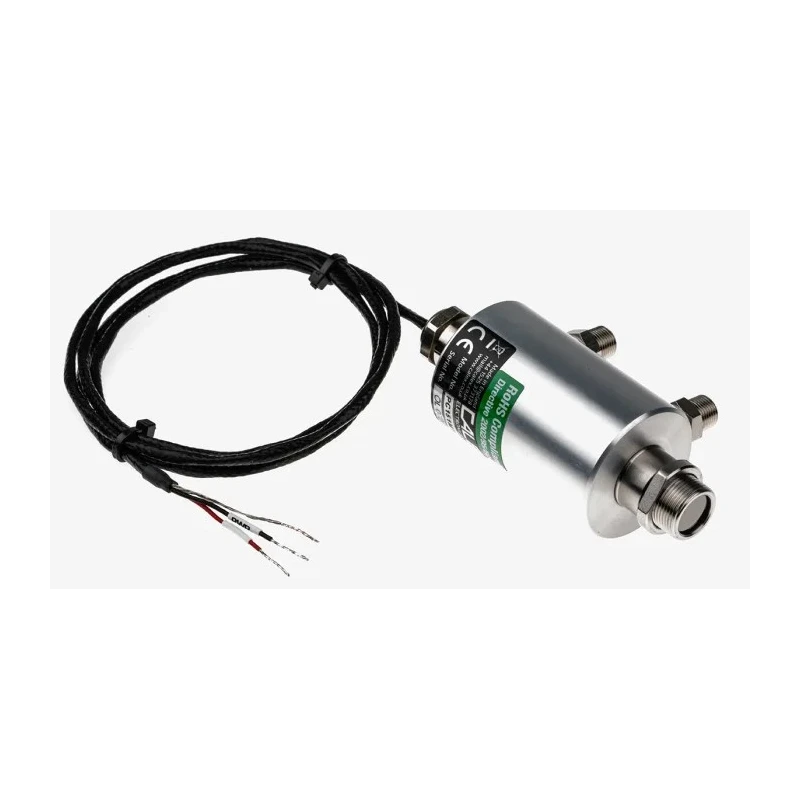

Calex Infrared Temperature Sensor 1 m, 0 °C to 250 °C PC151MT-0WJ

Calex PC151MT-0WJ Infrared Temperature Sensor is a high-quality, low-cost non-contact sensor designed for precise temperature measurement of inaccessible or moving objects ranging from 0 °C to 250 °C. The sensor uses PyroCouple technology ensuring a fast response time of 240 ms and excellent stability for industrial automation applications.

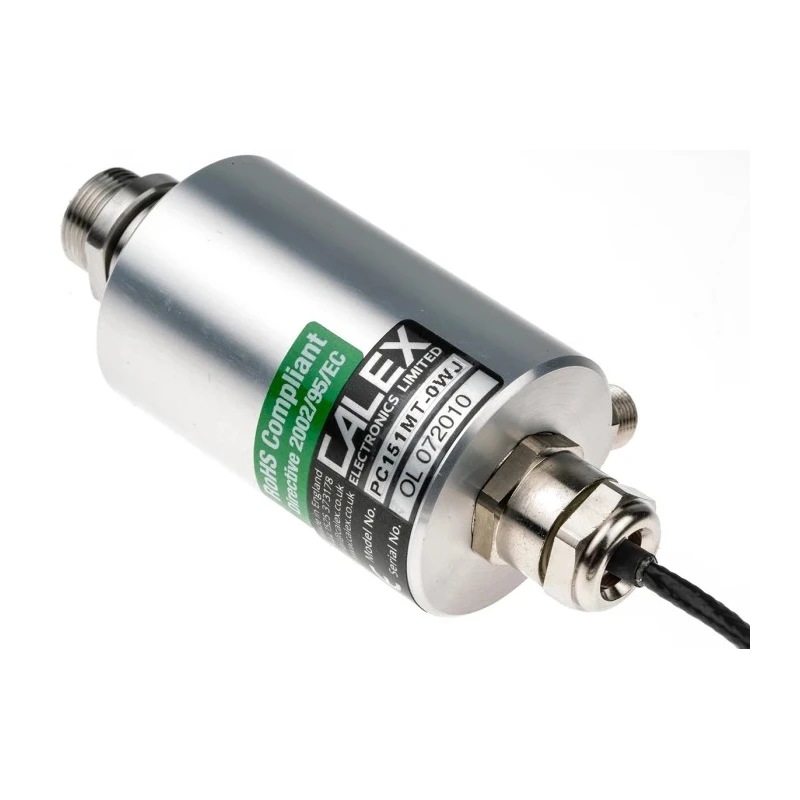

The sensing head features a rugged housing made of 316 stainless steel and aluminium, rated IP65 for protection against dust and water ingress, suitable for harsh environments. It includes an M16 x 1 mm mounting thread and is supplied with 1 meter-long prewired cables both for sensing head and output, facilitating quick and easy installation.

The sensor provides a fixed emissivity setting of 0.95, optimized for typical surface materials, and operates within a spectral range of 8 to 14 μm. It supports output options including two-wire 4-20 mA signals for straightforward temperature transmission and four-wire configurations providing additional internal temperature outputs for ambient monitoring, enhancing operational safety.

Operating up to a maximum ambient temperature of 70 °C and maximum supply voltage of 28 V, the sensor conforms to industrial EMC standards, making it reliable for manufacturing, HVAC, laboratory instruments, and various industrial uses.

The product originates from the United Kingdom, ensuring quality manufacturing standards. It is part of the PC series, designed to meet diverse temperature sensing needs with industrial-grade durability and accuracy.

High-performance PyroCouple sensing technology with fast 240 ms response time. 316 stainless steel and aluminium housing for durability and industrial use. Fixed emissivity of 0.95 ensures accurate readings for most surfaces.

IP65 rated sensing head providing protection against ingress. Output options include two-wire 4-20 mA or four-wire 0-50 mV and 4-20 mA signals. Suitable for industrial, automation, HVAC, and laboratory temperature sensing.

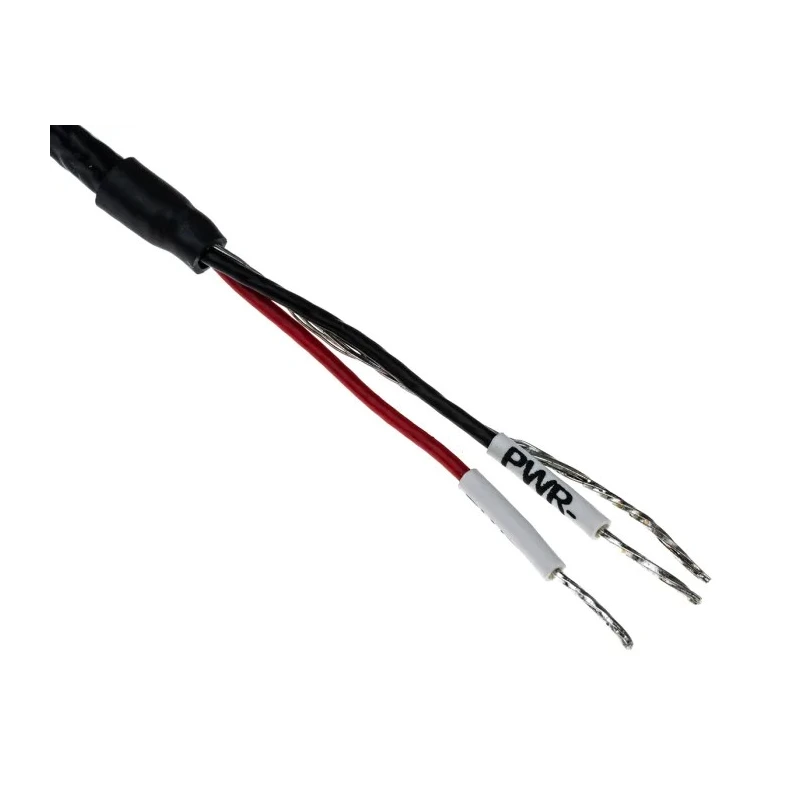

1 m prewired cables for both sensing head and output ease installation. Conforms to industrial EMC standards for reliable operation. M16 x 1 mm mounting thread enables secure sensor placement. Explore more Calex sensors and other industrial temperature sensing solutions in the EnvMart catalog for reliable and precise temperature measurement.
