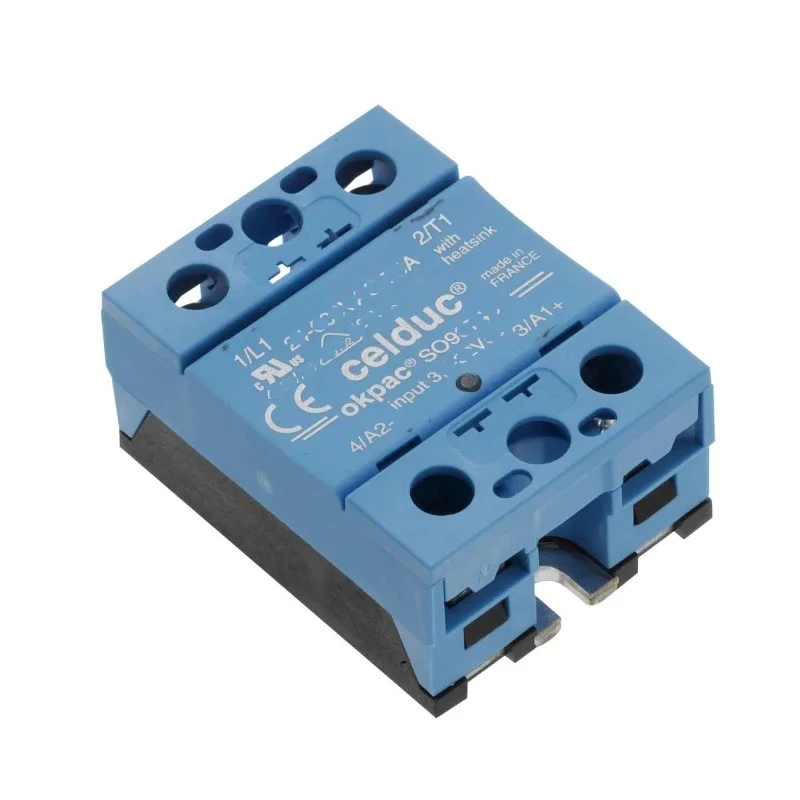

Celduc Solid State Relay SO942460, SO9 Series, 25 A Load, DIN Rail Mount, 280 Vrms Load, 32V Control

Celduc SO942460 Solid State Relay, part of the SO9 Series, offers a reliable solution for controlling single-phase electrical loads up to 25 A. Designed for DIN rail mounting, this relay accommodates a maximum load voltage of 280 Vrms and operates efficiently within a wide control voltage range of 3V to 32V dc. With its screw terminal connection and IP20 protection rating, it ensures safe and secure installation.

The relay utilizes TMS2 thyristor output technology to provide longevity and high immunity against electrical interference, thanks to voltage protection components on both input and output stages. Featuring a zero cross switching function, it minimizes electrical noise, enhancing system performance.

Operating temperature range spans from -55°C to 100°C, allowing usage in diverse industrial environments. The solid state relay has a low on-state resistance of 16 mΩ and a minimal off-state leakage current of 1 mA, ensuring energy efficiency. Visual status indication is provided by a green LED input display.

Compliance with multiple international standards, including UKCA, VDE, EAC, RoHS, CE, CSA, and cURus, endorses its quality and safety for industrial applications. Users should note that solid state relays of this type require mounting on a heatsink for proper thermal management. Instantaneous switching capability makes it suitable for precise load control.

This product is manufactured in France and is ideal for use in industrial automation, electrical panels, process control systems, and other demanding environments requiring reliable and silent switching solutions.

Supports a maximum load current of 25 A and maximum load voltage of 280 Vrms. Wide control voltage range from 20 to 265 Vac/dc with regulated control current. Advanced voltage protection and TMS2 technology thyristor output for durability.

Screw terminal type provides secure electrical connections. IP20 rated enclosure for basic protection against solid objects. Designed for DIN rail mounting to facilitate easy installation. Low on-state resistance for reduced power losses.

Complies with multiple international safety and quality standards. Requires heatsink mounting during operation to ensure effective heat dissipation. Explore our extensive range of Solid State Relays and electrical components at EnvMart for industrial and automation needs.
