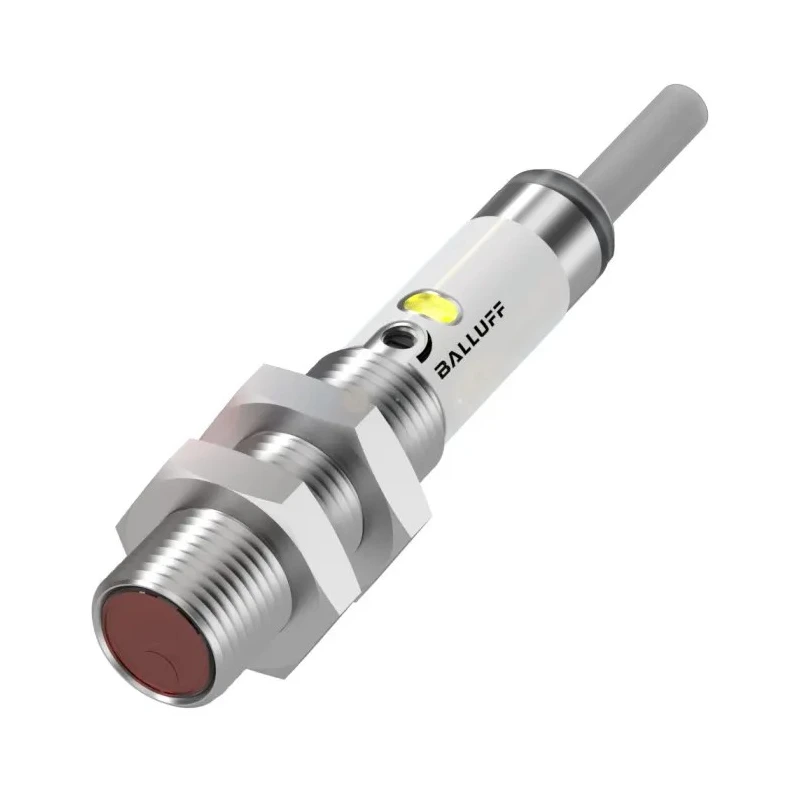

BALLUFF Diffuse Photoelectric Sensor Barrel Sensor 400 mm PNP Output IP67 BOS01ZH

The BALLUFF BOS01ZH is a diffuse Photoelectric Sensor designed as a barrel sensor with a detection range of 400 mm. It utilizes infrared light to detect objects by sensing contrast changes in surface material, color, and texture. The transmitter and receiver are integrated into a single compact unit with a diameter of 12 mm and length of 60 mm, enabling easy mounting and alignment.

Equipped with a PNP normally open output, this sensor operates at a maximum DC voltage of 30V and supports currents up to 100mA. Its nickel plated brass housing ensures robust protection and durability, classified under IP67 for water and dust resistance, making it suitable for demanding industrial environments.

The operating temperature range spans from -5°C to 55°C, allowing use in diverse applications with varying ambient conditions. Mounting is facilitated via a nut mount design for secure installation.

BALLUFF BOS01ZH complies with multiple industrial standards, including CE, cULus, EAC, WEEE, and IEC 60947-5-2 certifications, guaranteeing reliability and safety in use.

Common applications include automation systems, manufacturing lines, process controls, and quality inspection tasks where precise detection of object presence or absence based on surface properties is required.

This sensor detects objects based on contrast differences in surface, color, and material. Infrared light source enhances detection accuracy and range. Compact barrel housing with nickel plated brass construction for durability.

PNP normally open output simplifies interface with control systems. IP67 rated for dust and water resistance, suitable for harsh industrial environments. Operational temperature range from -5°C to 55°C supports diverse operating conditions.

Nut mount design provides straightforward installation. Certified to CE, cULus, EAC, WEEE, and IEC 60947-5-2 safety and quality standards. Explore the extensive BALLUFF sensor range and find reliable automation components at EnvMart for your industrial, manufacturing, or laboratory sensor needs.
